VXBR2F32-3/4 Compact Fluorescent Wall Fixture

The VXBR2F32-3/4 by RAB Lighting is a durable wall-mounted lighting fixture designed for compact fluorescent lamps, providing efficient and reliable lighting solutions for commercial and industrial applications. This fixture is suitable for wet locations and ideal for electrical distributors and switchgear suppliers seeking robust wire and cable compatible lighting solutions. It features a die cast aluminum housing with a clear prismatic glass globe for low glare and even light distribution, making it a practical choice for various lighting installations requiring weatherproof and long-lasting performance.

Specifications

• Input Wattage: 32 watts
• Lumens: 2,400 lumens
• Efficacy: 75 lumens per watt
• Hub Size: 3/4 inches
• Construction Type: Die Cast Aluminum
• Product Weight: 7.9 lbs
• Compliance: UL Listed for wet locations, UL Standard 1598
• Socket: HID glazed porcelain 4kv pulse rated with nickel plated screw shell and spring contacts; CFL white thermoplastic with integral clips for lamp retention
• Ballast Minimum Starting Temperature: 0°F

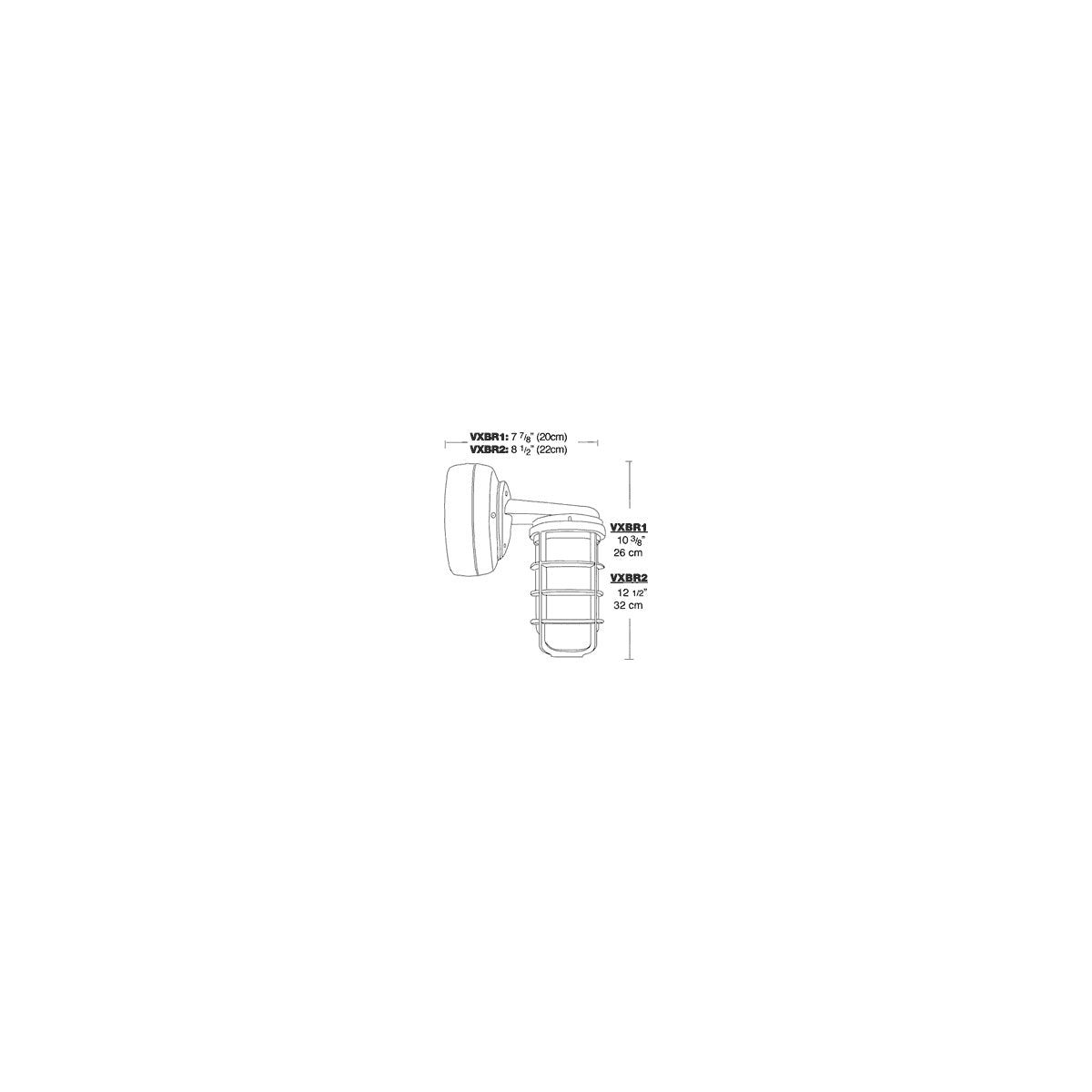

• Dimensions: 7 7/8" depth, 10 3/8" height, 12 1/2" length (approximate)

Features

• Weatherproof ballast box
• Die cast aluminum housing with stainless steel screws for superior durability
• Clear heat-resistant prismatic glass globe standard for low glare and even light distribution
• Set screw guard securely holds globe in place
• Close-up plugs compatible with Phillips or slotted screwdrivers for easy installation
• High temperature silicone internal gaskets ensure weather resistance
• Ballast housing mounts to any standard junction box
• Suitable for lamp base up installation outdoors

Downloads & Links

• Instructions
• Spec Sheet
