VXBR1F13 Compact Fluorescent Wall Fixture

The VXBR1F13 is a durable compact fluorescent wall-mounted lighting fixture designed for commercial and industrial applications. Manufactured by RAB, this fixture features a die cast aluminum housing with a clear prismatic glass globe for low glare and even light distribution. It is suitable for wet locations and mounts securely to a junction box or can be wired inside the housing, making it an ideal solution for electrical distributors and lighting solutions providers requiring reliable and weatherproof outdoor lighting.

Specifications

• Manufacturer Part #: VXBR1F13
• Input Wattage: 16 watts
• Lumens: 900 lumens
• Efficacy: 56 lumens per watt
• Construction Type: Die Cast Aluminum
• Weight: 5.8 lbs
• Color: Natural
• Compliance: UL Listed for wet locations, UL Standard 1598
• Socket: HID glazed porcelain 4kv pulse rated with nickel-plated screw shell and spring contacts; CFL white thermoplastic with integral clips for lamp retention
• Ballast Type: Electronic HPF QT
• Operating Voltage: Factory wired for 120V; multi-tap units available for 120V, 208V, 240V, 277V
• Ballast Minimum Starting Temperature: 0°F

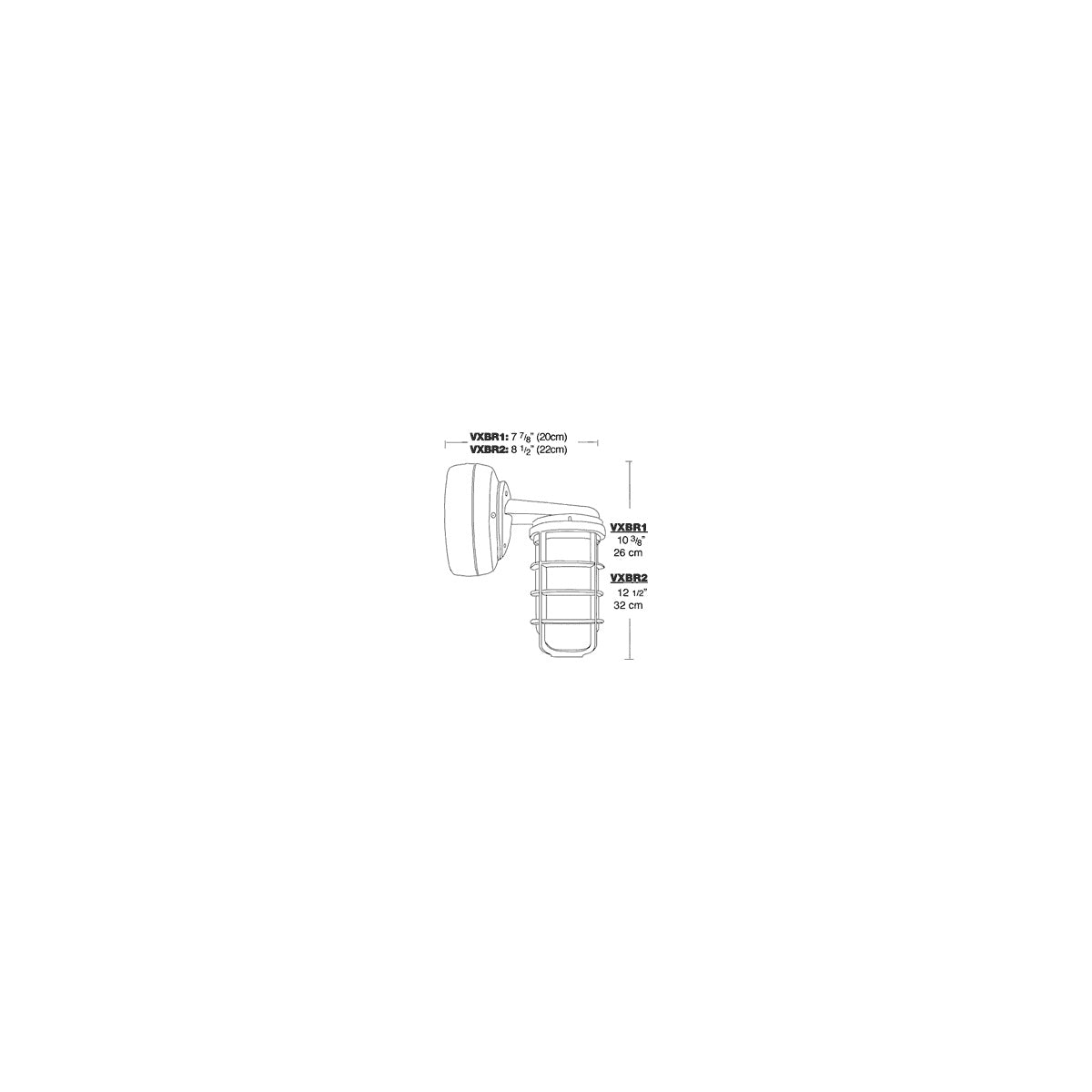

• Dimensions: 7 7/8" (20 cm) width, 10 3/8" (26 cm) height

Features

• Weatherproof ballast box suitable for outdoor use
• Die cast aluminum housing and guard for superior durability
• All stainless steel hardware resists corrosion
• Clear heat-resistant prismatic glass globe for even light distribution and low glare
• Set screw guard securely holds the globe in place
• Close-up plugs compatible with Phillips or slotted screwdrivers for easy installation
• High temperature silicone internal gaskets ensure weatherproof sealing
• Ballast housing mounts to any standard junction box
• Suitable for lamp base up installation only when used outdoors
