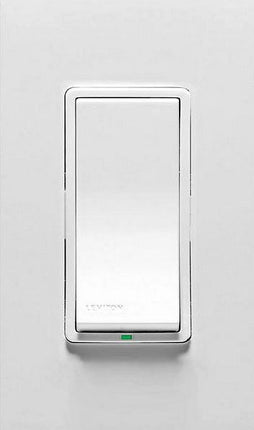

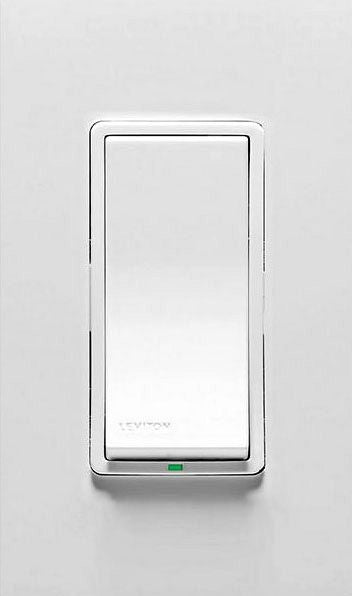

Vizia + 120VAC Matching Switch Remote – Multi-location Lighting Control

The Leviton Vizia + 120VAC Matching Switch Remote is designed for multi-location lighting control applications, compatible with 120VAC dimmers and fan speed controls. Ideal for electrical distributors and lighting solutions providers, this device supports 3-way or up to 5-location switching setups with an integrated LED locator. It is suitable for use in residential and commercial wire and cable installations where coordinated lighting control is required.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: VP0SR-1LZ
• Color: Ivory (includes white face assembled on device, plus ivory and light almond faces)
• LED Color: Green
• Voltage: 120VAC, 60Hz
• Application: 3-way or up to 5-location multi-location switching
• Weight: 0.3700 lbs
• Country of Origin: China
• UPC: 078477389164

Features

• Compatible with Vizia + 120VAC dimmers and fan speed controls for coordinated multi-location switching
• Includes LED locator light to assist in locating the switch in low-light conditions
• Supports up to 4 matching remotes with LEDs or up to 9 coordinating remotes without LEDs on a single multi-location circuit
• Includes interchangeable faceplates in white (installed), ivory, and light almond for flexible aesthetic matching
• Designed for use with copper or copper-clad wire; CO/ALR or CU/AL marking required for aluminum wiring
• Maximum wire length between dimmer and remotes: 300 feet (90 meters)
• Installation requires a neutral wire at the remote location for proper operation
• Suitable for incandescent and magnetic low voltage applications
• Complies with FCC Class B digital device requirements for residential use
• Five-year limited warranty from Leviton

Downloads & Links

• Instruction Sheet VP00R VP0SR
• product-cleaning-instructions
• PK-93461-10-05-2D
• Leviton-Sensors-Solution-Sheet
