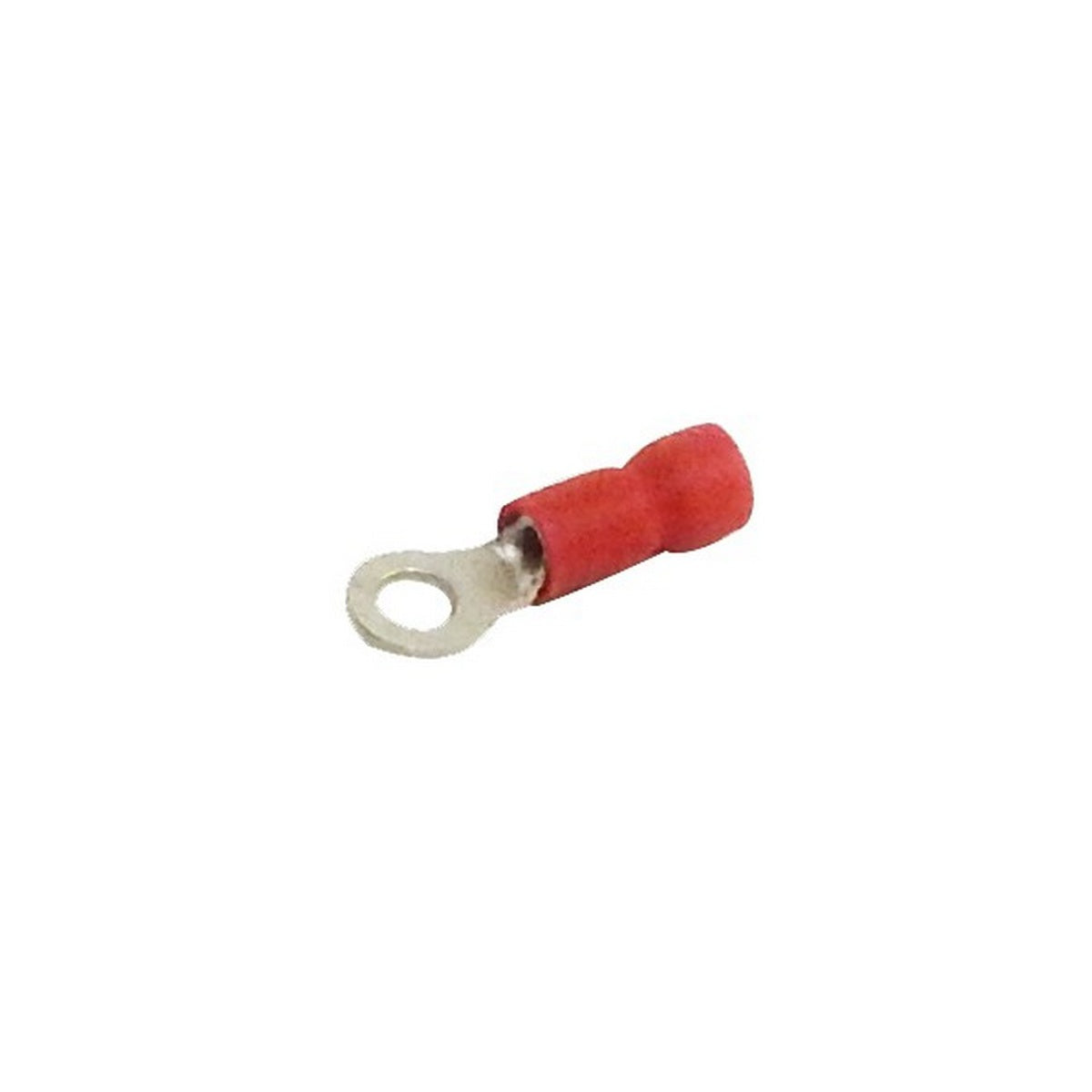

Vinyl Insulated Ring Terminals 25 Pack - 22-16 Wire, #10 Stud | Electrical Wire Terminals

This product is a pack of vinyl insulated ring terminals designed for secure electrical connections in wire and cable assemblies. Suitable for wire sizes 22-16 AWG and compatible with #10 studs, these terminals are ideal for use by electrical distributors and switchgear suppliers requiring reliable and corrosion-resistant terminations in lighting solutions and general electrical installations.

Specifications

• Material: Copper Tubular/Copper Plate
• Finish: Electro-Tin Plated
• Insulation Type: Vinyl
• Color: Red
• Wire Range: 22-16 AWG
• Stud Size: #10
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 600 V @ 105¬∞C
• Flammability Rating: UL94V-0
• Amp Rating: 18 Amps
• Length: 0.866 inches (22.0 mm)
• Stock Thickness: 0.03 inches (0.75 mm)
• Bag Quantity: 25 terminals per pack
• Certifications: UL, cUL, RoHS Compliant

Features

• Color-coded vinyl insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Easy entry funnel type insulation eliminates strand hang-up, improving crimping rates and termination reliability
• Wire range stamped on the surface for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared sleeve position ensure excellent contact and mechanical stress relief at insulation and barrel junction
• Packed in zip-lock plastic bags with punched hole for pegboard hanging

Downloads & Links

• Spec Sheet
