Vinyl Insulated Ring Terminals 25 Pack - 22-16 Wire, 1/4" Stud - Electrical Wire Terminals

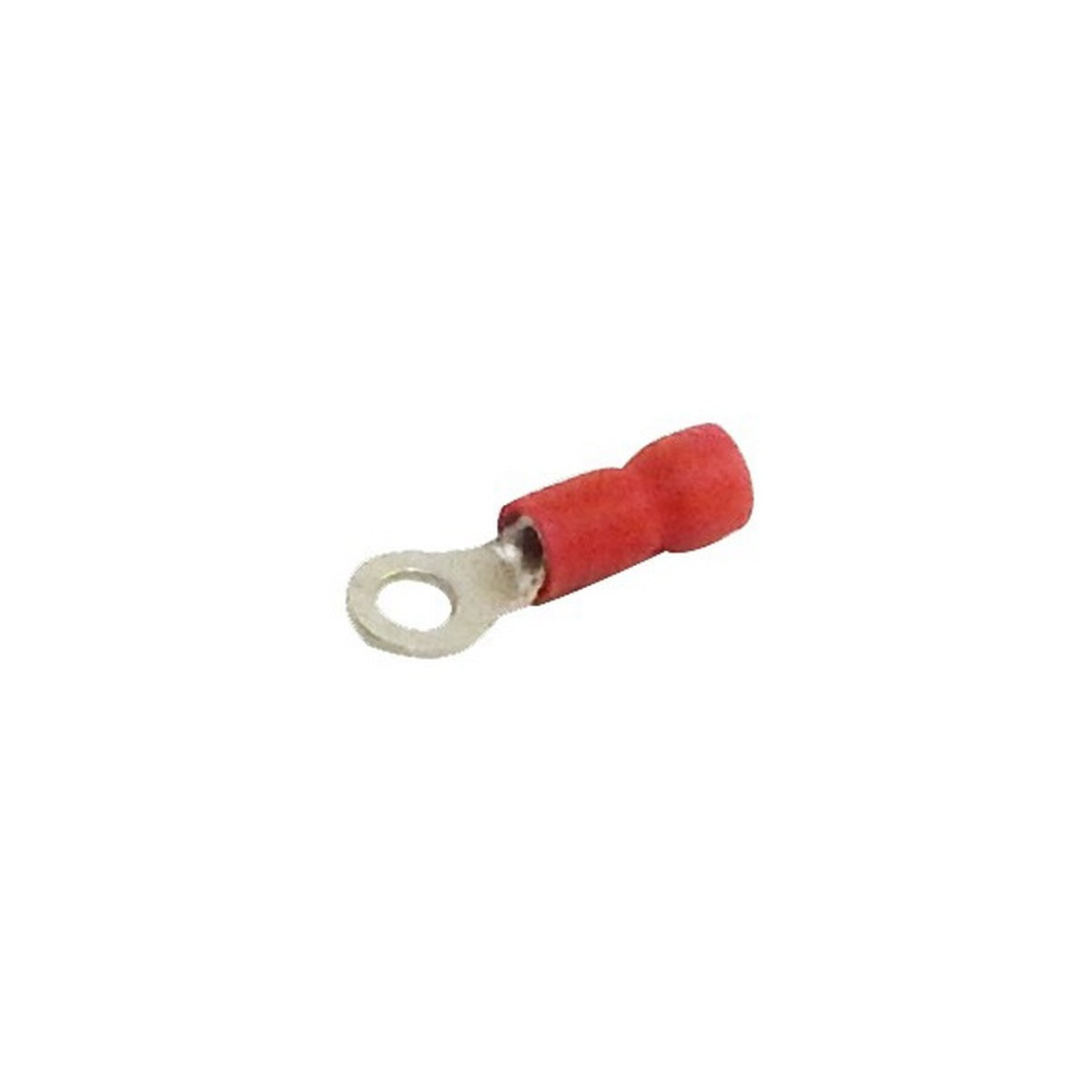

This pack of vinyl insulated ring terminals is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, these terminals are suitable for use by electrical distributors and switchgear suppliers requiring reliable and corrosion-resistant wiring solutions. The terminals feature a red vinyl insulation for easy identification and accommodate wire sizes 22-16 AWG with a 1/4" stud size, ensuring compatibility with a range of electrical systems.

Specifications

• Material: Copper Tubular/Copper Plate
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Stud Size: 1/4"
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 600 V @ 105¬∞C
• Flammability Rating: UL94V-0
• Amp Rating: 18 Amps
• Product Weight: 0.0040 lbs
• Dimensions (L x D x D1 x D2 x E x F x W x T in inches): 1.102 x 0.157 x 0.067 x 0.252 x 0.441 x 0.433 x 0.457 x 0.03
• Packaging: 25 terminals per bag
• Certifications: UL, cUL, RoHS Compliant

Features

• Color coded vinyl insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plated surface provides corrosion resistance
• Easy entry funnel type insulation reduces strand hang-up and improves crimping reliability
• Wire range stamped on surface for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared sleeve position enhance contact and mechanical stress relief at insulation and barrel junction
• Packed in zip lock plastic bags with punched hole for pegboard hanging

Downloads & Links

• Spec Sheet
