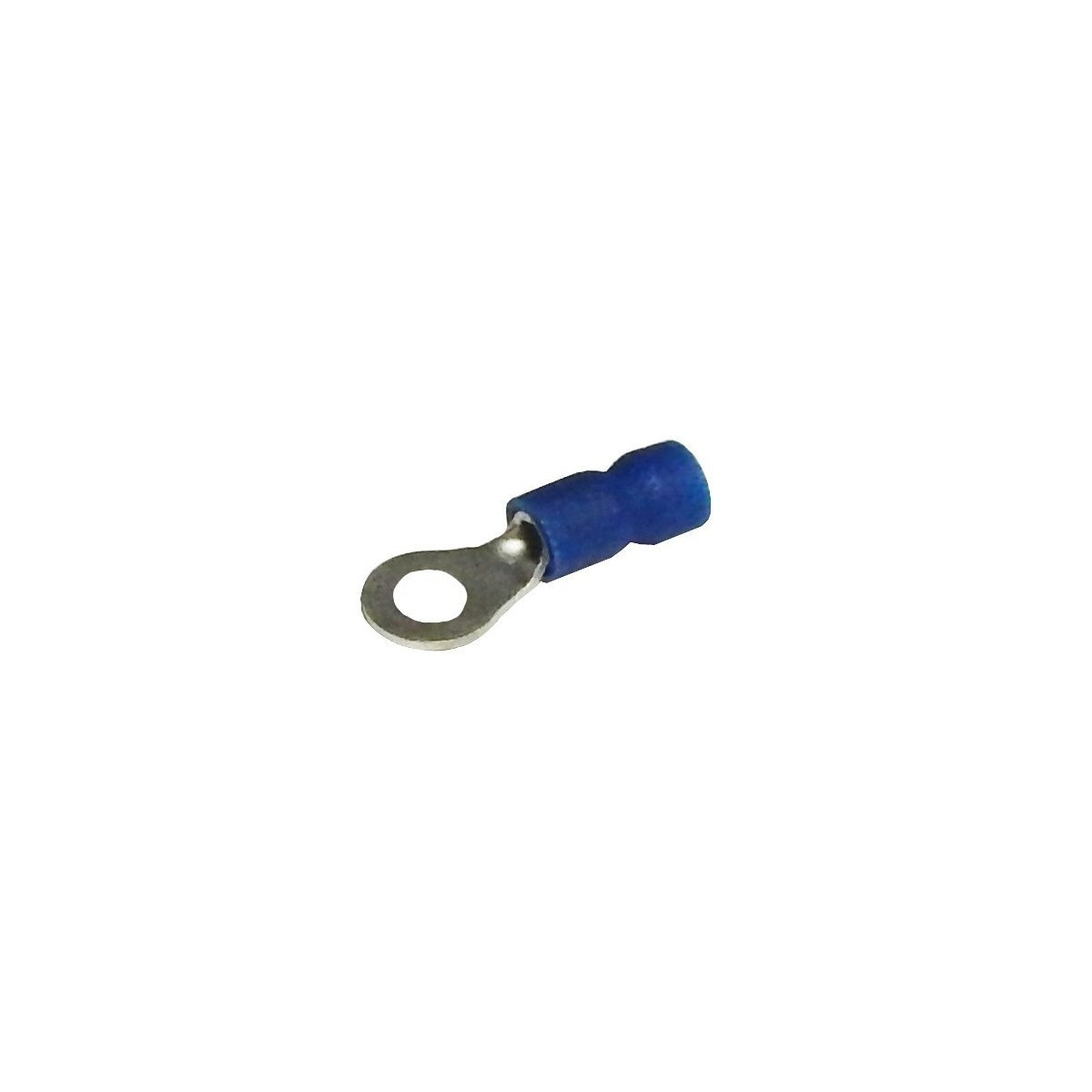

Vinyl Insulated Ring Terminals 25 Pack - 16-14 Wire, #6 Stud | Electrical Wire Terminals

Vinyl Insulated Ring Terminals designed for secure wire connections in electrical distribution and lighting solutions. Manufactured from high strength copper alloy with electro-tin plating for corrosion resistance, these terminals support 16-14 AWG wire sizes and feature a #6 stud size. Suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable termination components.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Vinyl
• Finish: Electro-Tin Plated
• Color: Blue
• Wire Range: 16-14 AWG
• Stud Size: #6
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 600 V @ 105¬∞C
• Flammability Rating: UL94V-0
• Amp Rating: 30 Amps
• Dimensions (L x D x D1 x D2 x E x F x W x T in inches): 0.823 x 0.177 x 0.091 x 0.146 x 0.453 x 0.248 x 0.26 x 0.031
• Bag Quantity: 25
• Certifications: UL, cUL, RoHS Compliant

Features

• Color coded blue vinyl insulation for easy identification
• Easy entry funnel type insulation eliminates strand hang-up, improving crimping rates and termination reliability
• Wire range stamped on surface for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent electrical contact and mechanical stress relief
• Packed in Zip Lock plastic bags with punched hole for pegboard hanging

Downloads & Links

• Spec Sheet
