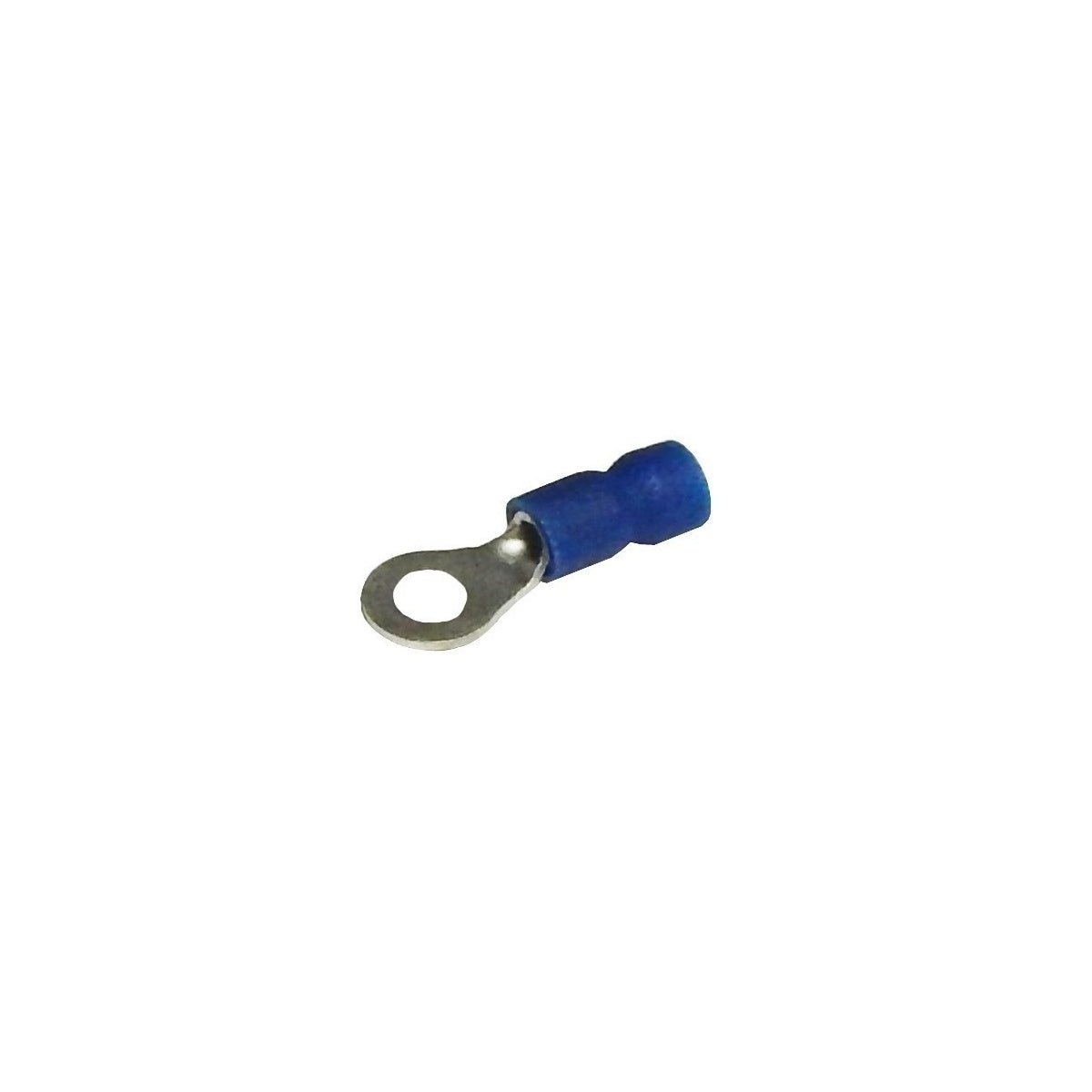

Vinyl Insulated Ring Terminals 25 Pack - 16-14 Wire, 5/16" Stud - Electrical Wire Terminals

These vinyl insulated ring terminals are designed for secure electrical connections in wire and cable assemblies. Manufactured by Morris Products, they are suitable for use by electrical distributors and switchgear suppliers requiring reliable wire termination solutions. The terminals accommodate 16-14 AWG wire and feature a 5/16" stud size, making them ideal for various electrical and lighting applications.

Specifications

• Material: Copper Tubular/Copper Plate
• Finish: Electro-Tin Plated
• Color: Blue
• Insulation Type: Vinyl
• Wire Range: 16-14 AWG
• Stud Size: 5/16"
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 600 V @ 105¬∞C
• Flammability Rating: UL94V-0
• Amp Rating: 30 Amps
• Stock Thickness: 0.031"
• Length: 1.114" (28.3 mm)
• Bag Quantity: 25
• Certifications: UL, cUL, RoHS Compliant

Features

• Color-coded vinyl insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plated surface provides corrosion resistance
• Easy entry expanded insulation reduces strand hang-up and improves crimping reliability
• Wire range stamped on the terminal for quick identification
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared sleeves enhance electrical contact and mechanical stress relief
• Packed in zip lock plastic bags with punched holes for pegboard hanging

Downloads & Links

• Spec Sheet
