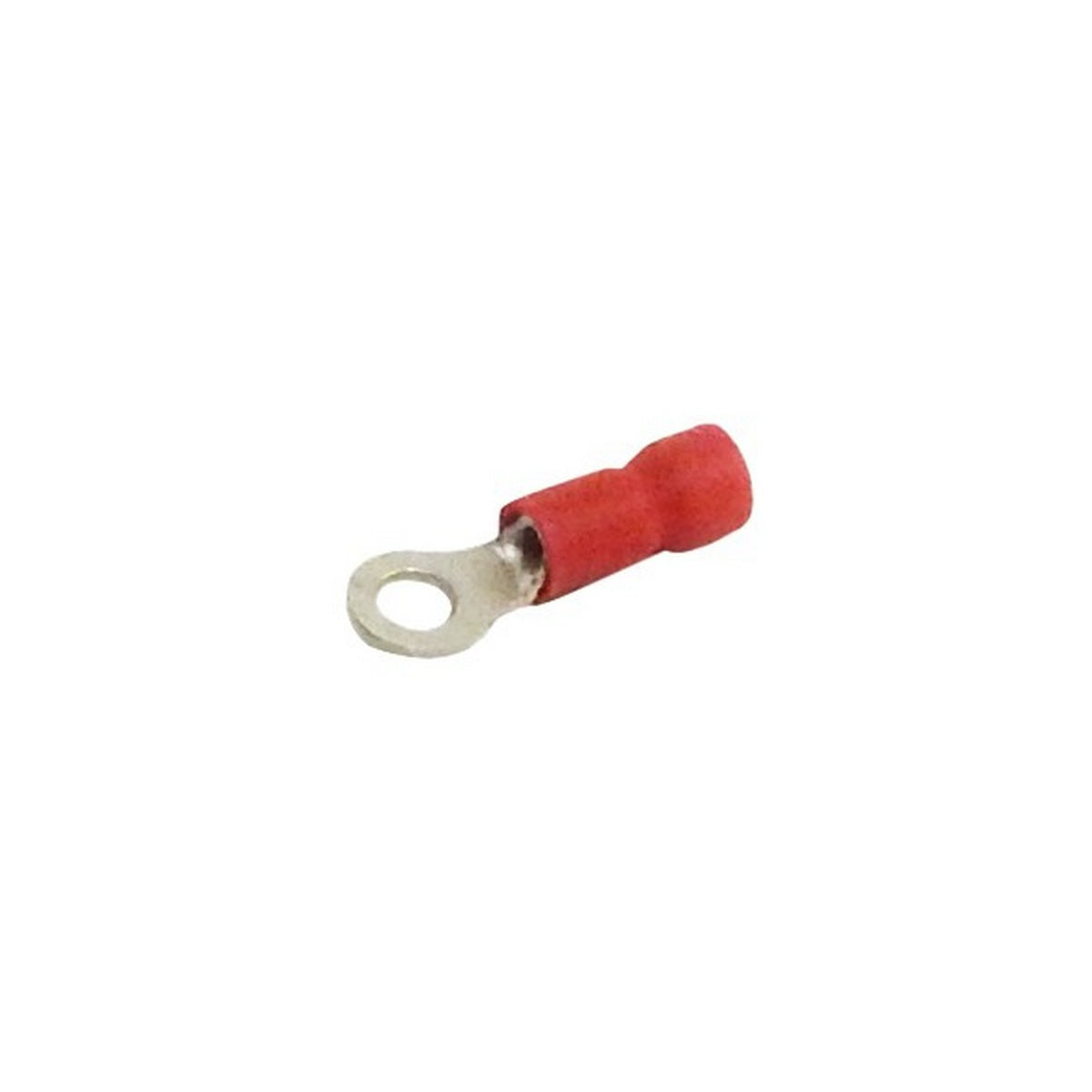

Vinyl Insulated Ring Terminals - 22-16 Wire, #6 Stud

Vinyl Insulated Ring Terminals designed for secure electrical connections in wire and cable applications. Manufactured from high strength copper alloy with electro-tin plating for corrosion resistance, these terminals provide reliable terminations suitable for electrical distributors and switchgear suppliers. The red vinyl insulation offers easy identification and mechanical stress relief, making these terminals ideal for lighting solutions and general electrical wiring.

Specifications

• Material: Copper
• Insulation Type: Vinyl
• Finish: Electro-tin plated
• Color: Red
• Wire Range: 22-16 AWG
• Stud Size: #6
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 22 AWG - 9 Amps
• Amp Rating: 20 AWG - 12 Amps
• Amp Rating: 18 AWG - 17 Amps
• Amp Rating: 16 AWG - 18 Amps
• Dimensions (L x W x D): 0.811" x 0.26" x 0.157"

Features

• Color coded insulation for easy identification
• Manufactured from high strength copper alloy
• Electro-tin plated for corrosion resistance
• Easy entry expanded insulation eliminates strand ‚ÄúHang Up‚Äù for improved crimping and termination reliability
• Wire range stamped on surface for clear interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent contact and mechanical stress relief at insulation and barrel junction

Downloads & Links

• Spec Sheet
