Vinyl Insulated Ring Terminals - 22-16 Wire, 5/16" Stud Electrical Connector

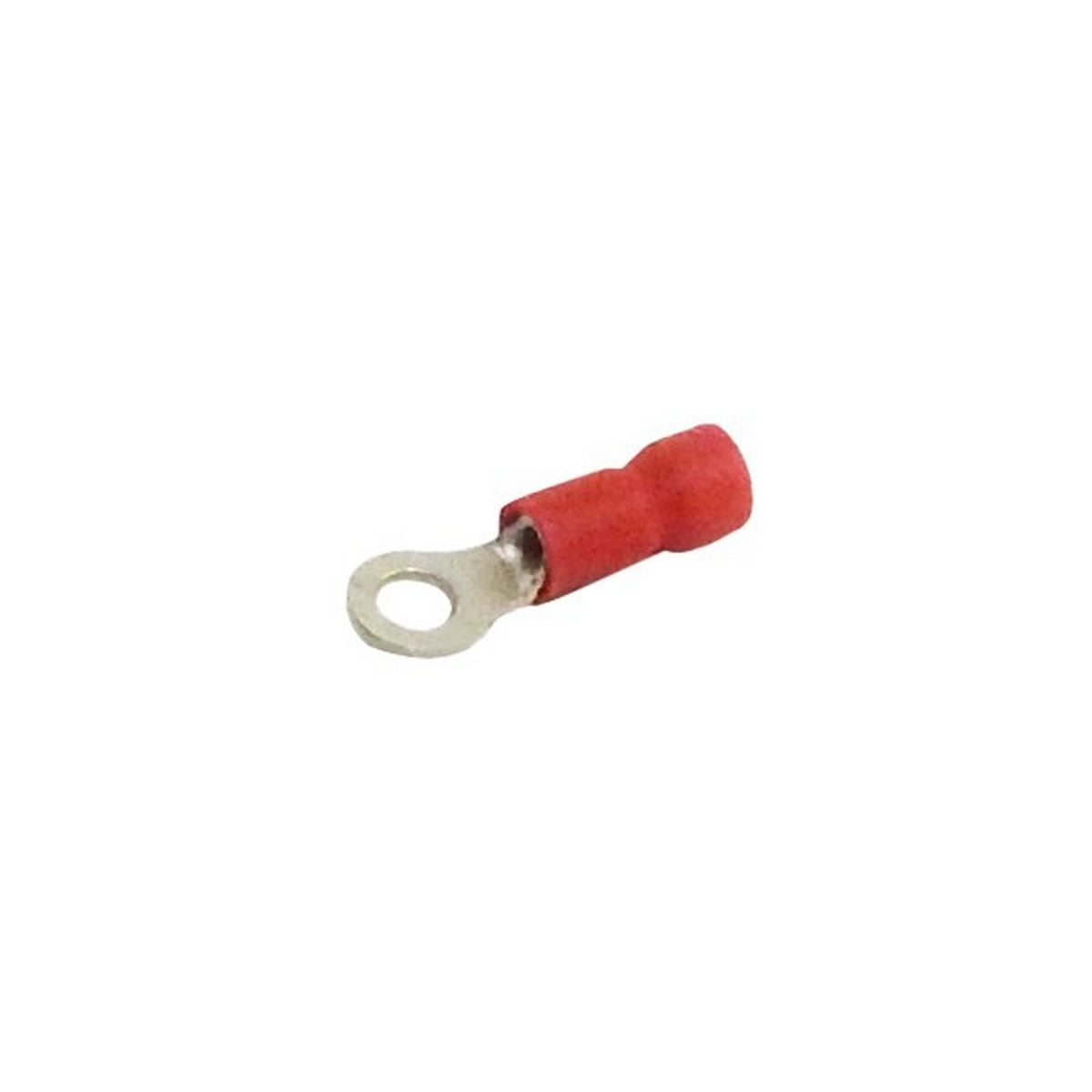

This vinyl insulated ring terminal is designed for secure and reliable wire termination in electrical distribution and lighting solutions. Manufactured by Morris Products, it supports wire sizes 22-16 AWG and fits a 5/16" stud, making it suitable for a variety of wire and cable applications within switchgear and electrical systems. The terminal features corrosion-resistant electro-tin plated copper construction and color-coded insulation for easy identification.

Specifications

• Material: Copper
• Insulation Type: Vinyl
• Color: Red
• Wire Range: 22-16 AWG
• Stud Size: 5/16"
• Finish: Electro-tin plated
• Temperature Rating: 105°C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps
• Dimensions (inches): Length 1.102, Width 0.457, Depth 0.157
• Product Weight: 0.0030 lbs

Features

• Color-coded insulation for easy wire gauge identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Easy entry expanded insulation reduces strand hang-up and improves crimping reliability
• Wire range stamped on surface for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared sleeve position enhance contact and mechanical stress relief at insulation and barrel junction
• Packed in Zip Lock plastic bags with punched hole for pegboard storage

Downloads & Links

• Spec Sheet
