Vinyl Insulated Ring Terminals - 22-16 Wire, #10 Stud for Electrical Connections

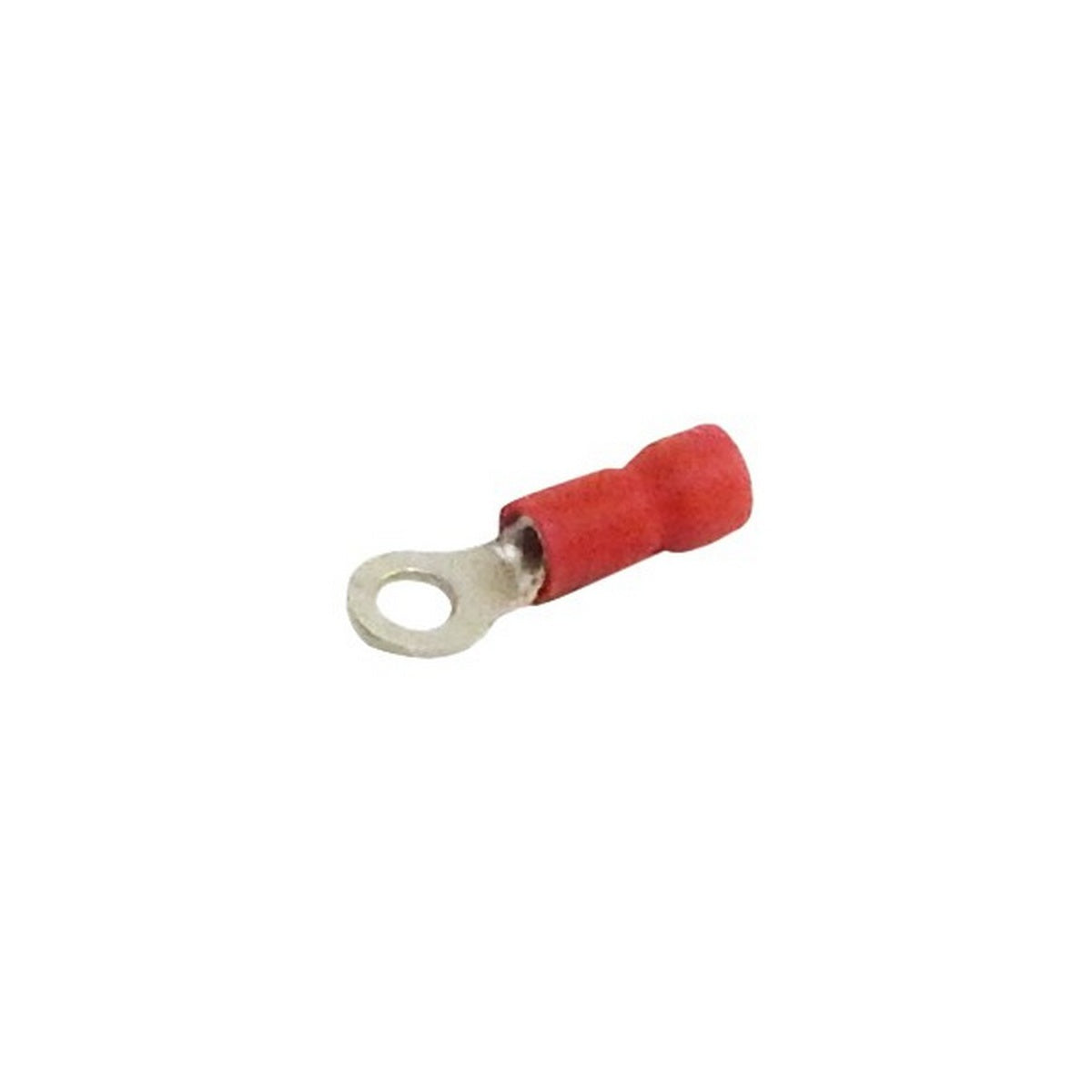

Vinyl Insulated Ring Terminals designed for secure wire termination in electrical distribution and lighting solutions. These terminals accommodate 22-16 AWG wire sizes and feature a #10 stud size, making them suitable for wire and cable installations requiring reliable mechanical and electrical connections. Manufactured from copper with vinyl insulation, they provide corrosion resistance and ease of identification for switchgear suppliers and electrical distributors.

Specifications

• Material: Copper
• Insulation Type: Vinyl
• Color: Red
• Wire Range: 22-16 AWG
• Stud Size: #10
• Finish: Electro-tin plated
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps
• Length: 0.866 inches (22.0 mm)
• Width: 0.315 inches (8.0 mm)
• Depth: 0.157 inches (4.0 mm)

Features

• Color-coded insulation for easy wire gauge identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plated surface for enhanced corrosion resistance
• Easy entry expanded insulation reduces strand hang-up, improving crimping reliability
• Wire range stamped on surface for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared sleeve design provide excellent contact and mechanical stress relief at insulation and barrel junction
• Packed in zip lock plastic bags with punched hole for pegboard display
• UL, cUL, and RoHS certified for compliance and safety

Downloads & Links

• Spec Sheet
