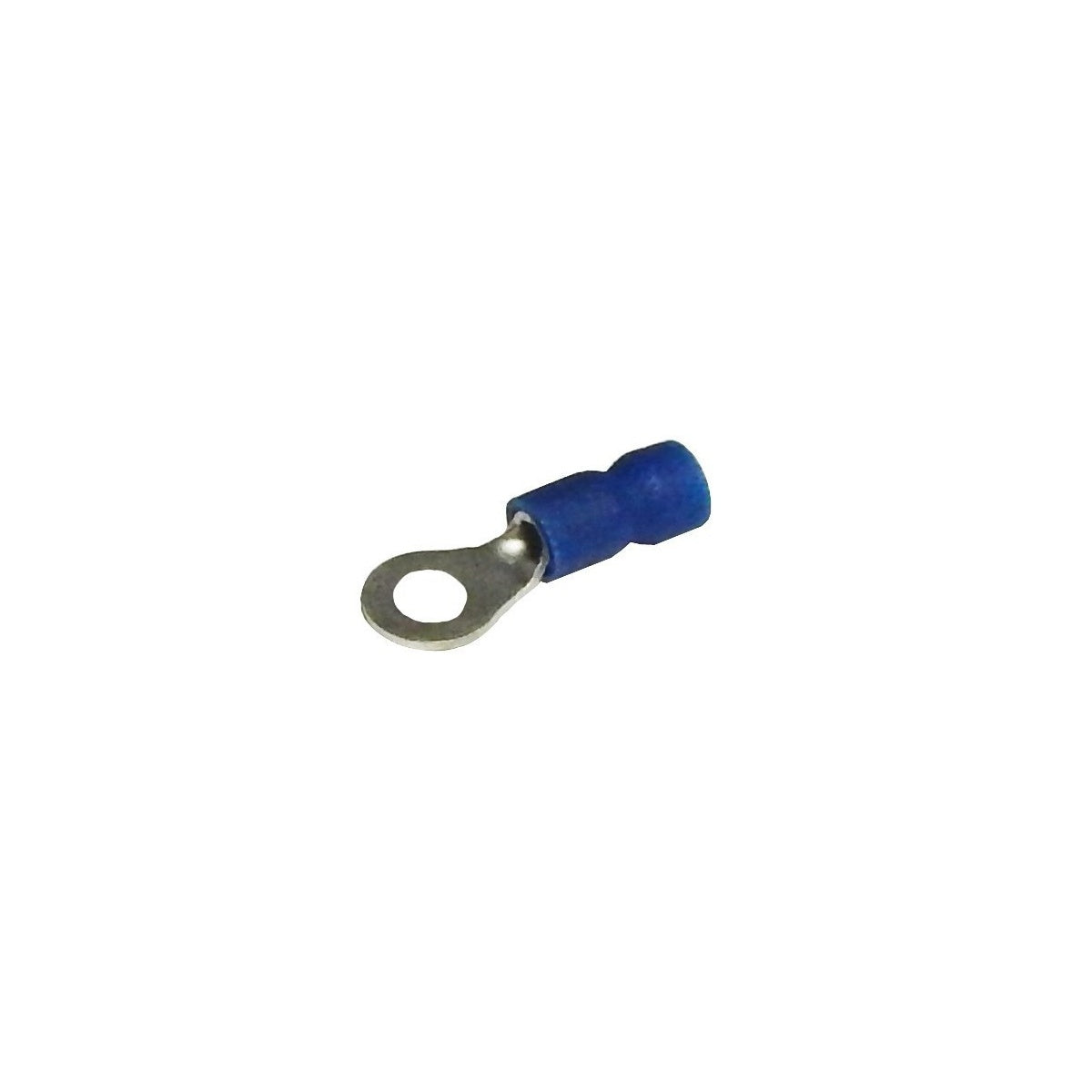

Vinyl Insulated Ring Terminals - 16-14 Wire, 1/4" Stud | Electrical Wire Terminals

Vinyl Insulated Ring Terminals designed for secure electrical connections in wire and cable applications. These terminals provide reliable connectivity for 16-14 AWG wire sizes and feature a 1/4" stud size, suitable for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant wiring solutions.

Specifications

• Material: Copper
• Insulation Type: Vinyl
• Finish: Electro-tin plated
• Color: Blue
• Wire Range: 16-14 AWG
• Stud Size: 1/4"
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 16 AWG - 18 Amps, 14 AWG - 30 Amps
• Dimensions (inches): Length 1.114, Width 0.472, Depth 0.177
• Product Weight: 0.0040 lbs
• Certifications: UL, cUL, RoHS Compliant

Features

• Color-coded insulation for easy wire gauge identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Easy entry expanded insulation reduces strand hang-up and improves crimping reliability
• Wire range stamped on the terminal surface for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared sleeve design enhance contact and mechanical stress relief
• Packaged in zip lock plastic bags with punched hole for pegboard hanging
