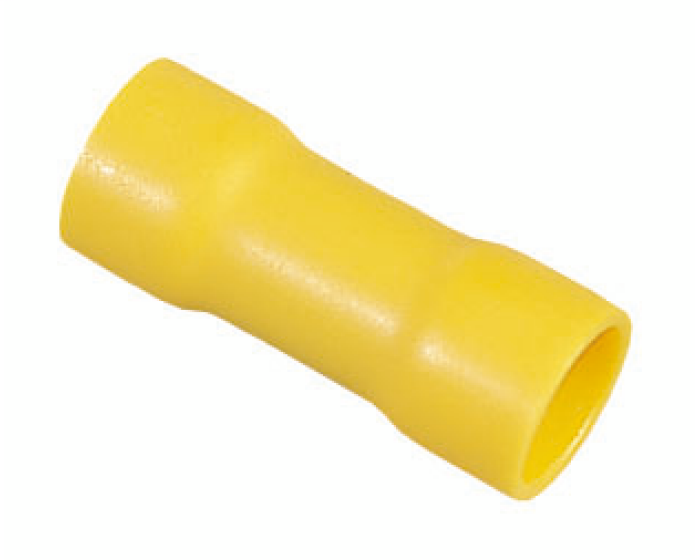

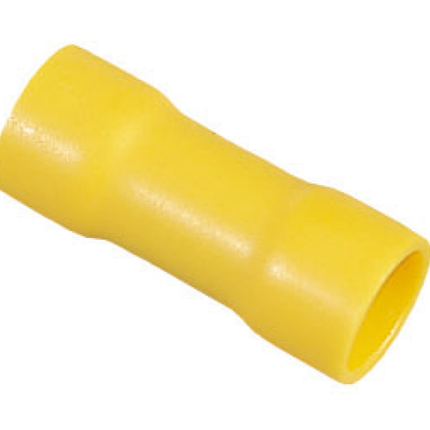

Vinyl Insulated Parallel Splice 12-10 AWG – Electrical Wire Connector

The Vinyl Insulated Parallel Splice is designed for reliable electrical wire connections, suitable for wire ranges from 12 to 10 AWG. This product is ideal for electrical distributors and lighting solutions providers requiring durable and efficient wire and cable termination components. Manufactured by IDEAL Industries, it supports applications in various electrical systems where secure splicing is needed.

Specifications

• Wire Range: 12-10 AWG (4.0-6.0 mm²)
• Maximum Wire Insulation Diameter: 0.248 in. (6.3 mm)
• Dimensions (Length x Diameter): 0.591 in. x 0.134 in. (15.0 mm x 3.4 mm)
• Material: Brass
• Finish: Tin-plated
• Product Weight: 0.2000 lbs
• Manufacturer Part Number: 83-9371
• Voltage Rating: 600 Volts max.
• Temperature Rating: 75°C max.

Features

• Vinyl insulation provides electrical protection and durability.
• Color-coded insulation for easy wire size identification.
• Constructed from tin-plated brass for corrosion resistance and reliable conductivity.
• Supplied in durable plastic packaging for convenient storage and handling.
• UL Listed for wire connectors, ensuring compliance with safety standards.
