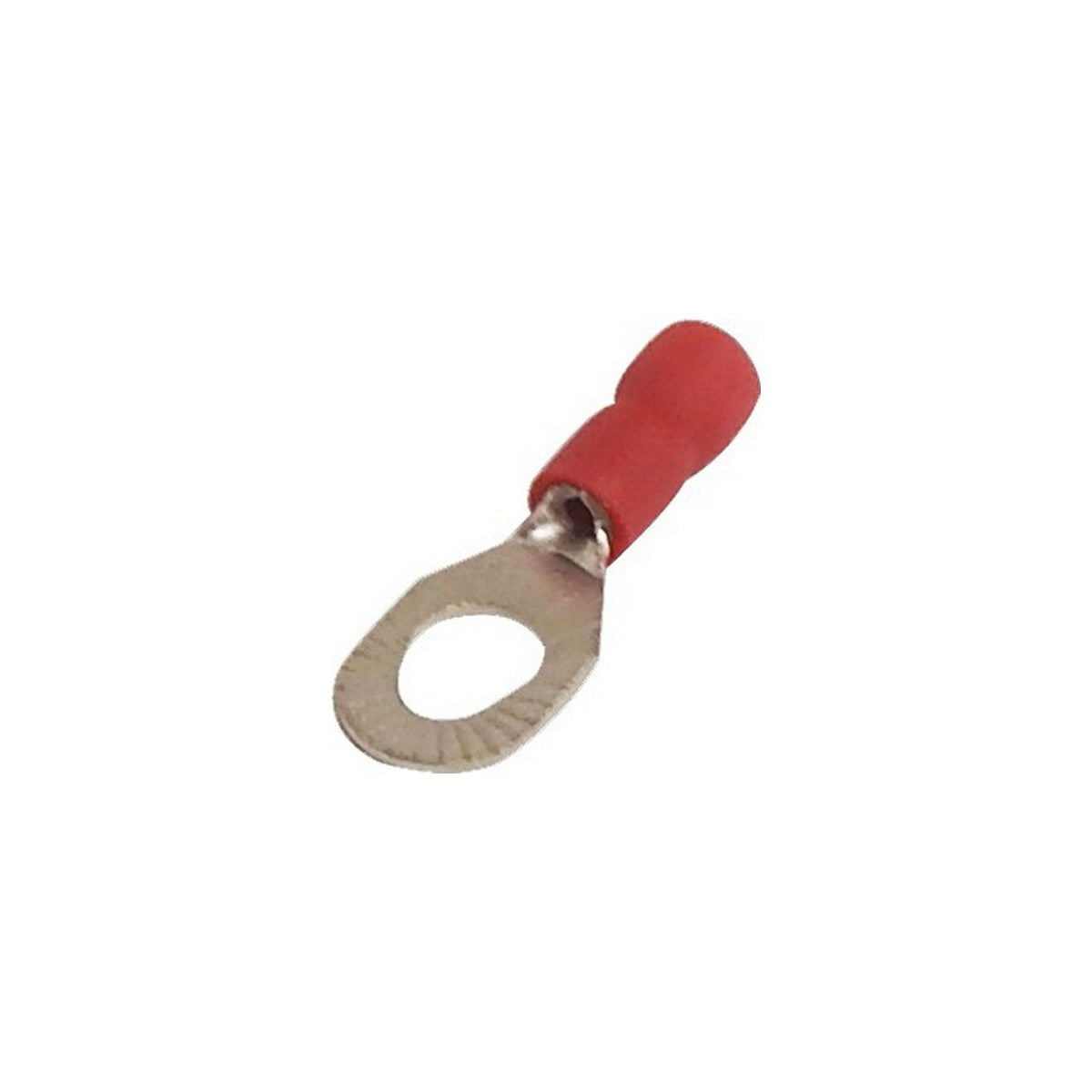

Vinyl Insulated Multiple-Stud Ring Terminals - 22-16 Wire, #6-#10 Stud Electrical Connector

The Vinyl Insulated Multiple-Stud Ring Terminals by Morris Products are designed for reliable electrical connections in wire and cable applications. Suitable for use by electrical distributors and switchgear suppliers, these terminals provide secure terminations for 22-16 AWG wire sizes with stud sizes #6, #8, and #10. The terminals feature vinyl insulation and a copper construction with electro-tin plating for enhanced corrosion resistance, making them ideal for various lighting solutions and electrical wiring systems.

Specifications

• Material: Copper
• Insulation Type: Vinyl
• Color: Red
• Wire Range: 22-16 AWG
• Stud Size: #6, #8, #10
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Current Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps
• Dimensions (L x W x D): 1.012 in x 0.339 in x 0.157 in

Features

• Color-coded insulation for easy identification
• Manufactured from high-strength copper alloy
• Electro-tin plated for corrosion resistance
• Expanded insulation funnel entry eliminates strand hang-up and improves crimp reliability
• Wire range stamped on the surface for quick interpretation
• Butted seam design prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent contact and mechanical stress relief
• UL, cUL, and RoHS certified
