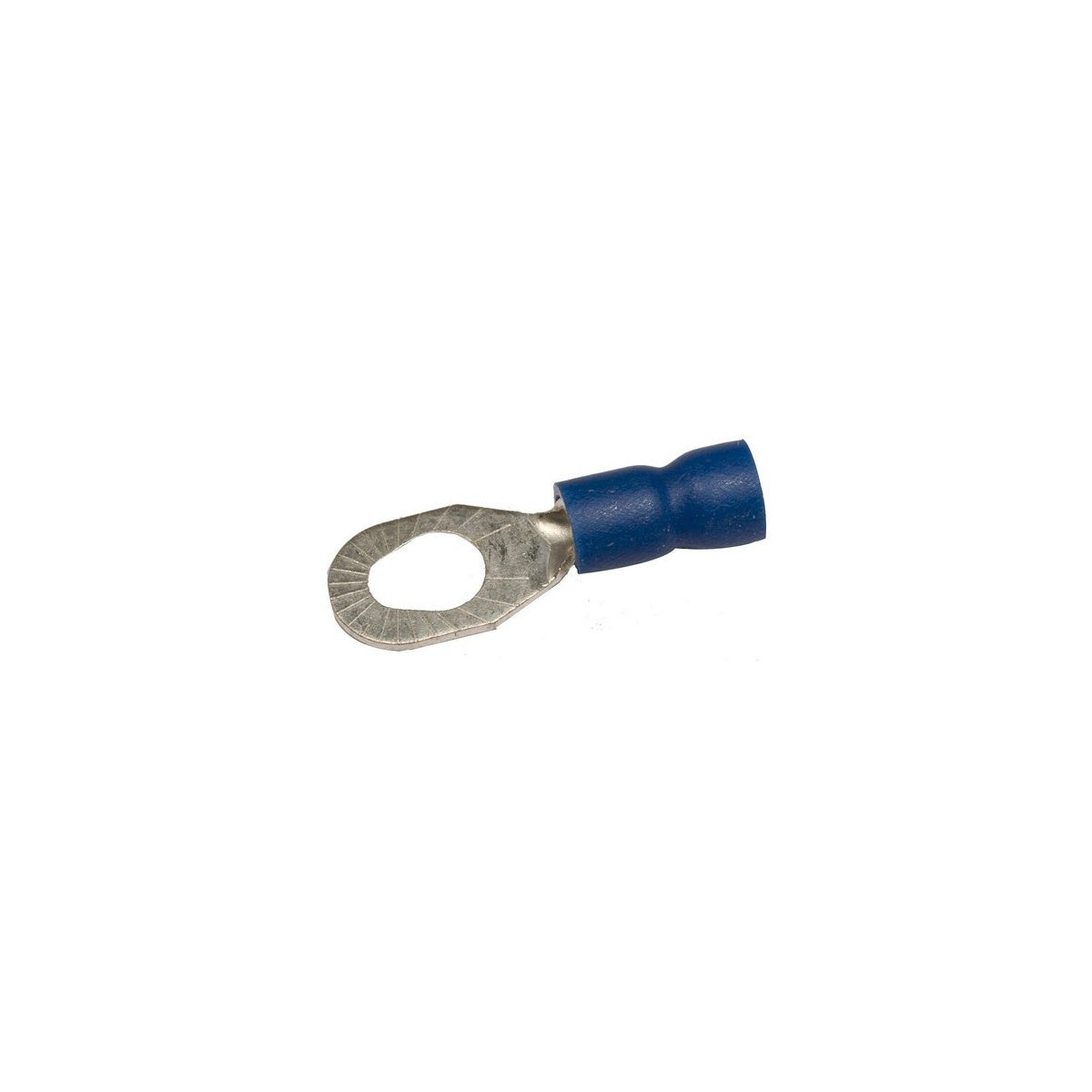

Vinyl Insulated Multiple-Stud Ring Terminals - 16-14 Wire, #6-#10 Stud Electrical Connectors

Vinyl Insulated Multiple-Stud Ring Terminals are designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, these terminals are suitable for electrical distributors and switchgear suppliers requiring reliable wire termination solutions with corrosion resistance and mechanical stress relief.

Specifications

• Material: Copper
• Finish: Electro-tin plated
• Color: Blue
• Wire Range: 16-14 AWG
• Stud Size: #6, #8, #10
• Temperature Rating: 105°C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 18 Amps (16 AWG), 30 Amps (14 AWG)
• Dimensions (inches): Length 1.024, Width 0.339, Depth 0.177, d1 0.091, d2 0.209, E 0.453, F 0.311, Thickness 0.031
• Product Weight: 0.0040 lbs

Features

• Color-coded vinyl insulation for easy identification
• Manufactured from high strength copper alloy
• Electro-tin plating provides corrosion resistance
• Expanded insulation funnel entry eliminates strand “hang up,” improving crimping rates and termination reliability
• Wire range stamped on surface for easy interpretation
• Butted seam construction prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent electrical contact and mechanical stress relief at insulation and barrel junction
