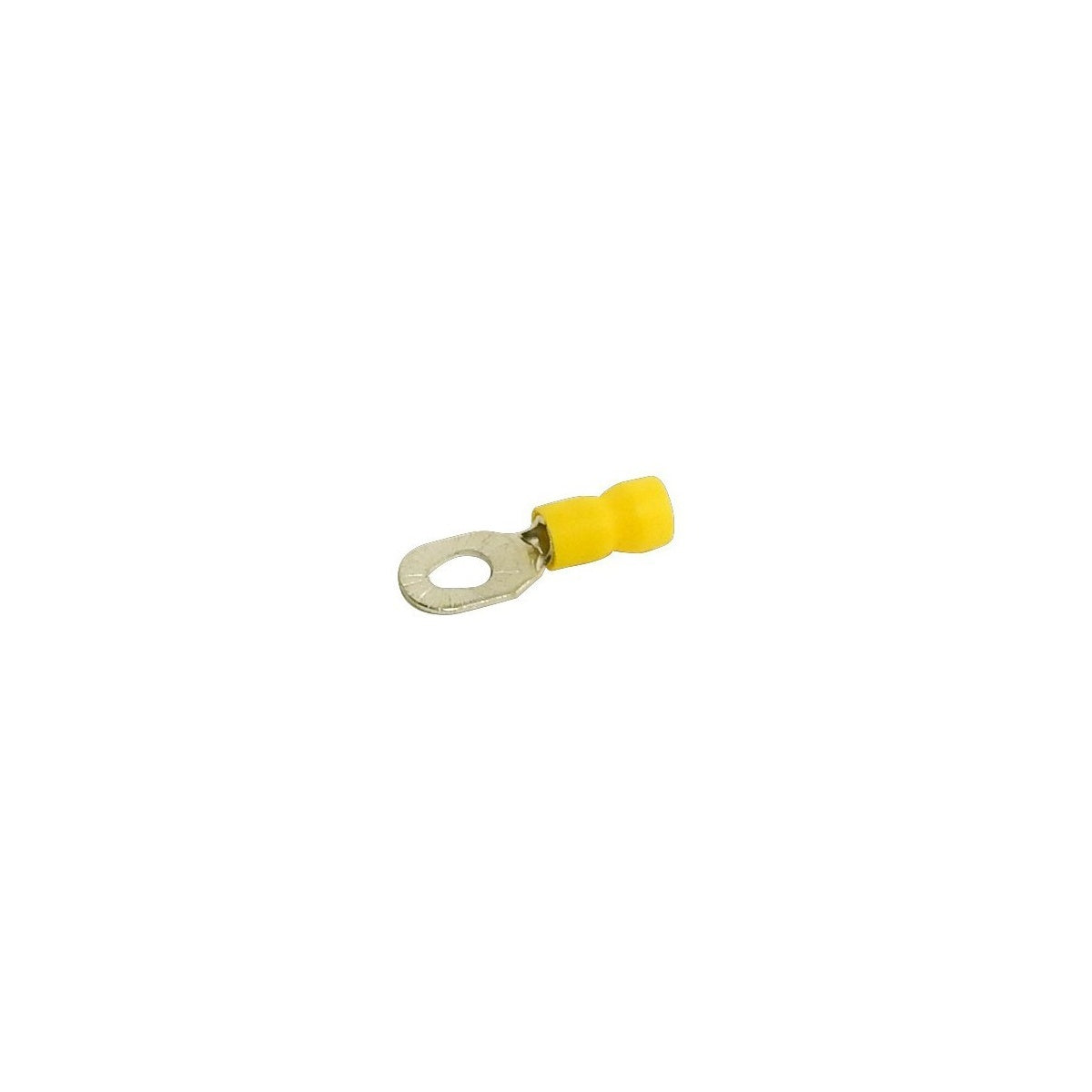

Vinyl Insulated Multiple-Stud Ring Terminals - 12-10 Wire, #6-#10 Stud Electrical Connector

This vinyl insulated multiple-stud ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured from high-strength copper alloy with electro-tin plating, it provides corrosion resistance and reliable conductivity. Suitable for use by electrical distributors and switchgear suppliers, it accommodates 12-10 AWG wire sizes and stud sizes #6, #8, and #10, making it ideal for a range of lighting solutions and electrical installations.

Specifications

• Material: Copper
• Finish: Electro-tin plated
• Insulation Type: Vinyl
• Color: Yellow
• Wire Range: 12-10 AWG
• Stud Size: #6, #8, #10
• Temperature Rating: 105°C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)
• Dimensions (inches): Length 1.205, Width 0.39, Depth 0.248

Features

• Color coded insulation for easy identification
• Expanded insulation funnel entry eliminates strand “hang up” and improves crimping reliability
• Wire range stamped on surface for easy interpretation
• Butted seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent contact and mechanical stress relief at insulation and barrel junction
• Electro-tin plated for enhanced corrosion resistance
