Vinyl Insulated Male Disconnects - 22-16 Wire, .032x.250 Tab | Electrical Wire Connectors

The Vinyl Insulated Male Disconnect connectors by Morris Products are designed for secure and reliable electrical connections in wire and cable applications. Suitable for 22-16 AWG wire sizes, these connectors provide effective insulation and corrosion resistance, making them ideal for electrical distributors and lighting solutions requiring durable and safe wire termination.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Tab Size: .032 x .250 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-O
• Amp Rating: 22 AWG - 9 Amps
• Amp Rating: 20 AWG - 12 Amps
• Amp Rating: 18 AWG - 17 Amps
• Amp Rating: 16 AWG - 18 Amps

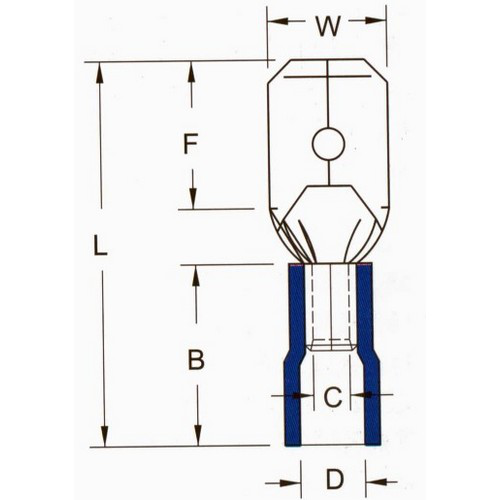

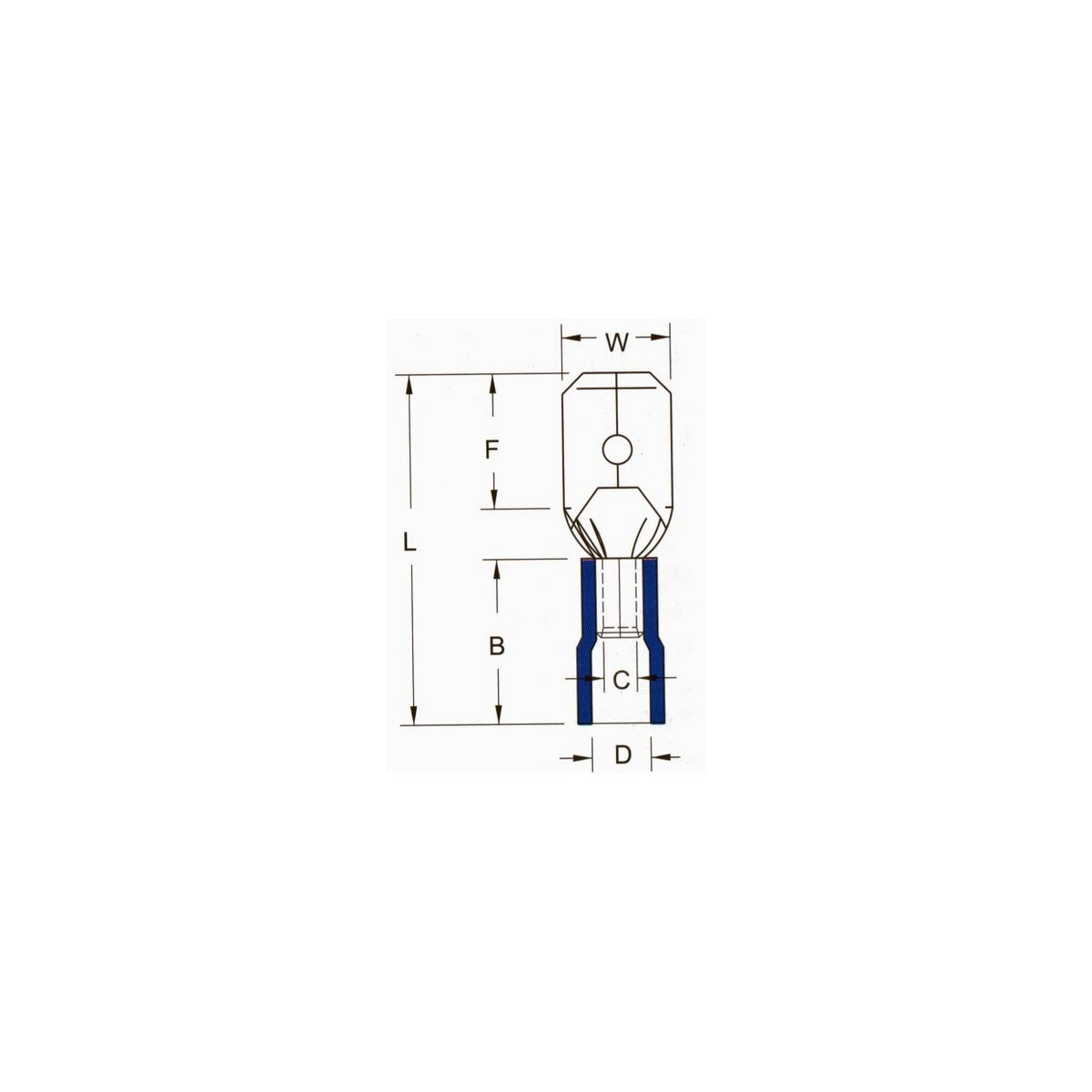

• Dimensions (inches): L - 0.827, B - 0.394, C - 0.067, D - 0.157, F - 0.303, W - 0.25
• Stock Thickness: 0.016 inches
• Certifications: UL, cUL, RoHS

Features

• Vinyl color-coded insulation for easy wire gauge identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plated surface for enhanced corrosion resistance
• Expanded insulation design eliminates strand hang-up and provides strain relief
• Wire range stamped on the surface for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent electrical contact and pull-out force resistance
• Suitable for use in various electrical wiring and switchgear applications
