Vinyl Insulated Male Disconnects - 22-16 Wire, .032x.187 Tab Electrical Connector

This vinyl insulated male disconnect connector is designed for reliable electrical connections in wire and cable applications. Suitable for 22-16 AWG wire sizes, it is ideal for use by electrical distributors and switchgear suppliers requiring durable, corrosion-resistant terminals. The connector features vinyl insulation for easy identification and enhanced strain relief, making it suitable for various lighting solutions and electrical wiring needs.

Specifications

• Wire Range: 22-16 AWG
• Tab Size: .032 x .187 inches
• Material: Brass
• Finish: Electro-Tin Plated
• Insulation Type: Vinyl
• Color: Red
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-O
• Amp Rating: 22 AWG - 9 Amps
• Amp Rating: 20 AWG - 12 Amps
• Amp Rating: 18 AWG - 17 Amps
• Amp Rating: 16 AWG - 18 Amps

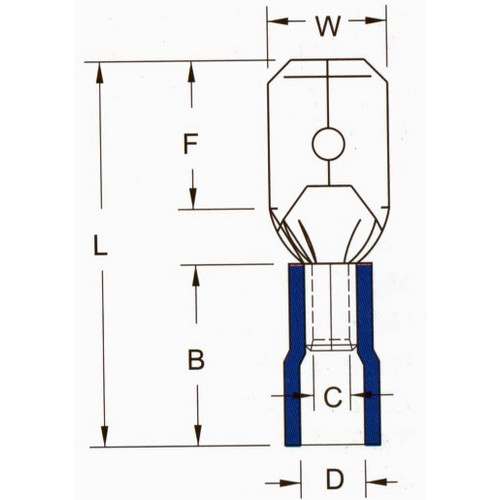

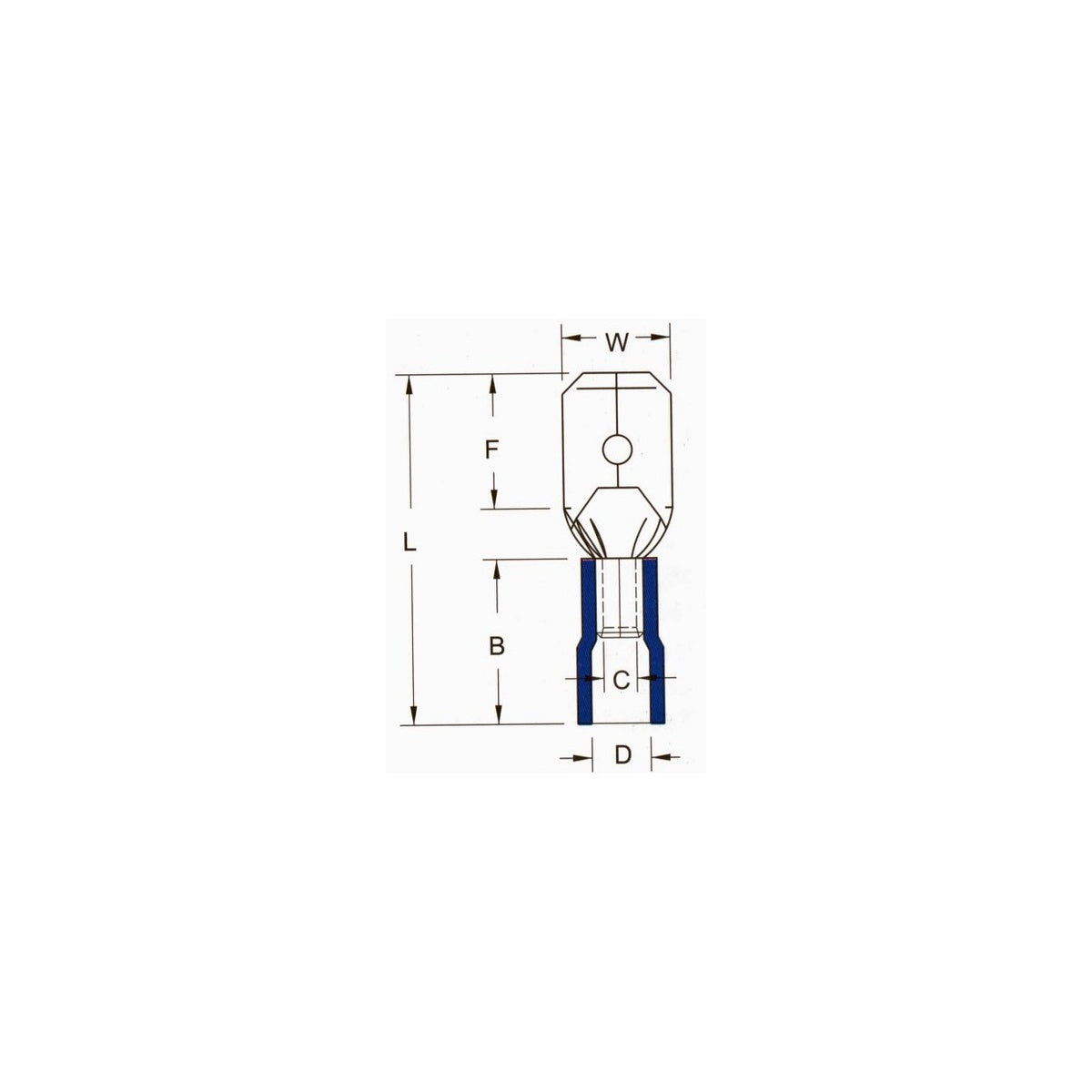

• Dimensions (inches): L 0.748, B 0.394, C 0.067, D 0.157, F 0.264, W 0.189

Features

• Vinyl color-coded insulation for easy identification
• Manufactured from high-strength copper alloy
• Electro-tin plated for corrosion resistance
• Expanded insulation eliminates strand ‚Äúhang up‚Äù and provides strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent electrical contact and pull-out force resistance
• UL, cUL, and RoHS certified
