Vinyl Insulated Male Disconnects - 22-16 Wire, .020x.187 Tab Electrical Connectors

These vinyl insulated male disconnect connectors are designed for secure and reliable electrical connections in wire and cable applications. Suitable for use by electrical distributors and switchgear suppliers, they offer easy identification and high performance for 22-16 AWG wire sizes in lighting solutions and general electrical installations.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Tab Size: 0.020 x 0.187 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 22 AWG - 9 Amps
• Amp Rating: 20 AWG - 12 Amps
• Amp Rating: 18 AWG - 17 Amps
• Amp Rating: 16 AWG - 18 Amps

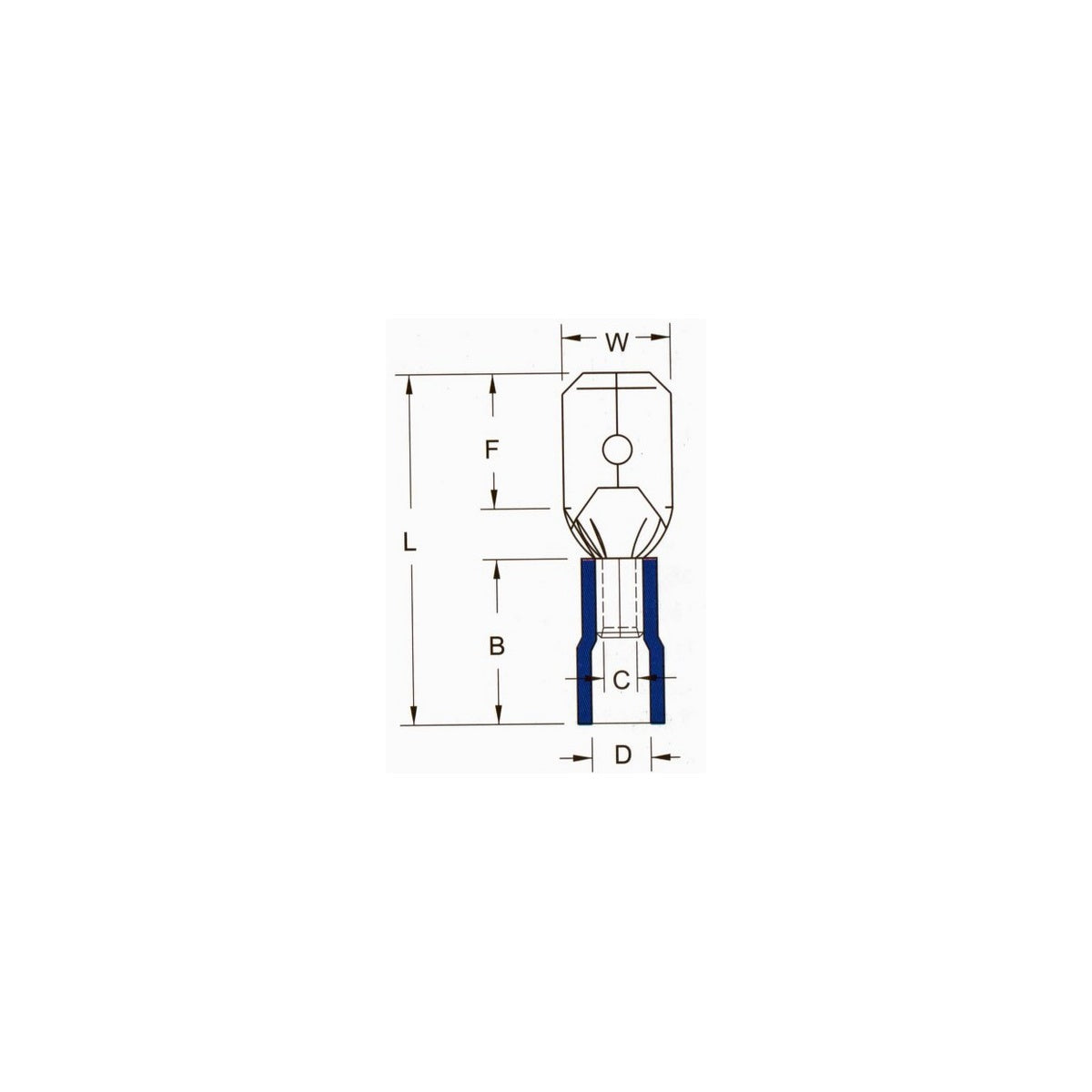

• Dimensions (inches): L - 0.748, B - 0.394, C - 0.067, D - 0.157, F - 0.256, W - 0.189

Features

• Vinyl color-coded insulation for easy wire gauge identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation design eliminates strand hang-up and provides strain relief
• Insulation offers excellent UV, temperature, and chemical resistance
• Wire range stamped on surface for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent electrical contact and pull-out force resistance
• UL, cUL, and RoHS certified

Downloads & Links

• Spec Sheet
