Vinyl Insulated Male Disconnects - 22-16 Wire, .020x.110 Tab | Electrical Connectors

The Vinyl Insulated Male Disconnects, manufactured by Morris Products, are designed for secure and reliable electrical connections in wire and cable applications. These connectors are suitable for wire sizes 22-16 AWG and feature vinyl insulation for easy identification and enhanced durability. Ideal for electrical distributors and switchgear suppliers, they provide corrosion resistance and strain relief, ensuring long-lasting performance in various lighting solutions and electrical systems.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Tab Size: .020 x .110 inches
• Temperature Rating: 167°F (75°C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-O
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps

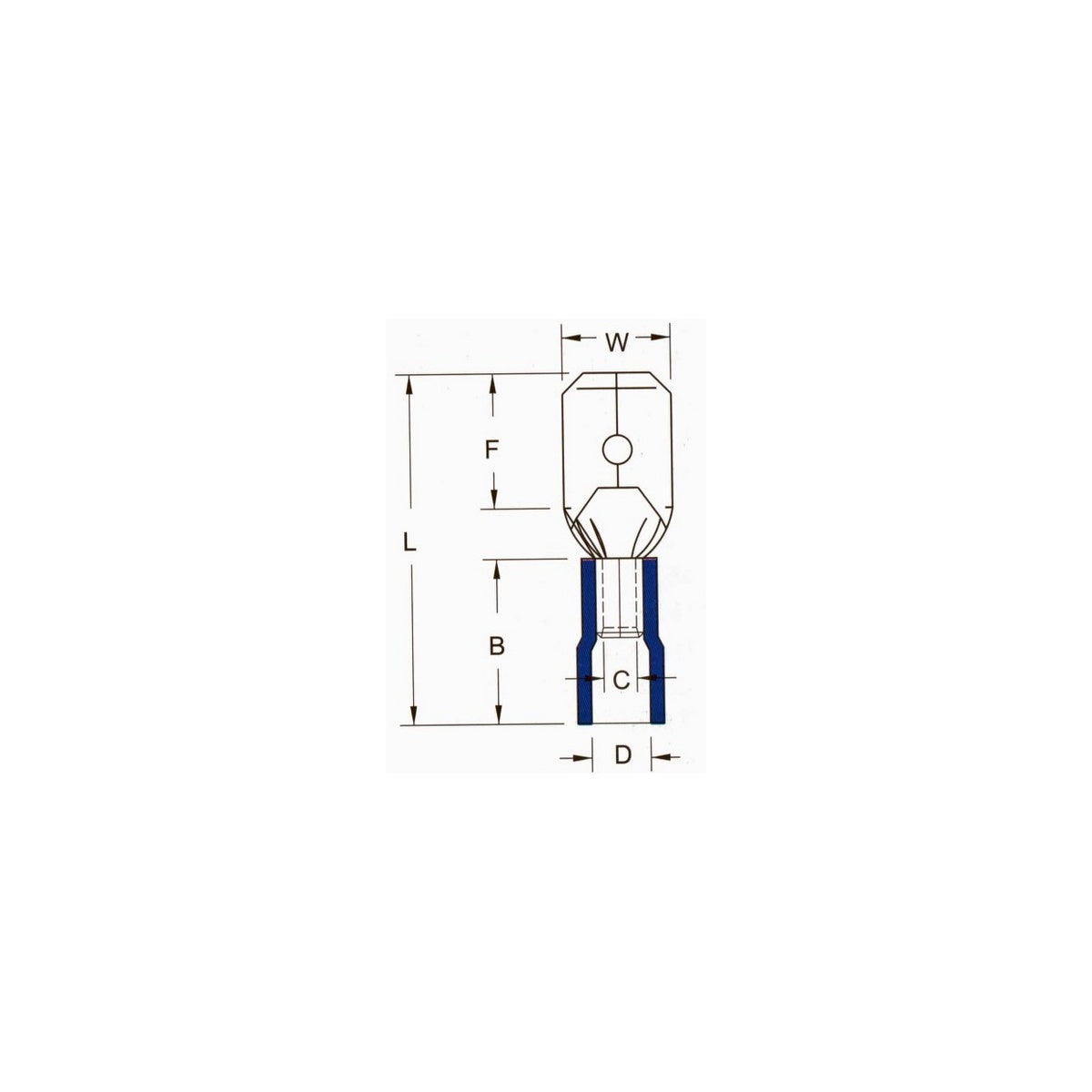

• Dimensions (inches): L - 0.728, B - 0.394, C - 0.067, D - 0.157, F - 0.256, W - 0.11
• Stock Thickness: 0.02 inches
• Product Weight: 0.0010 lbs

Features

• Vinyl color-coded insulation for easy wire identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation eliminates strand “hang up” and provides strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on the surface for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent electrical contact and pull-out force resistance
