Vinyl Insulated Male Disconnects - 16-14 Wire, .032x.250 Tab Electrical Connectors

These vinyl insulated male disconnect connectors are designed for reliable electrical connections in wire and cable applications. Suitable for 16-14 AWG wire sizes, they provide secure and corrosion-resistant terminations, ideal for electrical distributors and switchgear suppliers requiring durable lighting solutions and wiring components.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Insulation Type: Vinyl
• Color: Blue
• Wire Range: 16-14 AWG
• Tab Size: 0.032 x 0.250 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 30 Amps (14 AWG), 18 Amps (16 AWG)

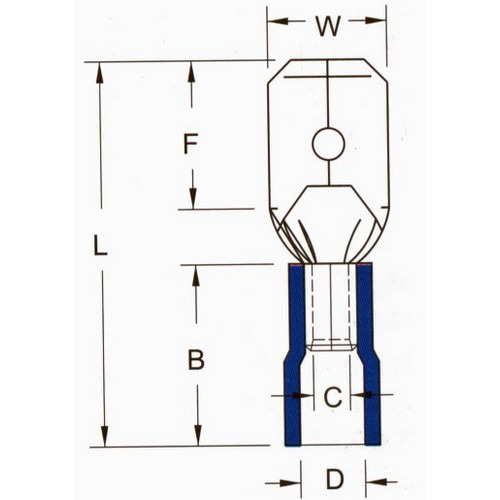

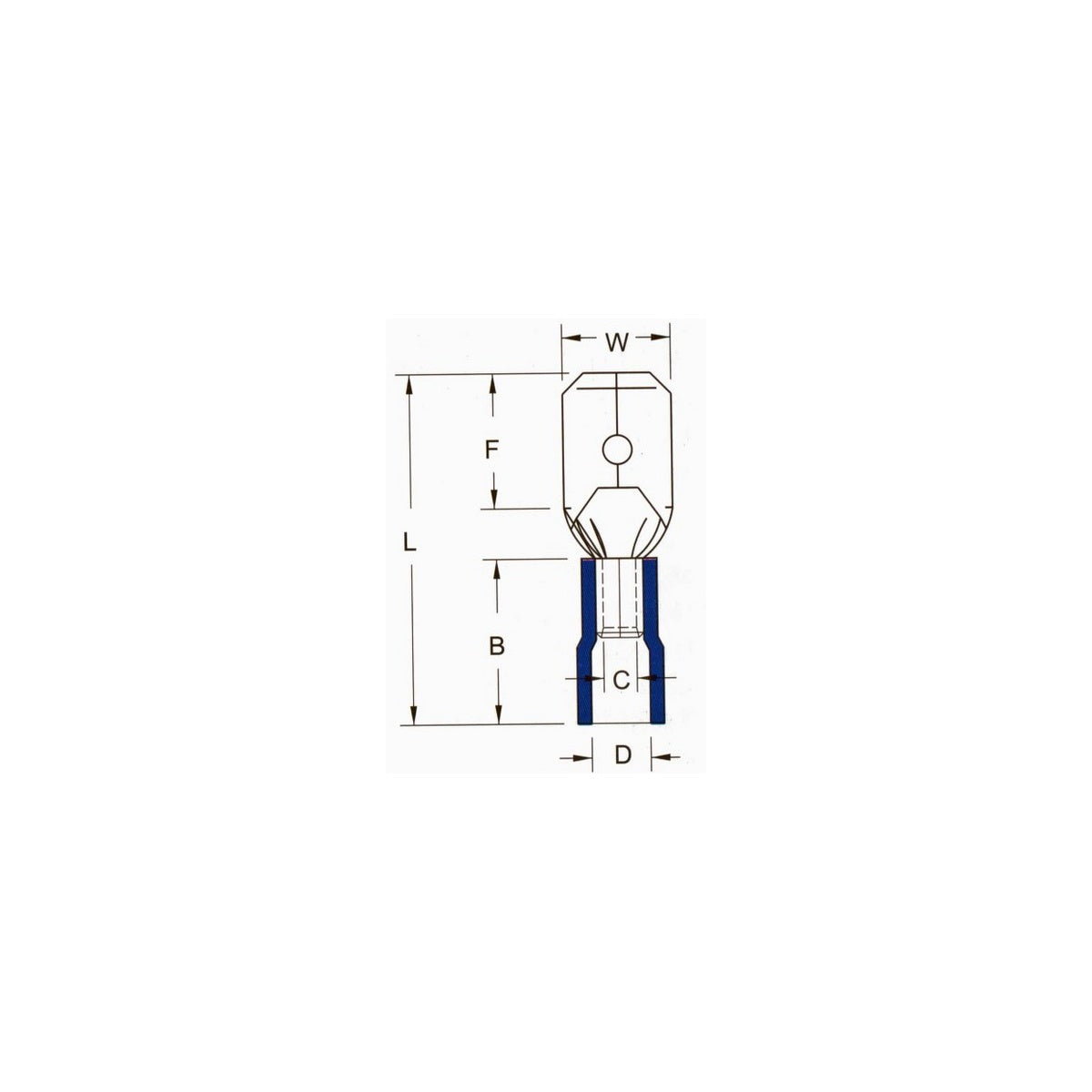

• Dimensions (inches): Length (L) 0.827, B 0.394, C 0.091, D 0.177, F 0.303, W 0.25

Features

• Vinyl color-coded insulation for easy identification
• Manufactured from high-strength copper alloy
• Electro-tin plated for corrosion resistance
• Expanded insulation eliminates strand hang-up and provides strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent electrical contact and pull-out force resistance

Downloads & Links

• Spec Sheet
