Vinyl Insulated Male Disconnects - 16-14 Wire, .032x.187 Tab Electrical Connectors

These vinyl insulated male disconnect connectors are designed for secure and reliable electrical connections in wire and cable applications. Suitable for 16-14 AWG wire sizes, they are ideal for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant connectors with easy identification and installation.

Specifications

• Material: Brass
• Insulation Type: Vinyl
• Color: Blue
• Wire Range: 16-14 AWG
• Tab Size: 0.032 x 0.187 inches
• Temperature Rating: 167°F (75°C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 30 Amps (14 AWG), 18 Amps (16 AWG)

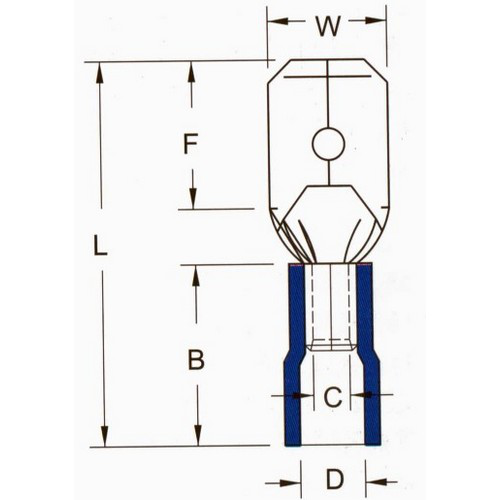

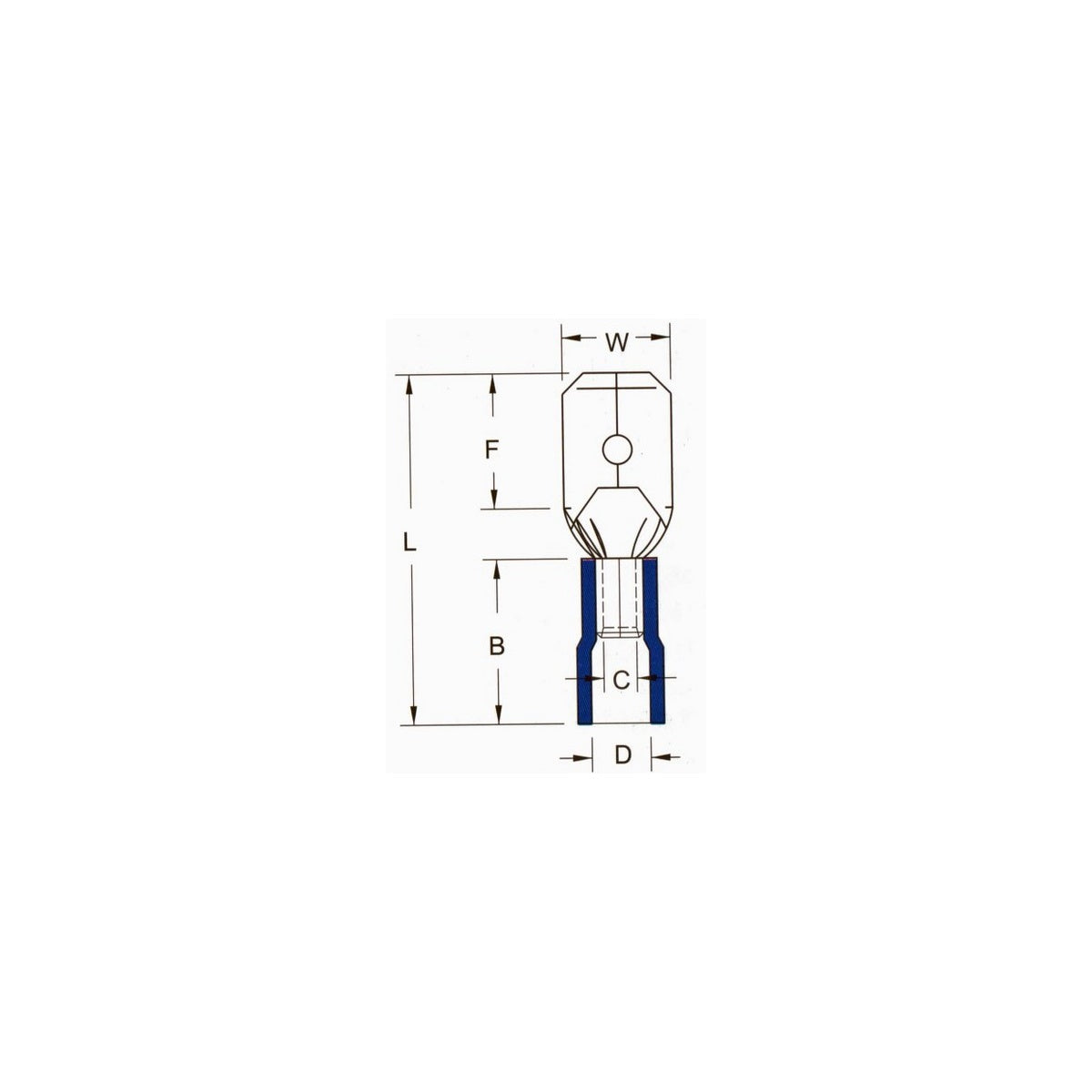

• Dimensions (inches): Length 0.748, B 0.394, C 0.091, D 0.177, F 0.264, W 0.189
• Finish: Electro-tin plated
• Product Weight: 0.0020 lbs
• UPC: 601986102230
• Manufacturer Part #: 10223

Features

• Vinyl color-coded insulation for easy identification
• Manufactured from high strength copper alloy (brass)
• Electro-tin plated for corrosion resistance
• Expanded insulation eliminates strand hang-up, provides strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent electrical contact and pull-out force resistance
