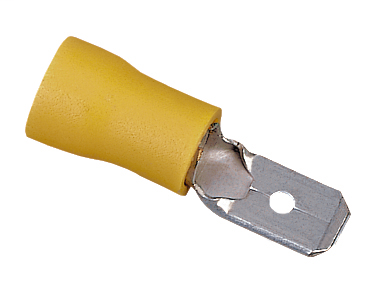

Vinyl Insulated Male Disconnect, 12-10 AWG – Electrical Terminals

This Vinyl Insulated Male Disconnect is designed for secure wire termination in electrical systems. Suitable for wire sizes 12 to 10 AWG, it provides reliable connections for various wiring applications. Ideal for electrical distributors and lighting solutions providers, this product ensures efficient and safe connectivity in wire and cable installations.

Specifications

• Cable Size: 12 - 10 AWG
• Insulation: Vinyl Insulated
• Tab Size: 0.250" x 0.032" (6.35 mm x 0.8 mm)
• Maximum Wire Insulation Diameter: 0.244 in (6.2 mm)
• Dimensions (L x B x W x F): 0.945" x 0.512" x 0.250" x 0.303" (24.0 mm x 13.0 mm x 6.35 mm x 7.7 mm)
• Temperature Rating: 75°C
• Voltage Rating: 300 Volts max
• Manufacturer Part Number: 83-9991
• Product Weight: 0.2000 lbs

Features

• Color-coded vinyl insulation for easy wire size identification
• Durable construction suitable for various electrical systems
• Box packaging for convenient storage and handling
• UL Listed for wire connectors (Wire Connector 774A)
