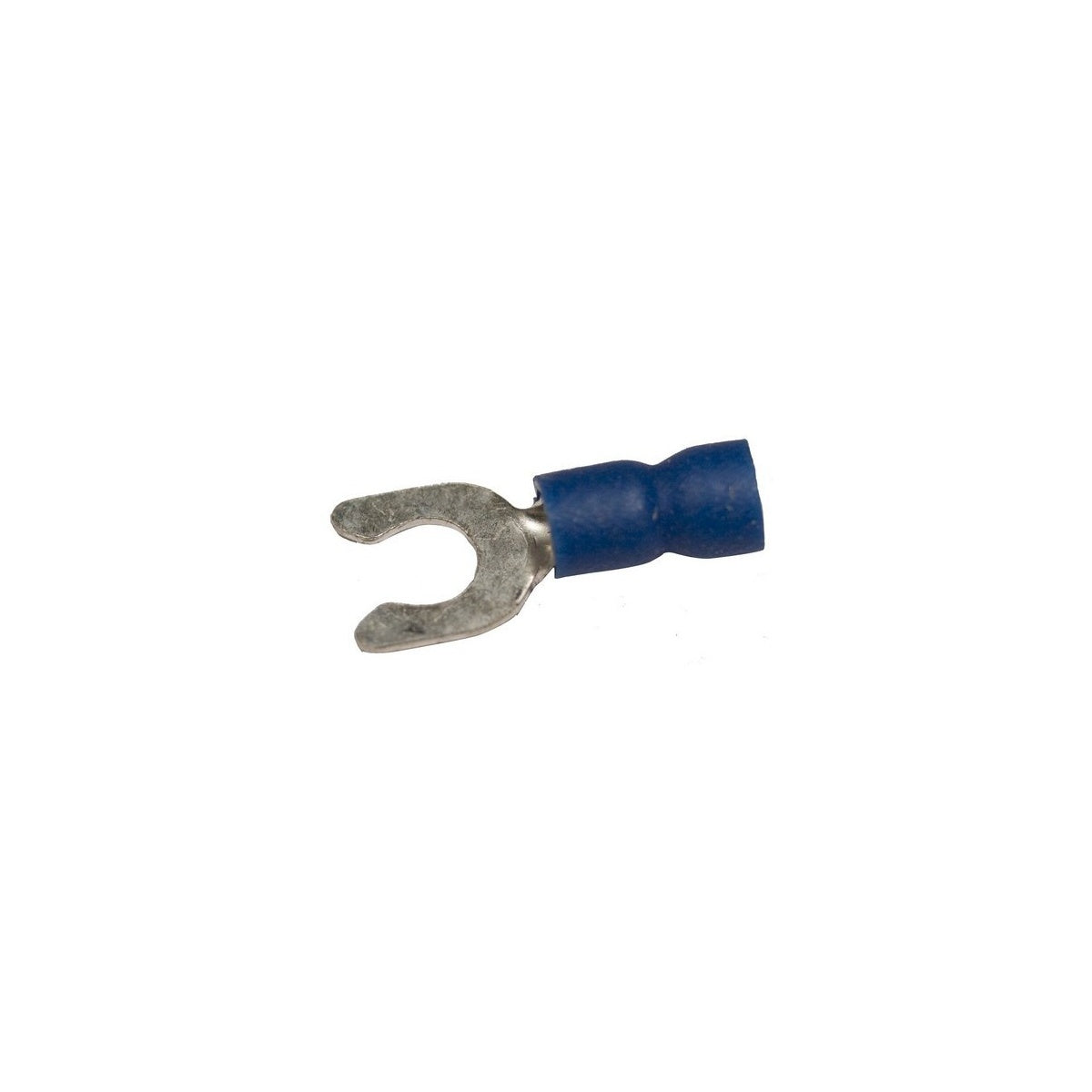

Vinyl Insulated Locking Fork/Spade Terminals - 16-14 Wire, #8 Stud | Electrical Connectors

This vinyl insulated locking fork/spade terminal is designed for secure and reliable electrical connections in wire and cable applications. Suitable for use by electrical distributors and switchgear suppliers, it supports wire sizes 16-14 AWG with a #8 stud size, providing a durable termination solution with corrosion resistance and mechanical stress relief.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Vinyl
• Finish: Electro-Tin Plated
• Color: Blue
• Wire Range: 16-14 AWG
• Stud Size: #8
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 14 AWG - 30 Amps, 16 AWG - 18 Amps
• Dimensions (inches): Length (L) 0.886, Diameter (D) 0.161, D1 0.091, D2 0.169, E 0.453, F 0.256, W 0.319, T 0.031
• Product Weight: 0.0030 lbs
• Certifications: UL, cUL, RoHS

Features

• Color-coded vinyl insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Easy entry expanded insulation reduces strand hang-up, improving crimping rates and termination reliability
• Wire range stamped on surface for quick identification
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve ensure excellent contact and mechanical stress relief at the insulation and barrel junction
