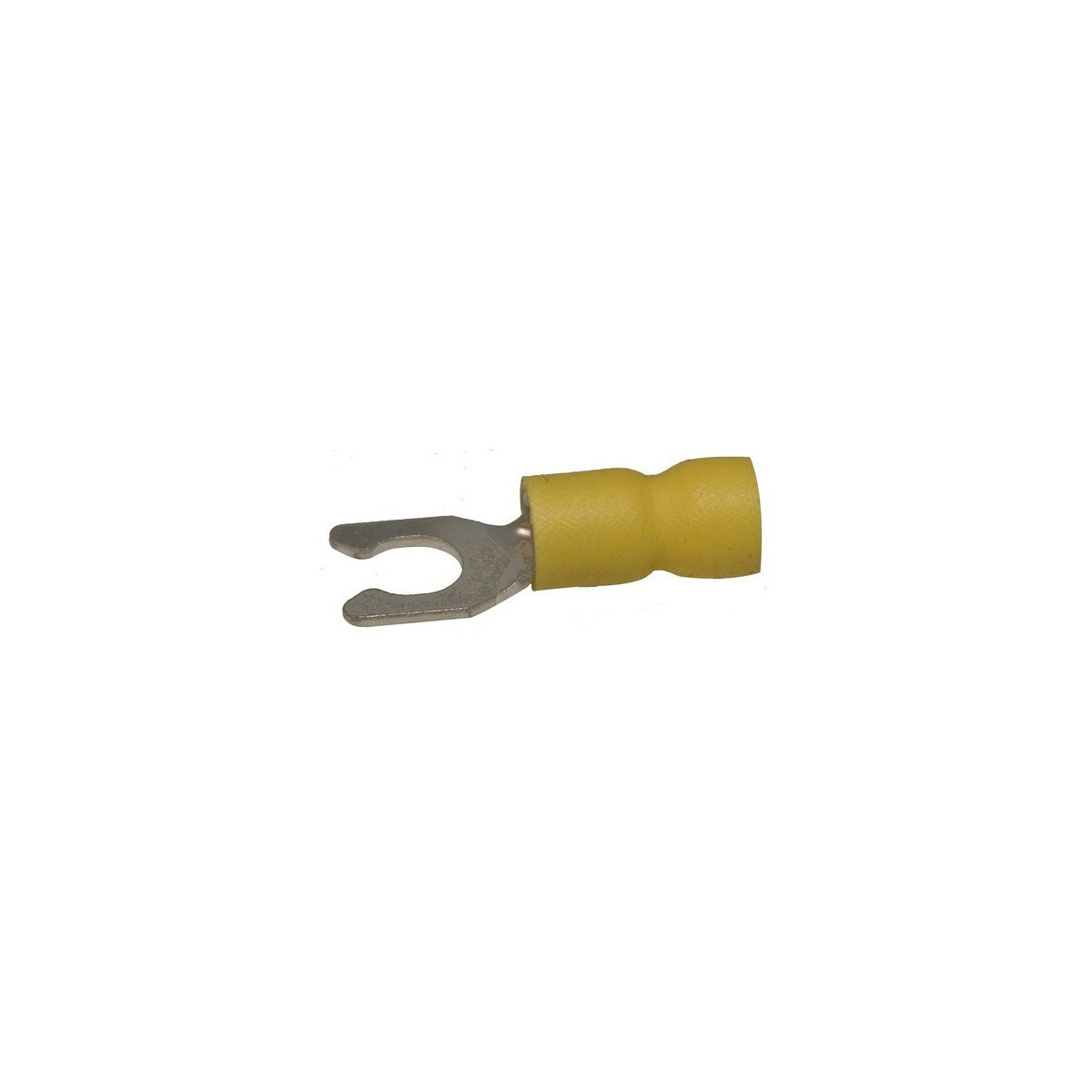

Vinyl Insulated Locking Fork/Spade Terminals - 12-10 Wire, #10 Stud | Electrical Wire Terminals

This vinyl insulated locking fork/spade terminal is designed for secure and reliable electrical connections in wire and cable applications. Ideal for electrical distributors and switchgear suppliers, it supports 12-10 AWG wire sizes and features a #10 stud size, making it suitable for various lighting solutions and electrical installations requiring durable terminal connections.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Vinyl
• Color: Yellow
• Wire Range: 12-10 AWG
• Stud Size: #10
• Finish: Electro-Tin Plated
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)
• Dimensions (inches): Length 1.035, Diameter 0.248

Features

• Color coded insulation for easy identification
• Manufactured from high strength copper alloy
• Electro-tin plating for corrosion resistance
• Easy entry expanded insulation eliminates strand ‚Äúhang up‚Äù to increase crimping rates and termination reliability
• Wire range stamped on surface for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve provide excellent contact and mechanical stress relief at insulation and barrel junction
• UL, cUL, and RoHS certified
