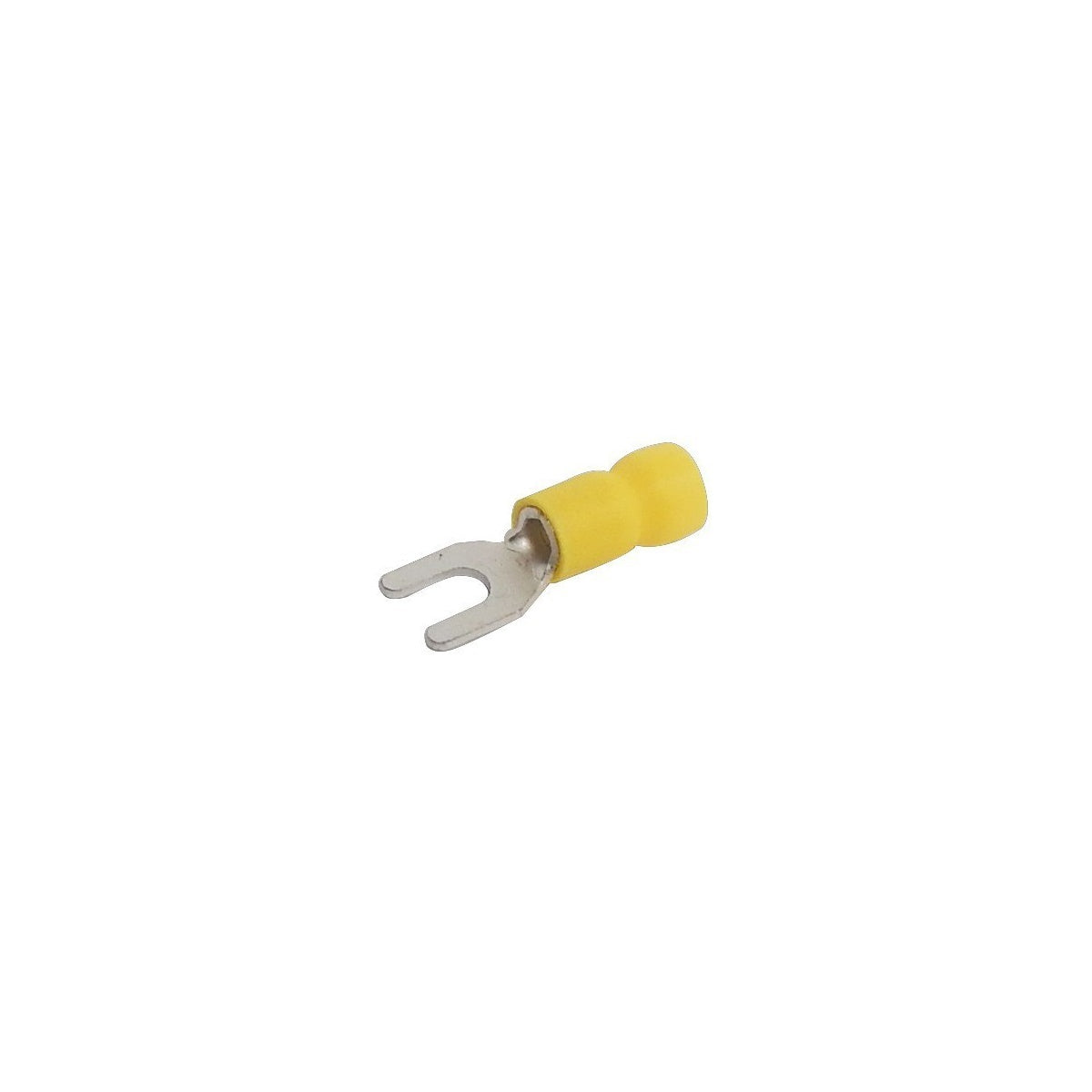

Vinyl Insulated Fork/Spade Terminals 25 Pack - 12-10 Wire, #10 Stud Electrical Connectors

These vinyl insulated fork/spade terminals are designed for secure electrical connections in wire and cable applications. Suitable for use by electrical distributors and switchgear suppliers, they provide reliable terminations for 12-10 AWG wire sizes with a #10 stud. The terminals feature corrosion-resistant copper construction and color-coded insulation for easy identification within lighting solutions and electrical systems.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Vinyl
• Finish: Electro-Tin Plated
• Color: Yellow
• Wire Range: 12-10 AWG
• Stud Size: #10
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 600 V @ 105¬∞C
• Flammability Rating: UL94V-0
• Amp Rating: 50 Amps
• Stock Thickness: 0.039 inches
• Length: 1.1047 inches
• Diameter (D): 0.248 inches
• Diameter (D1): 0.134 inches
• Diameter (D2): 0.209 inches
• Dimension E: 0.555 inches
• Dimension F: 0.276 inches
• Dimension W: 0.354 inches
• Dimension T: 0.039 inches
• Packaging Quantity: 25 per bag
• Certifications: UL, cUL, RoHS Compliant

Features

• Color-coded insulation for easy identification
• Manufactured from high strength copper alloy
• Electro-tin plated for corrosion resistance
• Easy entry expanded insulation eliminates strand ‚Äúhang up‚Äù to increase crimping rates and termination reliability
• Wire range stamped on the surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent contact and mechanical stress relief at insulation and barrel junction
• Packed in zip lock plastic bags with punched hole for pegboard hanging

Downloads & Links

• Spec Sheet
