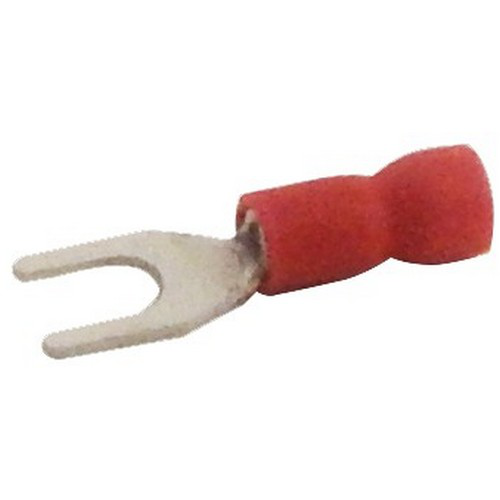

Vinyl Insulated Fork/Spade Terminals - 22-16 Wire, #8 Stud for Electrical Connections

This vinyl insulated fork/spade terminal is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for electrical distributors and switchgear suppliers requiring durable terminals for 22-16 AWG wire sizes with a #8 stud. The terminal features corrosion-resistant electro-tin plating and color-coded insulation for easy identification, making it a practical component in lighting solutions and electrical distribution systems.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Vinyl
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Stud Size: #8
• Temperature Rating: 105°C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps
• Dimensions (inches): Length (L) 0.874, Diameter (D) 0.157, D1 0.067, D2 0.169, E 0.441, F 0.256, W 0.319, T 0.03

Features

• Color-coded vinyl insulation for easy identification
• High strength copper alloy construction for durability
• Electro-tin plated surface for corrosion resistance
• Easy entry expanded insulation reduces strand hang-up, improving crimp reliability and speed
• Wire range stamped on the surface for clear identification
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve provide excellent contact and mechanical stress relief
