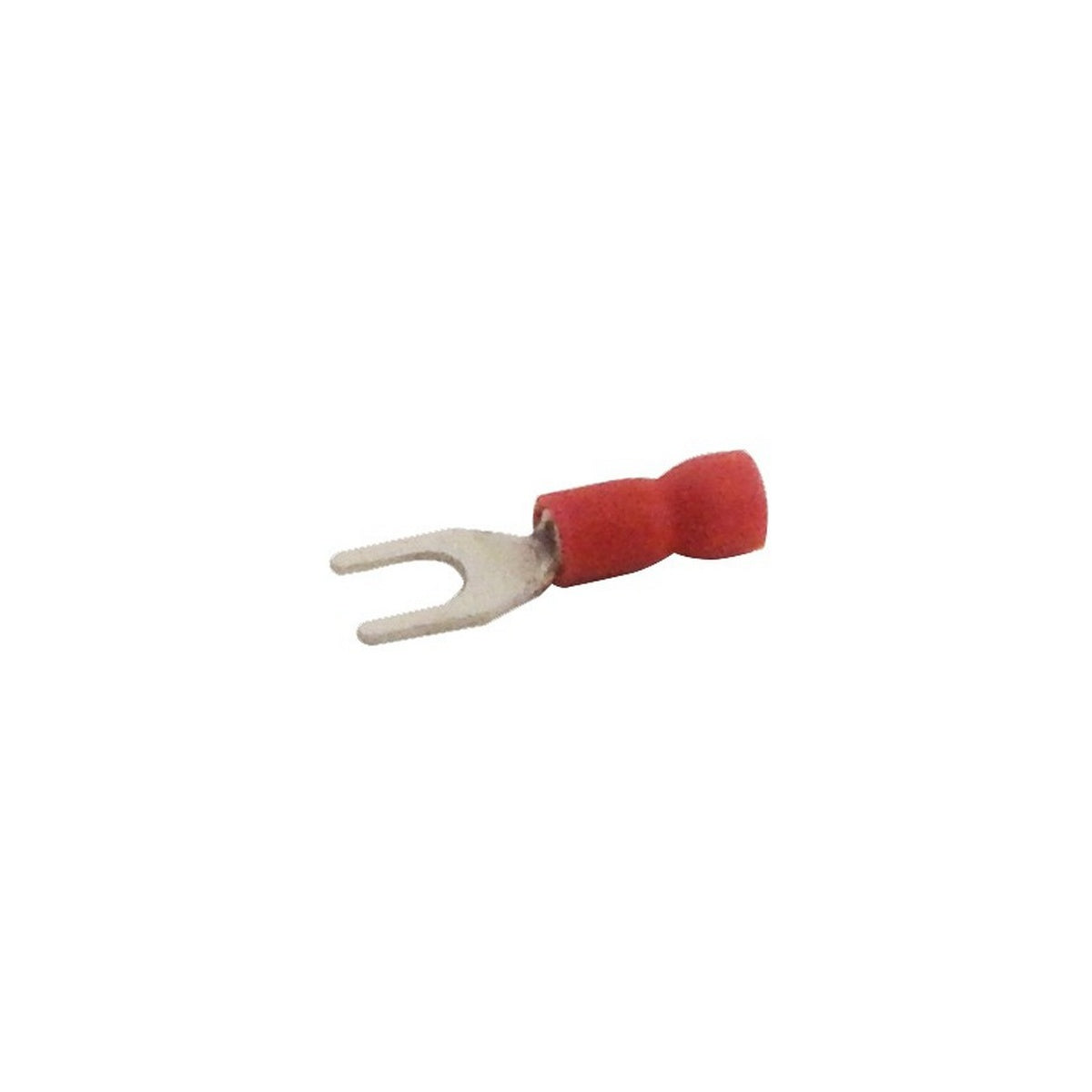

Vinyl Insulated Fork/Spade Terminals - 22-16 Wire, #4 Stud for Electrical Connections

This vinyl insulated fork/spade terminal is designed for secure and reliable wire terminations in electrical distribution and lighting solutions. Suitable for wire sizes 22-16 AWG, it provides corrosion resistance and mechanical stress relief, making it ideal for use by electrical distributors and switchgear suppliers handling wire and cable assemblies.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Vinyl
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Stud Size: #4
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps
• Dimensions (inches): Length 0.874, Diameter 0.157, D1 0.067, D2 0.126, E 0.441, F 0.256, W 0.224, Thickness 0.03
• Product Weight: 0.0020 lbs
• Certifications: UL, cUL, RoHS Compliant

Features

• Color coded red insulation for easy wire gauge identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Easy entry expanded insulation design reduces strand ‚Äúhang up‚Äù for faster, reliable crimps
• Wire range stamped on terminal surface for quick verification
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve improve electrical contact and mechanical stress relief at insulation and barrel junction

Downloads & Links

• Spec Sheet
