Vinyl Insulated Fork/Spade Terminals - 22-16 Wire, 1/4" Stud for Electrical Connections

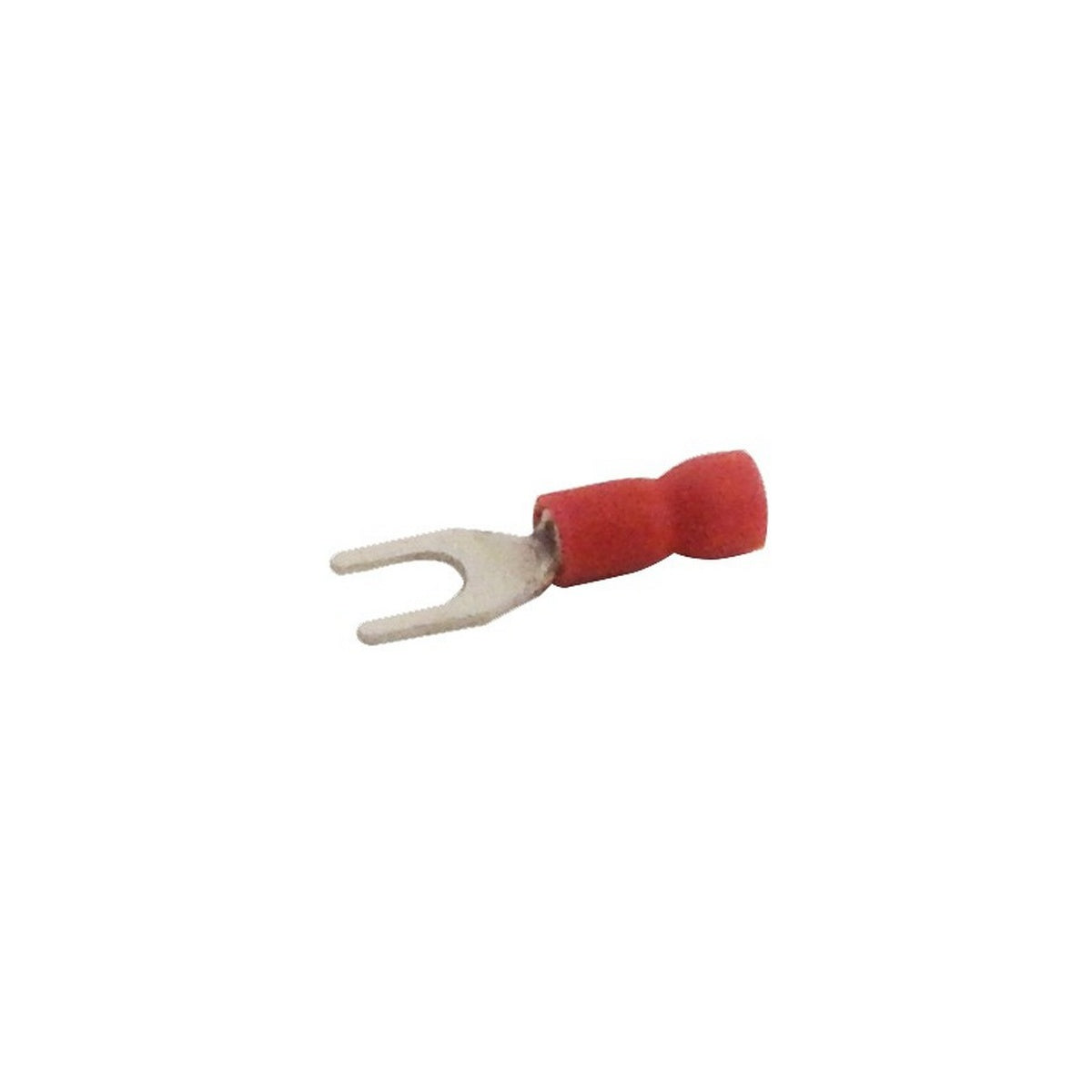

This vinyl insulated fork/spade terminal is designed for reliable wire termination and connection in electrical distribution and lighting solutions. Suitable for wire sizes 22-16 AWG, it provides secure fastening to 1/4" studs, making it ideal for use by electrical distributors and switchgear suppliers requiring durable wire and cable connectors.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Vinyl
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Stud Size: 1/4"
• Temperature Rating: 105°C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps
• Dimensions (inches): Length - 1.11, Diameter - 0.157, D1 - 0.067, D2 - 0.252, E - 0.441, F - 0.433, W - 0.472, T - 0.03

Features

• Color-coded vinyl insulation for quick identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plated finish enhances corrosion resistance
• Expanded insulation design eliminates strand hang-up, improving crimping reliability
• Wire range stamped on terminal surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve provide excellent contact and mechanical stress relief

Downloads & Links

• Spec Sheet
