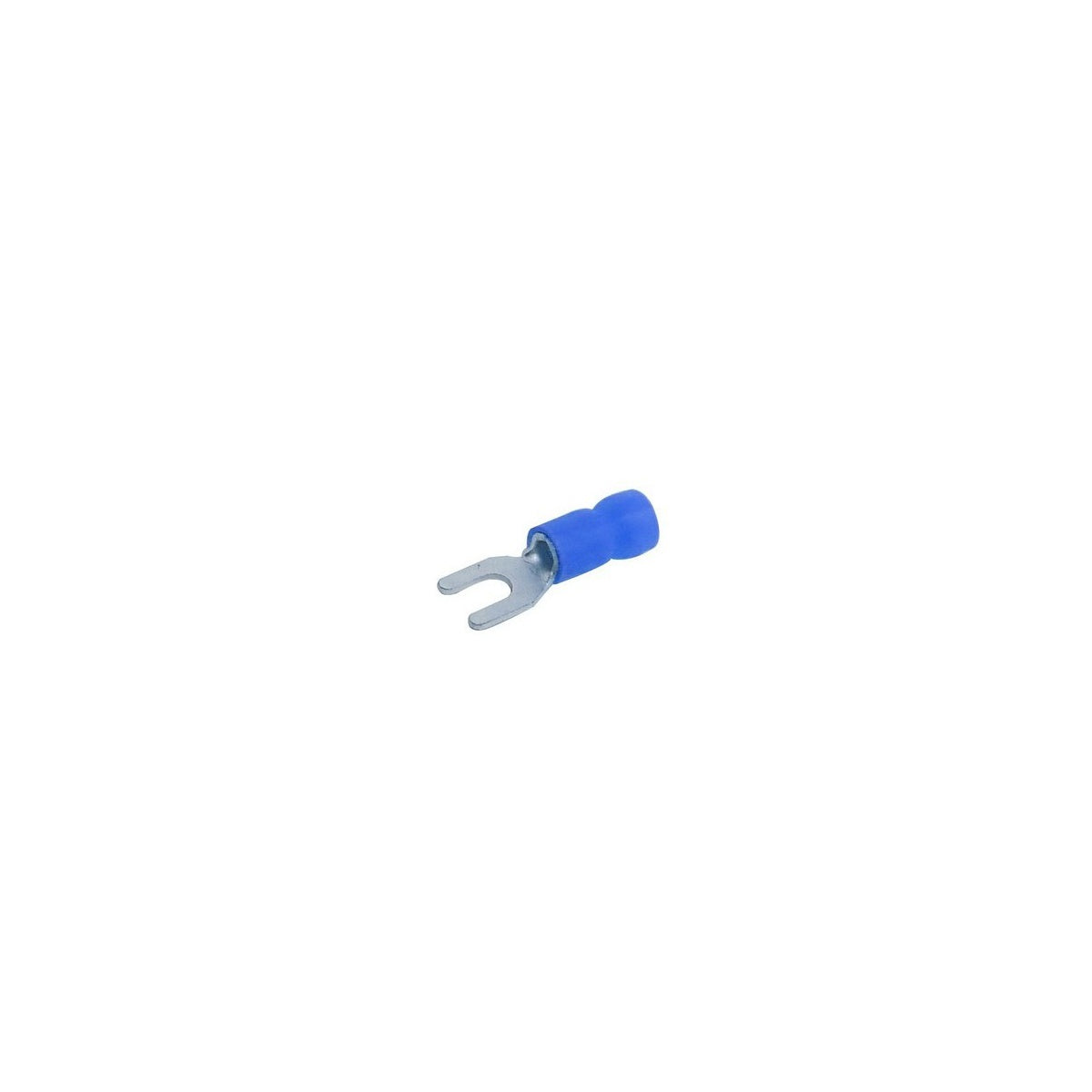

Vinyl Insulated Fork/Spade Terminals - 16-14 Wire, #4 Stud Electrical Connectors

These vinyl insulated fork/spade terminals are designed for secure and reliable wire terminations in electrical distribution and lighting solutions. Suitable for wire ranges 16-14 AWG and #4 stud size, they provide corrosion-resistant connections essential for wire and cable assemblies and switchgear applications.

Specifications

• Material: Copper Tubular/Copper Plate
• Finish: Electro-Tin Plated
• Color: Blue
• Wire Range: 16-14 AWG
• Stud Size: #4
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 18 Amps (16 AWG), 30 Amps (14 AWG)
• Length: 0.886 inches (22.5 mm)
• Diameter (D): 0.177 inches (4.5 mm)

Features

• Color-coded vinyl insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plated surface provides corrosion resistance
• Easy entry expanded insulation eliminates strand hang-up, improving crimping efficiency and termination reliability
• Wire range stamped on the terminal for quick identification
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve ensure excellent contact and mechanical stress relief at insulation and barrel junction
• UL, cUL, and RoHS certified
