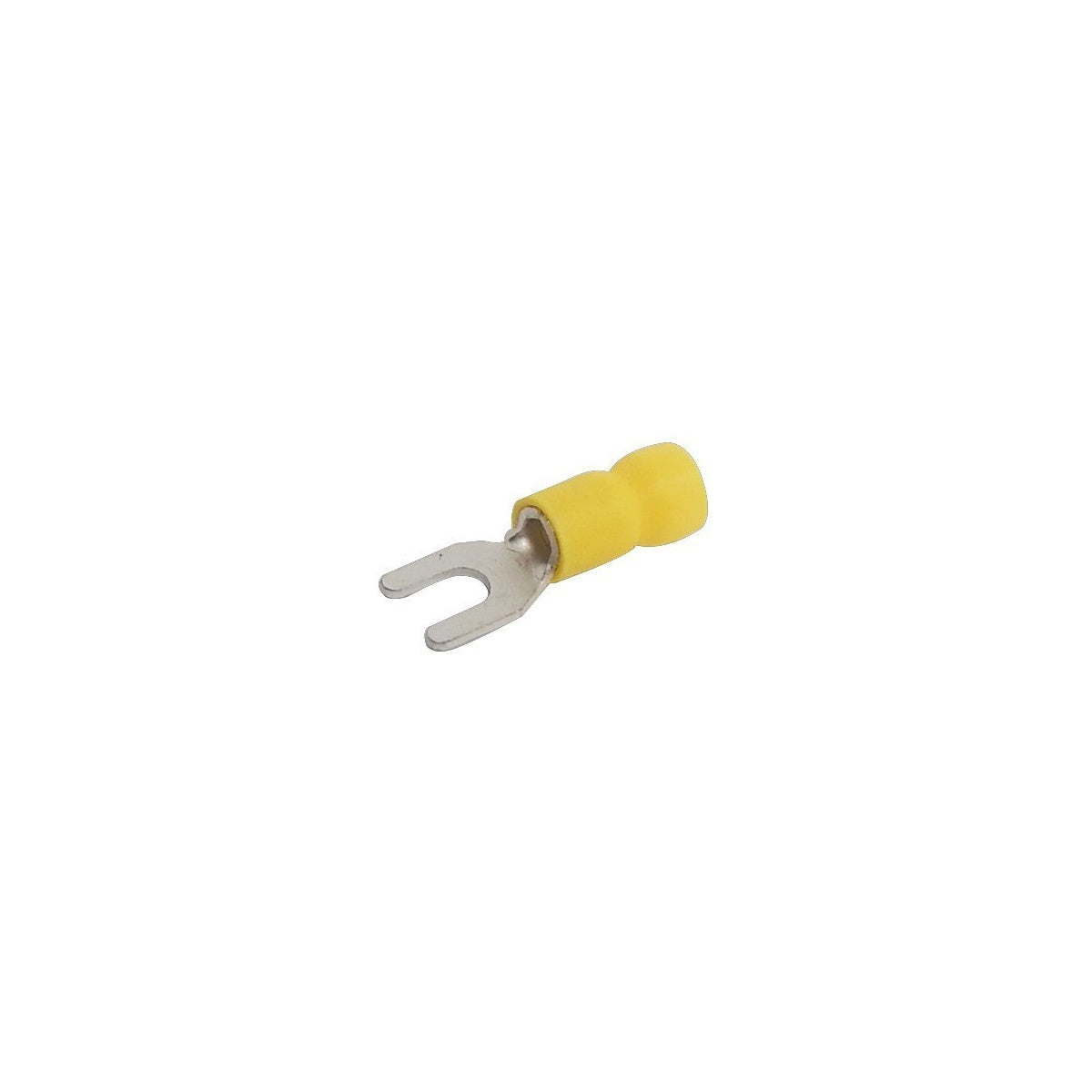

Vinyl Insulated Fork/Spade Terminals - 12-10 Wire, 5/16" Stud | Electrical Wire Terminals

The Vinyl Insulated Fork/Spade Terminal is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by Morris Products, this terminal is suited for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant components for lighting solutions and general electrical installations.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Vinyl
• Finish: Electro-Tin Plated
• Color: Yellow
• Wire Range: 12-10 AWG
• Stud Size: 5/16"
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amperage Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)
• Dimensions (inches): Length 1.244, Diameter 0.248, D1 0.134, D2 0.331, E 0.555, F 0.413, W 0.551, T 0.039
• Certification: UL, cUL, RoHS Compliant

Features

• Color-coded insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Easy entry expanded insulation eliminates strand ‚Äúhang up‚Äù for improved crimping reliability
• Wire range stamped on surface for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve ensure excellent contact and mechanical stress relief at insulation and barrel junction

Downloads & Links

• Spec Sheet
