Vinyl Insulated Flange Fork/Spade Terminals - 16-14 Wire, #6 Stud Electrical Connector

This vinyl insulated flanged fork/spade terminal is designed for reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring durable, corrosion-resistant terminals for 16-14 AWG wire sizes. The terminal features color-coded insulation for easy identification and is engineered to provide secure mechanical and electrical performance in lighting solutions and general electrical installations.

Specifications

• Material: Copper Tubular/Copper Plate
• Finish: Electro-Tin Plated
• Insulation Type: Vinyl
• Color: Blue
• Wire Range: 16-14 AWG
• Stud Size: #6
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 14 AWG - 30 Amps, 16 AWG - 18 Amps

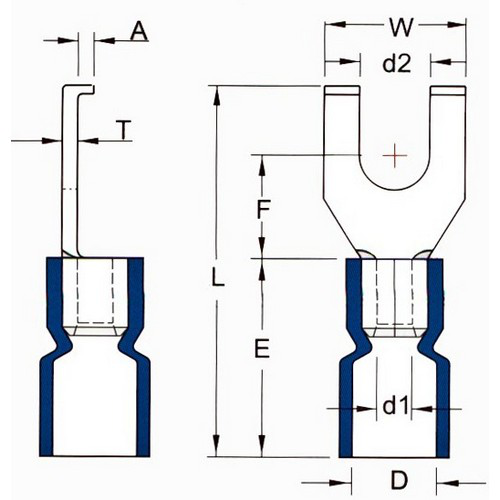

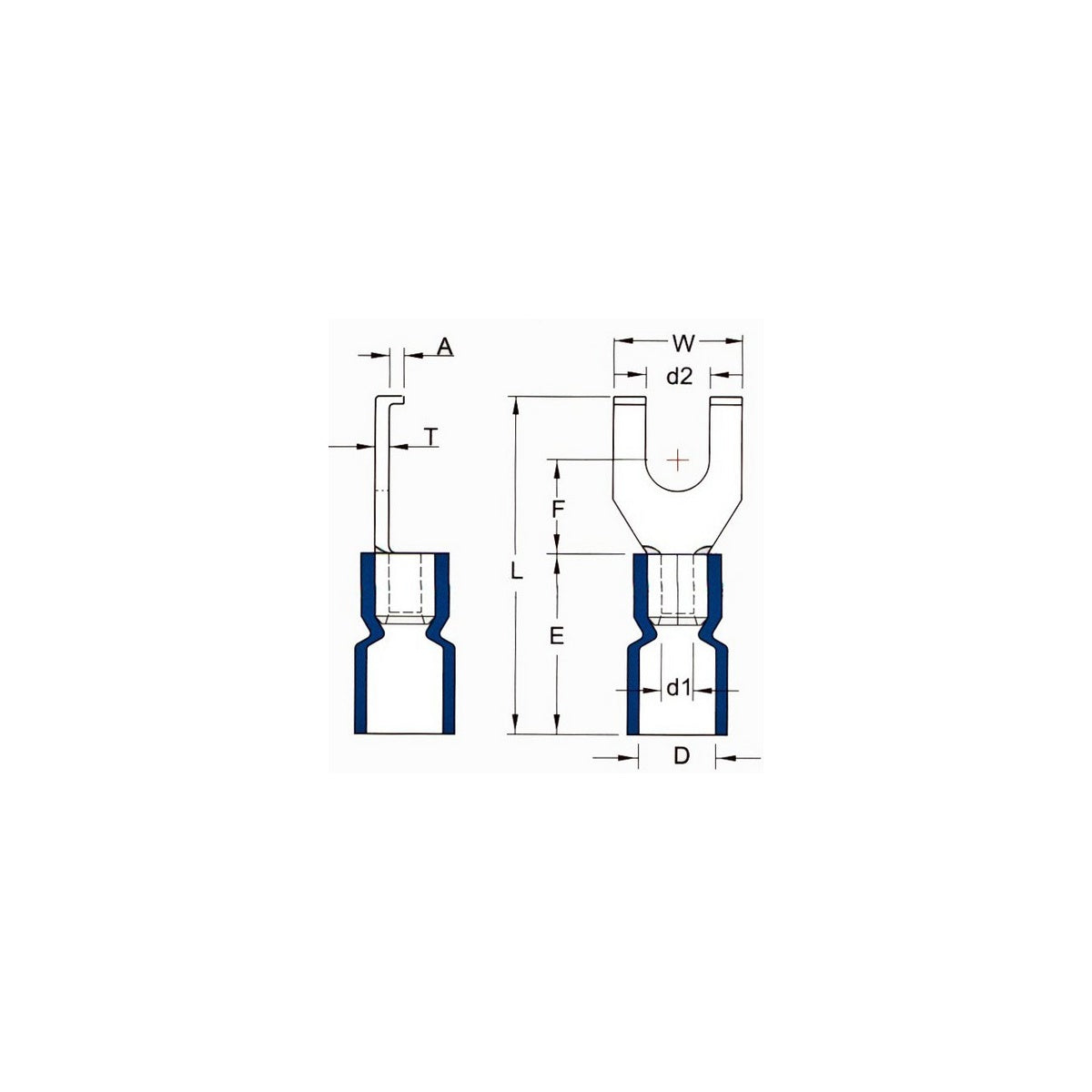

• Dimensions (inches): L 0.827, D 0.177, D1 0.091, D2 0.146, E 0.453, F 0.205, W 0.295, T 0.031

Features

• Color-coded insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plated finish provides corrosion resistance
• Easy entry expanded insulation eliminates strand hang-up, improving crimping rates and termination reliability
• Wire range stamped on the surface for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve provide excellent contact and mechanical stress relief at insulation and barrel junction
• Flanged tabs increase pull-out resistance
• UL, cUL, and RoHS certified

Downloads & Links

• Spec Sheet
