Vinyl Insulated Female Disconnects - 22-16 Wire, .032x.250 Tab | Electrical Connectors

This product is a vinyl insulated female disconnect connector designed for wire sizes 22 to 16 AWG. Manufactured by Morris Products, it is intended for reliable electrical connections in wire and cable applications. The connector features a copper alloy terminal with vinyl insulation, suitable for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant terminals for lighting solutions and general electrical wiring.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Tab Size: .032 x .250 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 22 AWG - 9 Amps
• Amp Rating: 20 AWG - 12 Amps
• Amp Rating: 18 AWG - 17 Amps
• Amp Rating: 16 AWG - 18 Amps

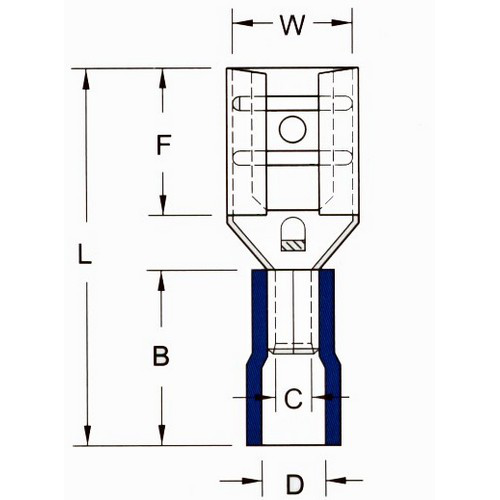

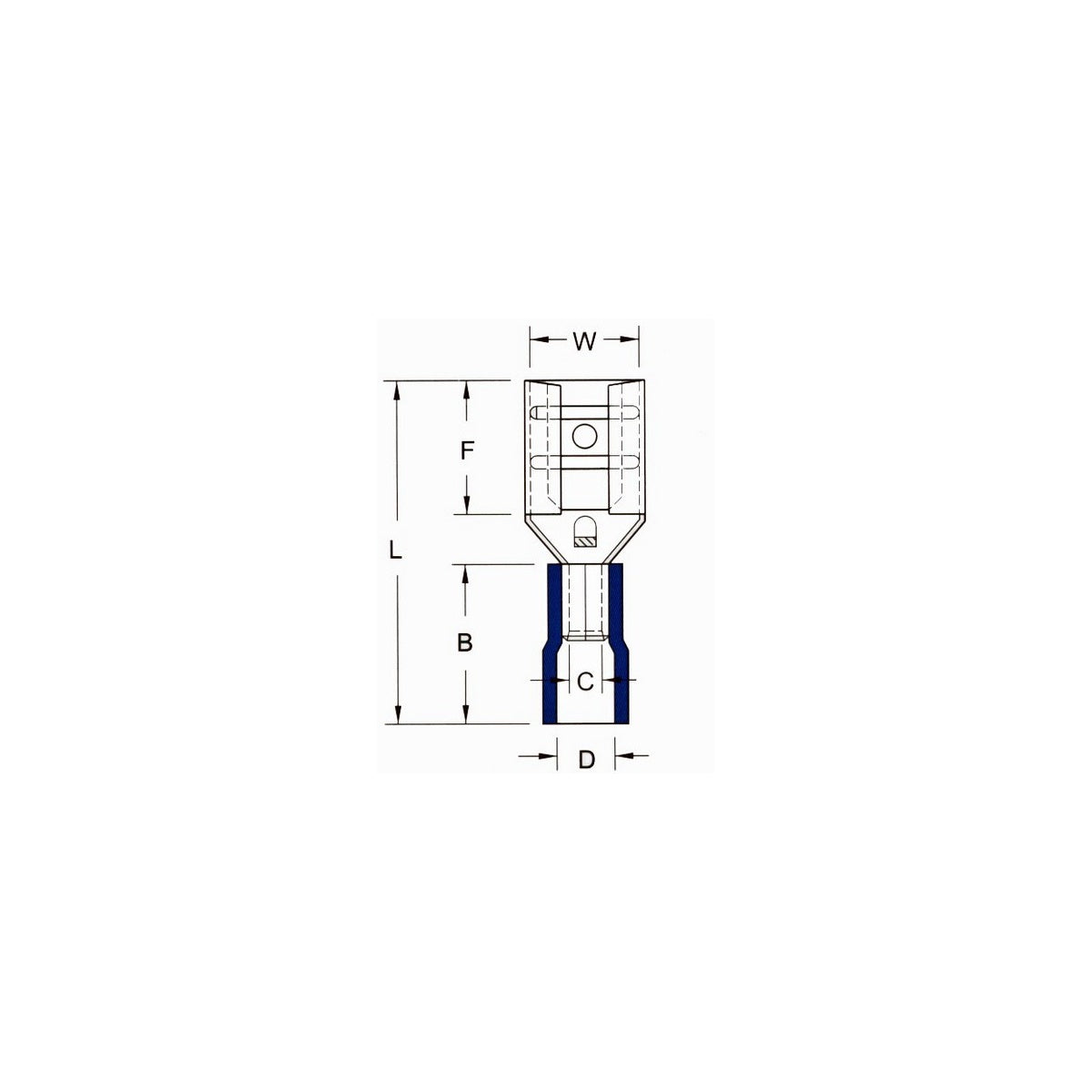

• Dimensions:
  • T: 0.016 inches
  • L: 0.807 inches
  • B: 0.394 inches
  • C: 0.067 inches
  • D: 0.157 inches
  • F: 0.287 inches
  • W: 0.26 inches
• Product Weight: 0.0020 lbs

Features

• Vinyl color-coded insulation for easy wire gauge identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation eliminates strand ‚Äúhang up‚Äù and offers strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range is stamped on the surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel design ensures strong pull-out force resistance and reliable electrical contact
• UL, cUL, and RoHS certified

Downloads & Links

• Spec Sheet
