Vinyl Insulated Female Disconnects - 22-16 Wire, .032x.187 Tab | Electrical Connectors

The Vinyl Insulated Female Disconnects by Morris Products are designed for reliable electrical connections in wire and cable applications. These connectors feature vinyl insulation with color coding for easy identification, suitable for wire sizes 22-16 AWG. Ideal for electrical distributors and switchgear suppliers, they provide secure and corrosion-resistant connections in various lighting solutions and electrical installations.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Tab Size: .032 x .187 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-O
• Amp Rating: 22 AWG - 9 Amps
• Amp Rating: 20 AWG - 12 Amps
• Amp Rating: 18 AWG - 17 Amps
• Amp Rating: 16 AWG - 18 Amps

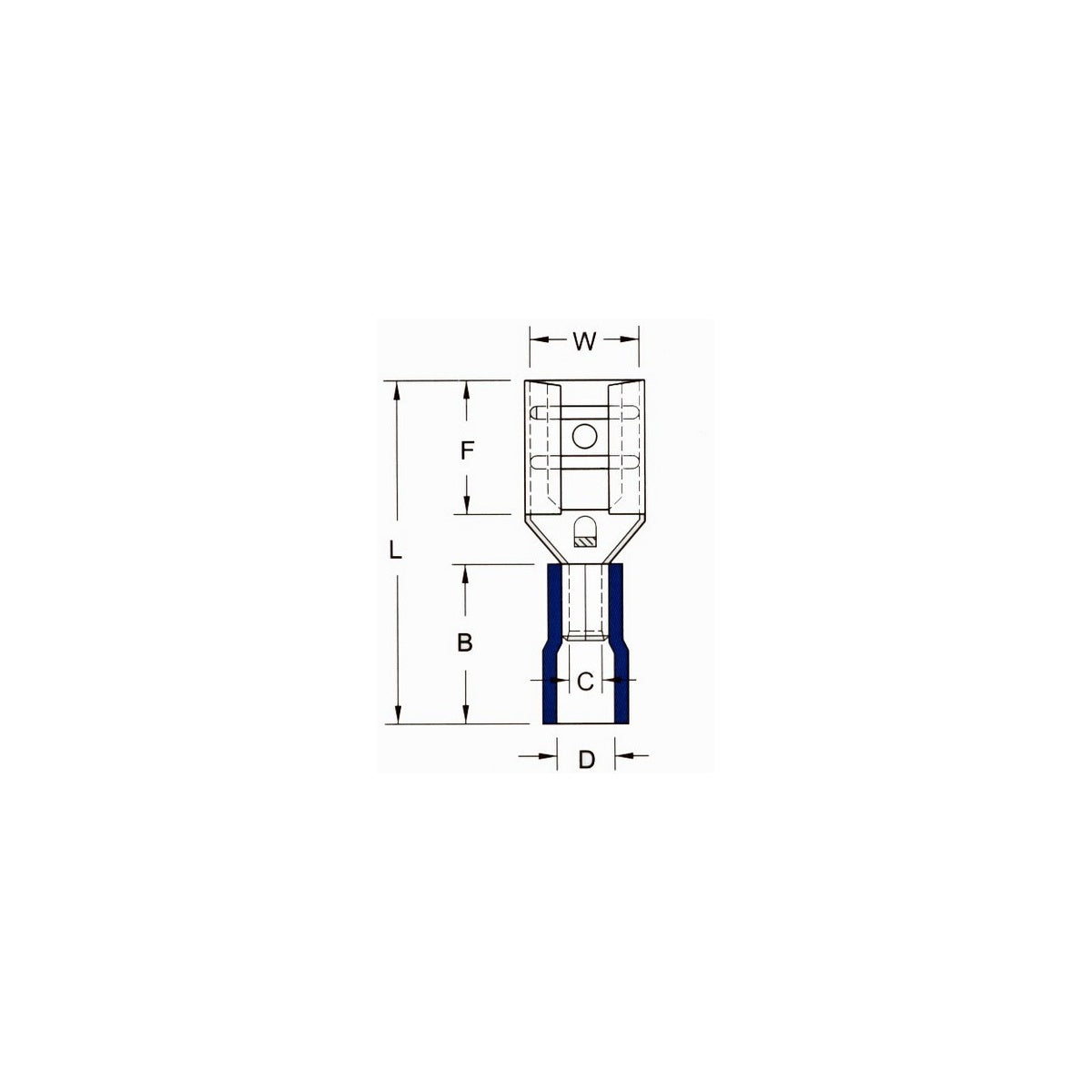

• Dimensions (inches): T - 0.016, L - 0.748, B - 0.394, C - 0.067, D - 0.157, F - 0.252, W - 0.197

Features

• Vinyl color-coded insulation for quick wire size identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation design prevents strand hang-up and offers strain relief
• Excellent resistance to UV, temperature, and chemicals
• Wire range stamped on the surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel enhances pull-out force resistance and electrical contact reliability
• UL, cUL, and RoHS certified for safety and environmental compliance
