Vinyl Insulated Female Disconnects - 22-16 Wire, .032x.110 Tab | Electrical Connector

This vinyl insulated female disconnect connector is designed for electrical distributors and lighting solutions requiring reliable wire and cable connections. Manufactured by Morris Products, it is suitable for wire sizes 22-16 AWG and provides a secure, corrosion-resistant connection for various switchgear and electrical applications.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Tab Size: 0.032 x 0.110 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps

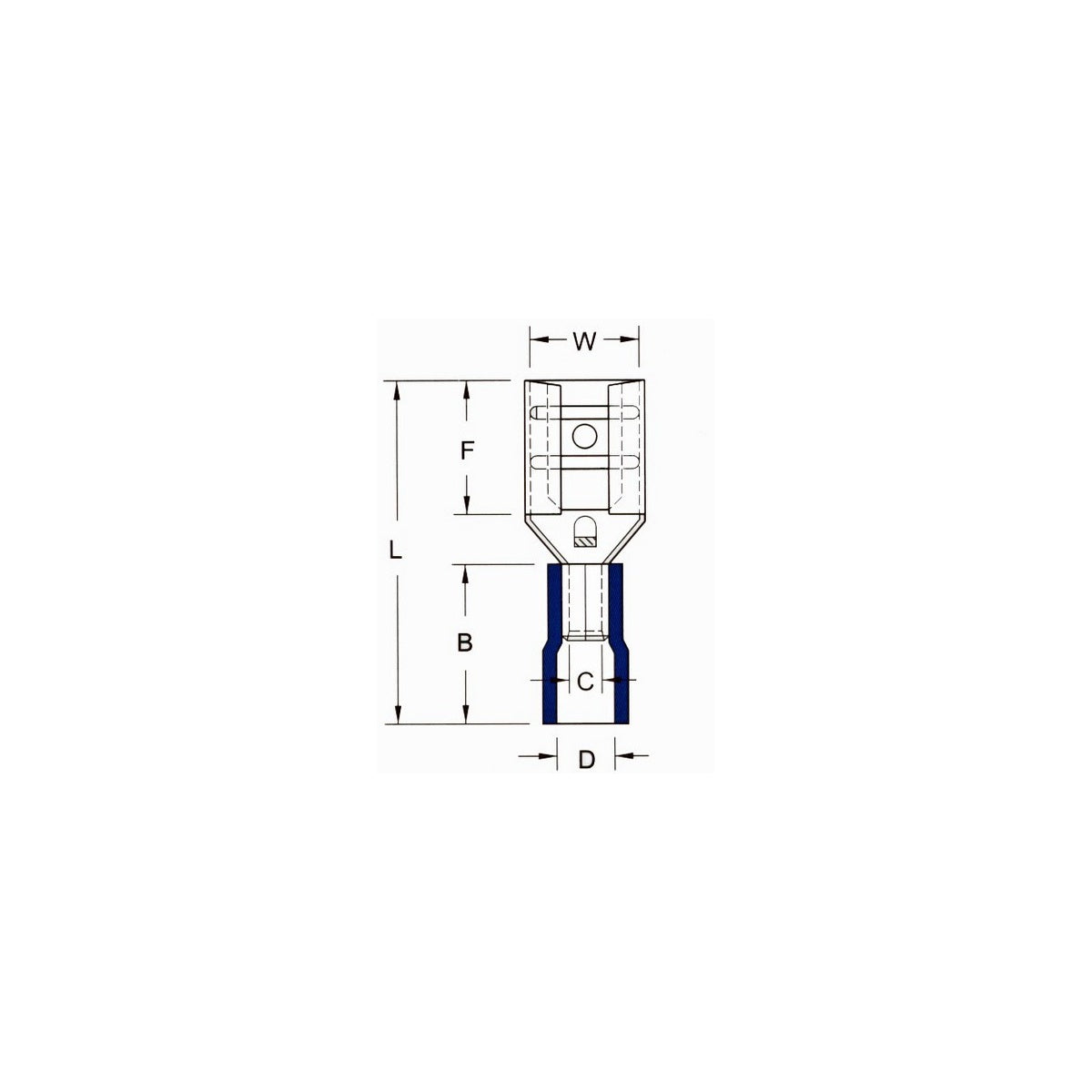

• Dimensions (inches): T - 0.012, L - 0.732, B - 0.394, C - 0.067, D - 0.157, F - 0.256, W - 0.126

Features

• Vinyl color-coded insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plated for corrosion resistance
• Expanded insulation eliminates strand ‚Äúhang up‚Äù and provides strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent pull-out force resistance and electrical contact
• UL, cUL, and RoHS certified

Downloads & Links

• Spec Sheet
