Vinyl Insulated Female Disconnects - 22-16 Wire, .020x.205 Tab | Electrical Connectors

This vinyl insulated female disconnect connector is designed for reliable electrical connections in wire and cable assemblies. Manufactured by Morris Products, it is suitable for use in electrical distribution and lighting solutions where secure, corrosion-resistant terminations are required. The connector supports wire sizes 22 to 16 AWG and features a .020 x .205 inch tab size, making it compatible with standard NEMA tabs. Its vinyl insulation provides strain relief and resistance to UV, temperature, and chemicals, ensuring durability in various environments.

Specifications

• Material: Brass
• Finish: Electro-tin plated
• Color: Red
• Wire Range: 22-16 AWG
• Tab Size: .020 x .205 inch
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 22 AWG - 9 Amps
• Amp Rating: 20 AWG - 12 Amps
• Amp Rating: 18 AWG - 17 Amps
• Amp Rating: 16 AWG - 18 Amps

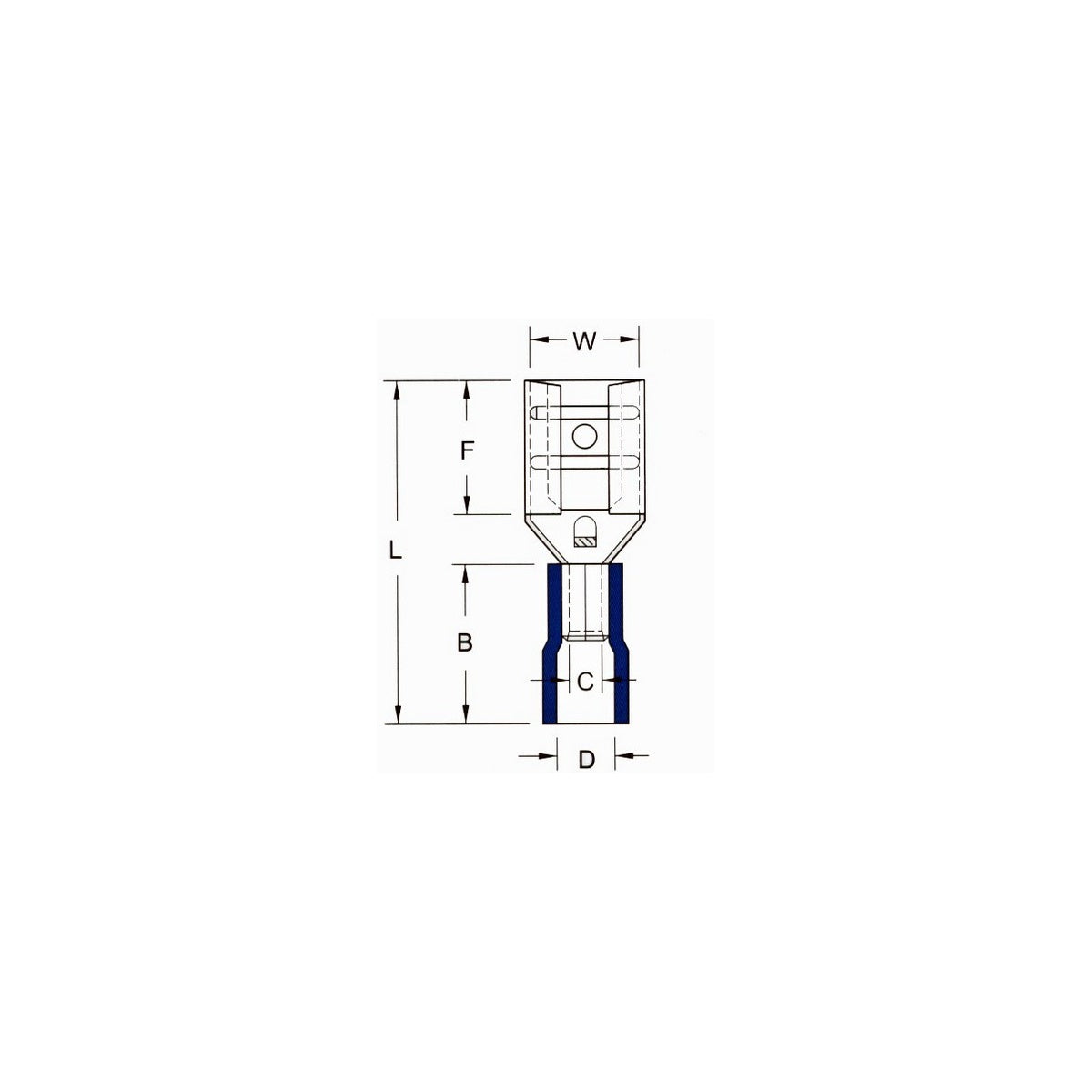

• Dimensions (inches): T - 0.014, L - 0.728, B - 0.394, C - 0.067, D - 0.157, F - 0.26, W - 0.224

Features

• Vinyl color-coded insulation for easy identification
• Manufactured from high strength copper alloy (brass base)
• Electro-tin plated for corrosion resistance
• Expanded insulation eliminates strand ‚Äúhang up‚Äù and provides strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on the surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures strong pull-out force resistance and reliable electrical contact
• UL, cUL, and RoHS certified

Downloads & Links

• Spec Sheet
