Vinyl Insulated Female Disconnects - 22-16 Wire, .020x.187 Tab Electrical Connector

This vinyl insulated female disconnect connector is designed for reliable electrical connections in wire and cable applications. Suitable for use by electrical distributors and switchgear suppliers, it supports wire sizes 22-16 AWG and features a .020 x .187 inch tab size. The connector is color-coded red for easy identification and constructed from high strength copper alloy with electro-tin plating for enhanced corrosion resistance.

Specifications

• Material: Brass
• Insulation Type: Vinyl
• Color: Red
• Wire Range: 22-16 AWG
• Tab Size: .020 x .187 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-O
• Amp Rating: 22 AWG - 9 Amps
• Amp Rating: 20 AWG - 12 Amps
• Amp Rating: 18 AWG - 17 Amps
• Amp Rating: 16 AWG - 18 Amps

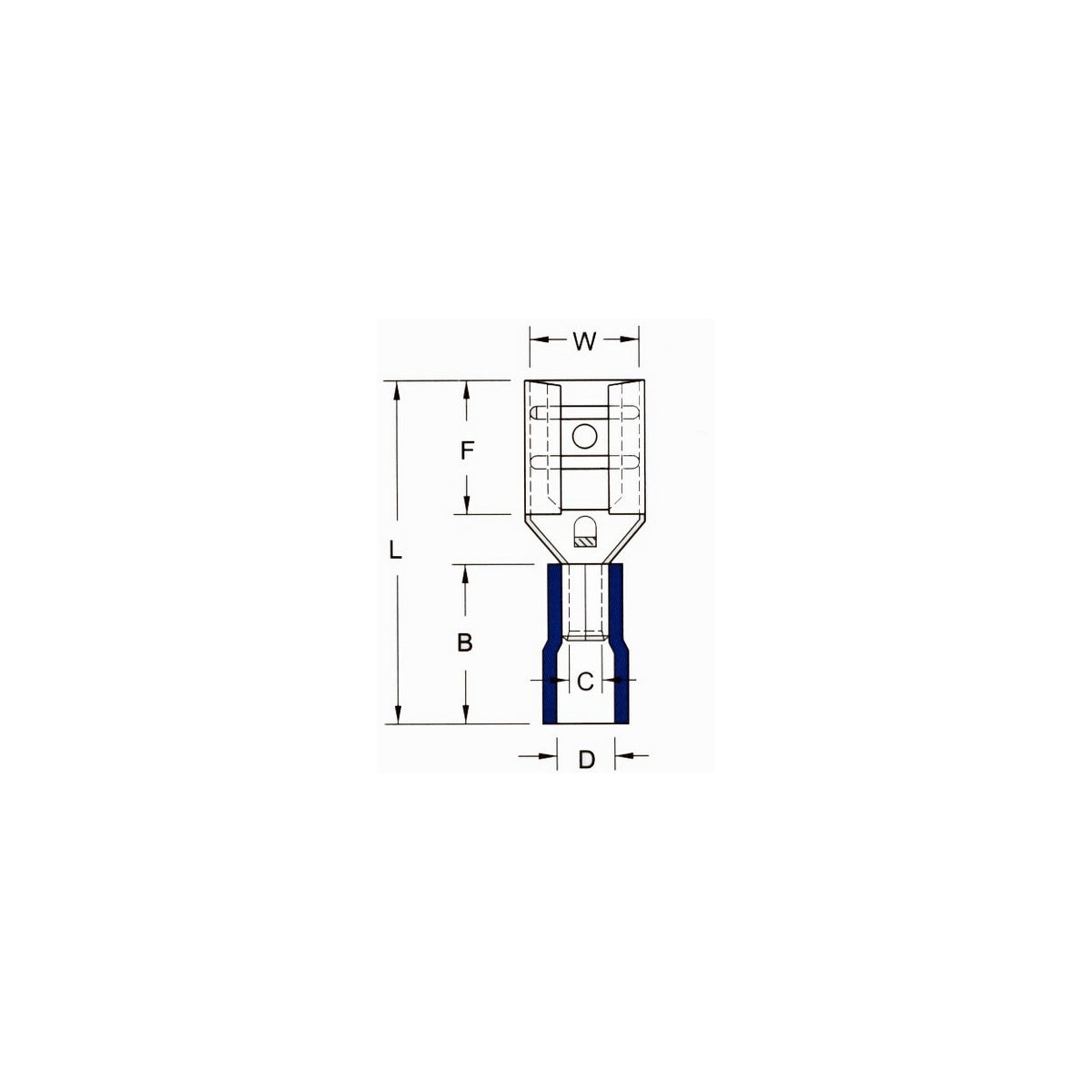

• Dimensions (inches): T - 0.016, L - 0.748, B - 0.394, C - 0.067, D - 0.157, F - 0.252, W - 0.197

Features

• Vinyl color-coded insulation for quick wire size identification
• Manufactured from high strength copper alloy with electro-tin plating for corrosion resistance
• Expanded insulation design eliminates strand hang-up and provides strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on the surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures strong pull-out force resistance and reliable electrical contact
• UL, cUL, and RoHS certified

Downloads & Links

• Spec Sheet
