Vinyl Insulated Female Disconnects - 22-16 Wire, .020x.110 Tab | Electrical Wire Connectors

Vinyl Insulated Female Disconnects designed for secure and reliable wire connections in electrical distribution and lighting solutions. These connectors are suitable for wire sizes 22-16 AWG and feature a .020 x .110 inch tab size. Ideal for use by electrical distributors and switchgear suppliers requiring durable wire and cable termination components.

Specifications

• Material: Brass
• Insulation Type: Vinyl
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Tab Size: .020 x .110 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps

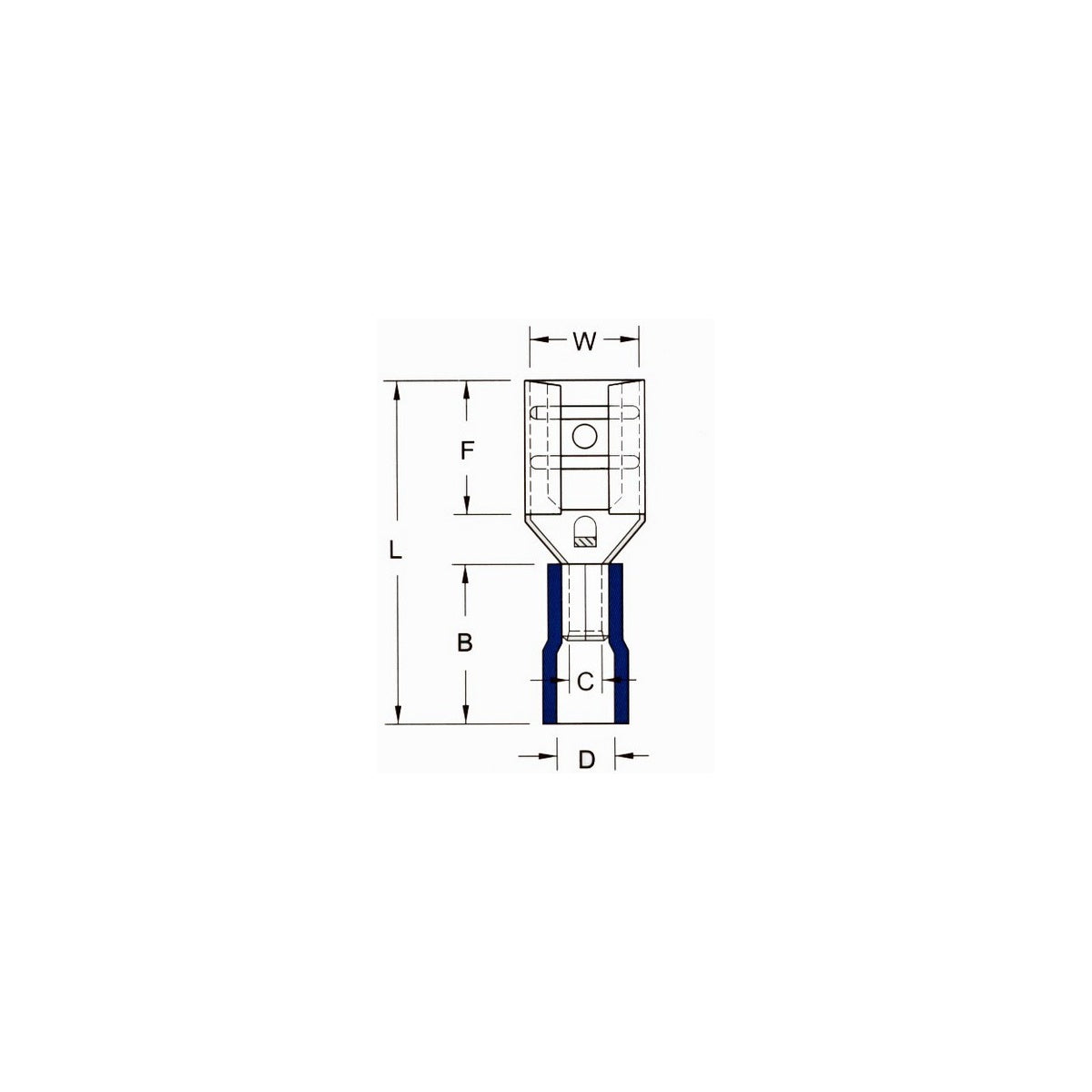

• Dimensions (inches): T - 0.012, L - 0.732, B - 0.394, C - 0.067, D - 0.157, F - 0.256, W - 0.126
• Certifications: UL, cUL, RoHS Compliant

Features

• Vinyl color-coded insulation for easy wire size identification
• Manufactured from high strength copper alloy for reliable conductivity
• Electro-tin plating provides corrosion resistance
• Expanded insulation eliminates strand hang-up and provides strain relief
• Excellent resistance to UV, temperature, and chemicals
• Wire range stamped on surface for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel design ensures strong pull-out force resistance and electrical contact

Downloads & Links

• Spec Sheet
