Vinyl Insulated Female Disconnects - 16-14 Wire, .032x.250 Tab Electrical Connector

This vinyl insulated female disconnect connector is designed for reliable electrical connections in wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers seeking durable and corrosion-resistant connectors for 16-14 AWG wire sizes. The connector features a copper alloy construction with electro-tin plating to ensure excellent electrical contact and resistance to environmental factors.

Specifications

• Material: Brass
• Insulation Type: Vinyl
• Color: Blue
• Wire Range: 16-14 AWG
• Tab Size: .032 x .250 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 14 AWG - 30 Amps; 16 AWG - 18 Amps
• Finish: Electro-Tin Plated

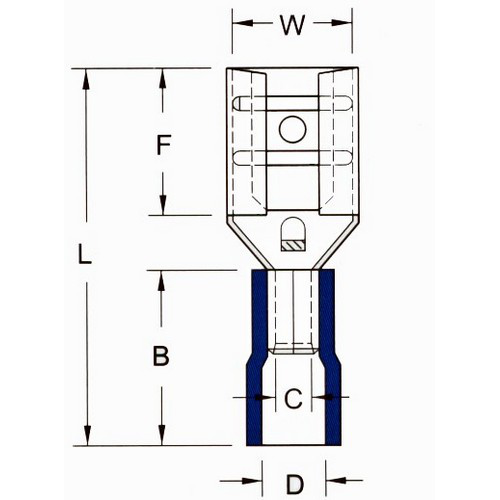

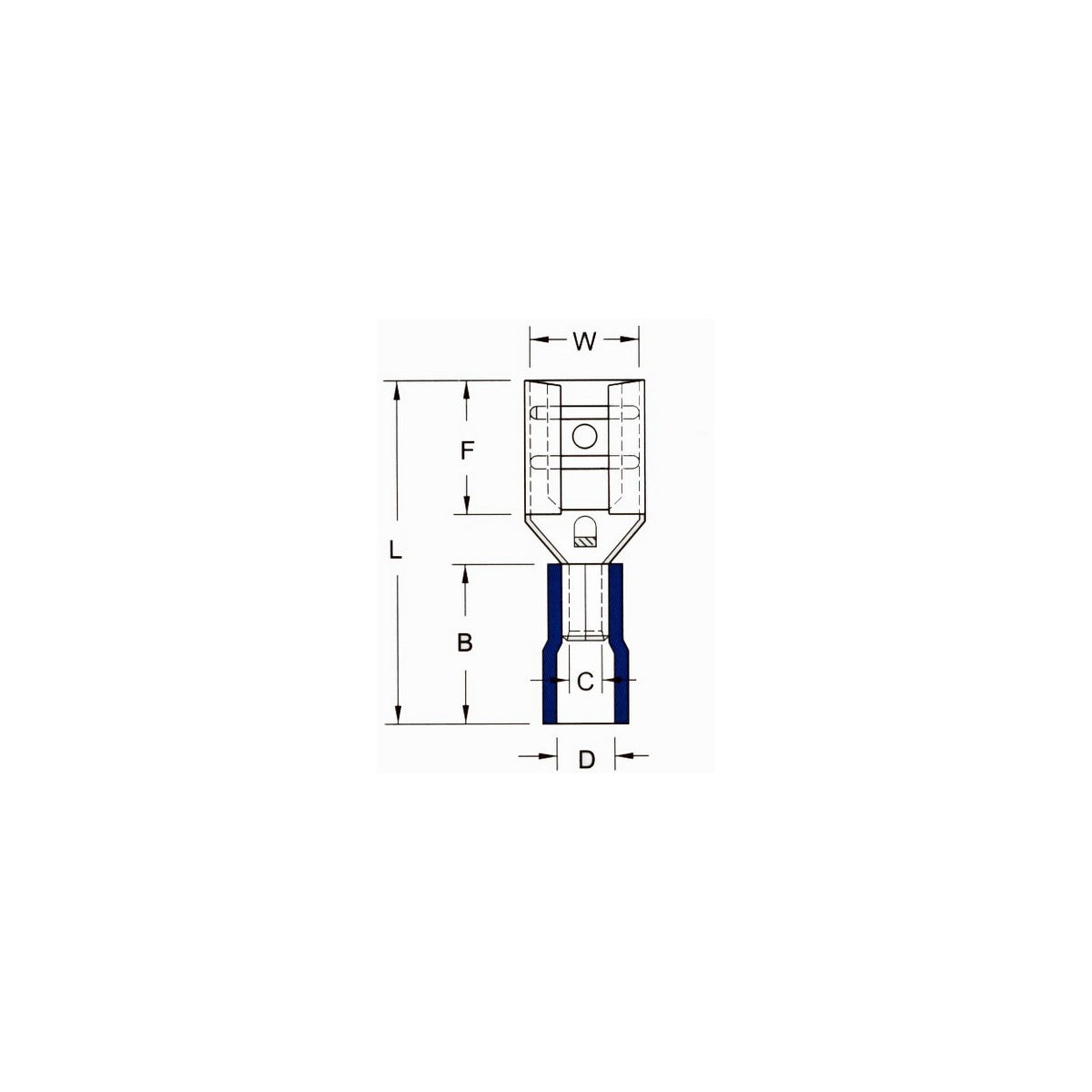

• Dimensions (inches): Length (L) - 0.807, Barrel Length (B) - 0.394, Barrel Diameter (D) - 0.177, Tab Width (W) - 0.26, Tab Length (F) - 0.287, Tab Thickness (T) - 0.016

Features

• Vinyl color-coded insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plated for corrosion resistance
• Expanded insulation design eliminates strand ‚Äúhang up‚Äù and provides strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent pull-out force resistance and electrical contact
• UL, cUL, and RoHS certified
