Vinyl Insulated Female Disconnects - 16-14 Wire, .032x.187 Tab | Electrical Connectors

This vinyl insulated female disconnect connector is designed for secure and reliable electrical connections in wire and cable applications. Suitable for use by electrical distributors and switchgear suppliers, it supports wire sizes 16-14 AWG and features a .032 x .187 inch tab for compatibility with standard terminals. The connector is constructed from high-strength copper alloy with electro-tin plating for enhanced corrosion resistance, making it ideal for various lighting solutions and electrical wiring tasks.

Specifications

• Material: Brass
• Insulation Type: Vinyl
• Color: Blue
• Wire Range: 16-14 AWG
• Tab Size: .032 x .187 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 30 Amps (14 AWG), 18 Amps (16 AWG)

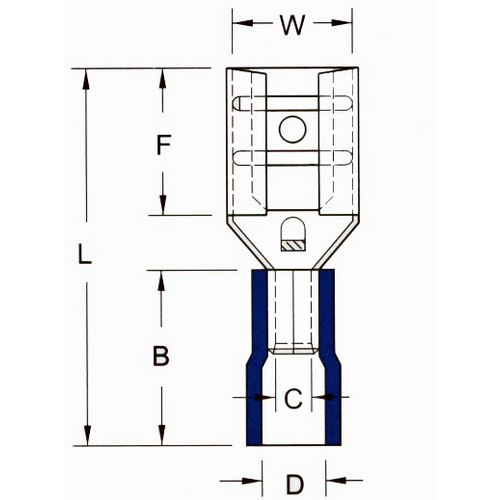

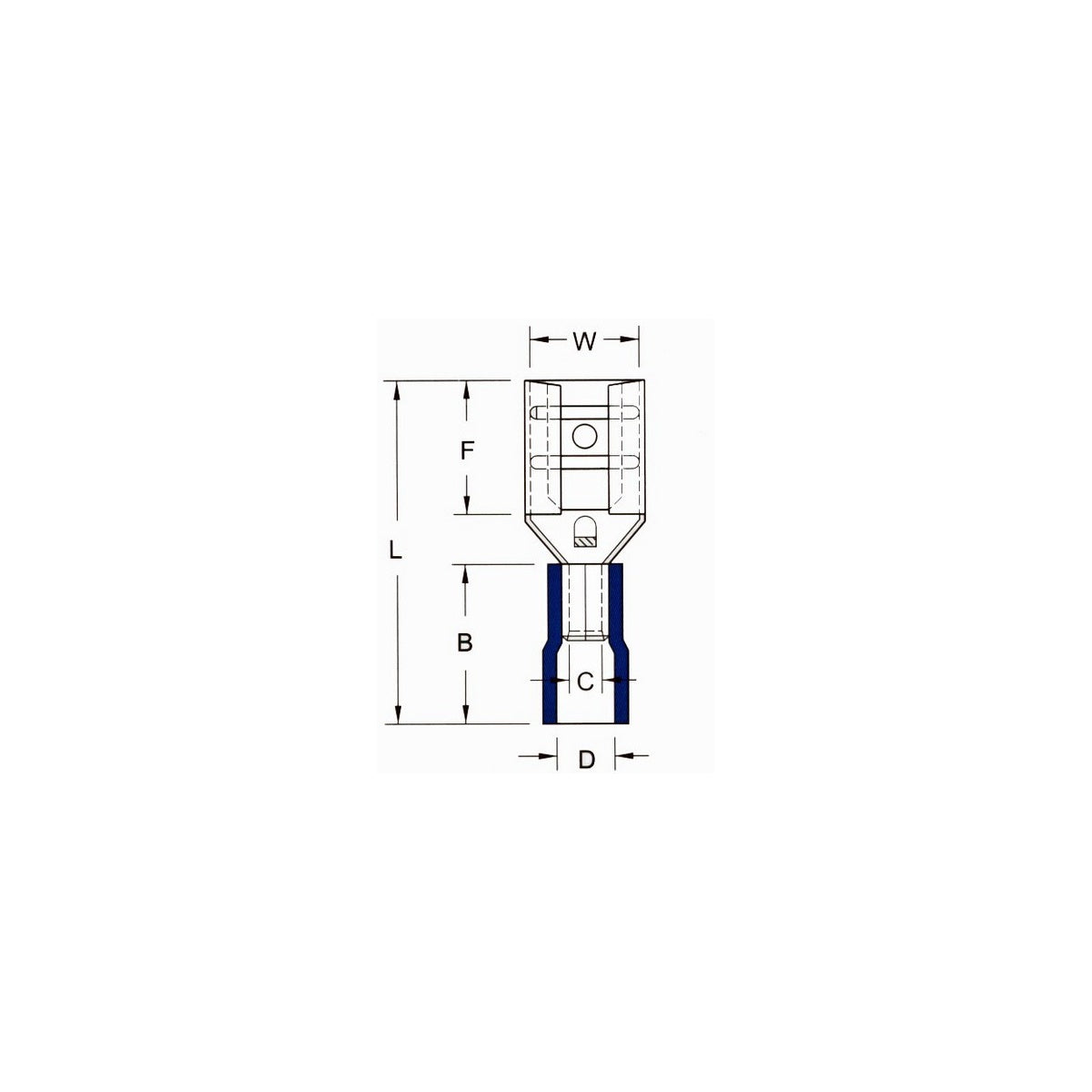

• Dimensions (inches): Length (L) 0.748, Barrel Length (B) 0.394, Barrel Diameter (D) 0.177, Tab Width (W) 0.197, Tab Height (F) 0.252, Tab Thickness (T) 0.016, Tab Opening (C) 0.091
• Finish: Electro-Tin Plated
• Certifications: UL, cUL, RoHS Compliant

Features

• Vinyl color-coded insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation design eliminates strand hang-up and provides strain relief
• Wire range stamped on surface for quick verification
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent pull-out force resistance and electrical contact
• UV, temperature, and chemical resistant insulation
