Vinyl Insulated Female Disconnects - 16-14 Wire, .032x.110 Tab | Electrical Wire Connectors

Vinyl Insulated Female Disconnects designed for reliable electrical connections in wire and cable applications. These connectors are suitable for use by electrical distributors and switchgear suppliers requiring durable, insulated terminals for 16-14 AWG wire sizes. The blue vinyl insulation provides color-coded identification and enhanced strain relief, making them ideal for lighting solutions and general electrical wiring tasks.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Color: Blue
• Wire Range: 16-14 AWG
• Tab Size: 0.032 x 0.110 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 14 AWG - 30 Amps, 16 AWG - 18 Amps

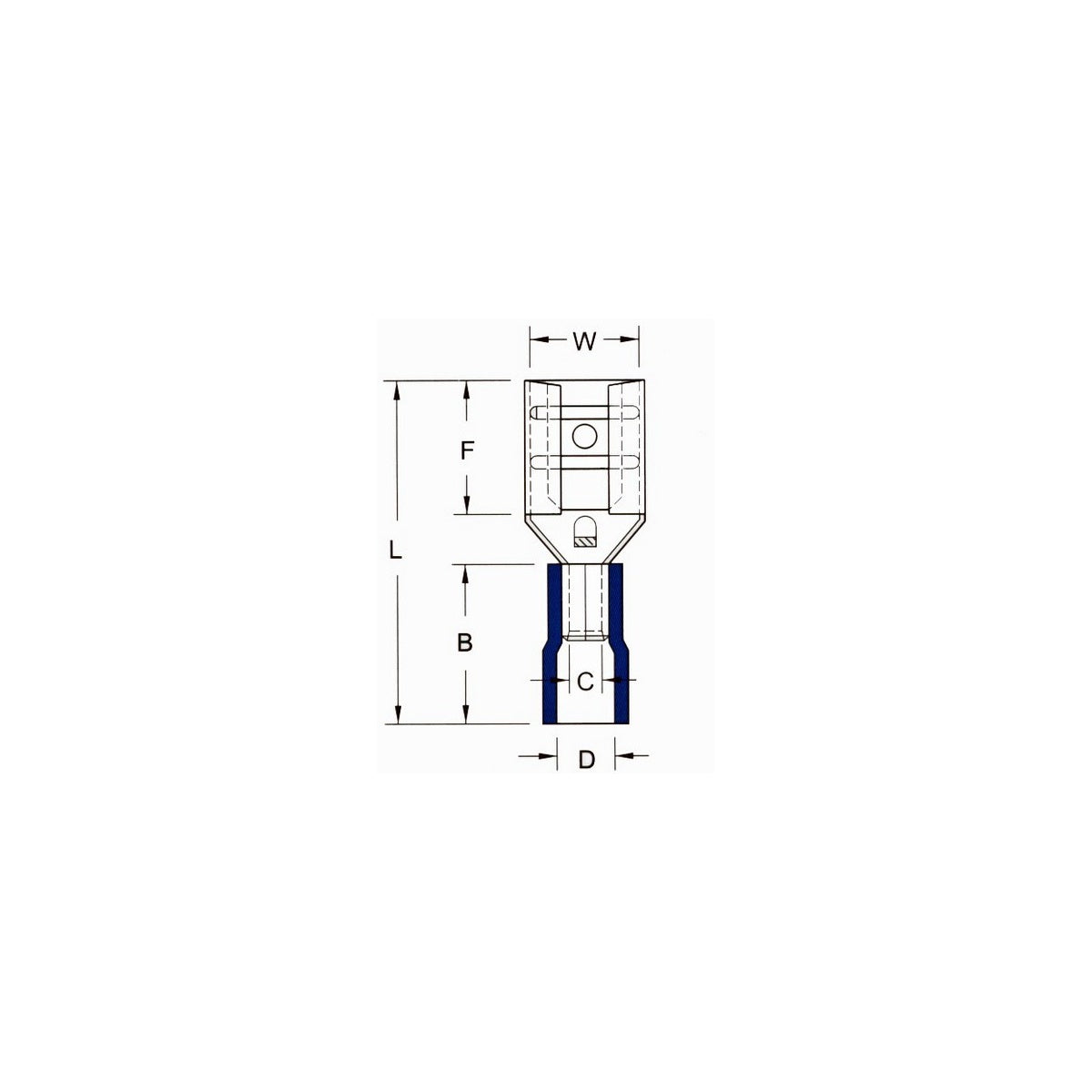

• Dimensions (inches): Length (L) 0.732, Barrel Length (B) 0.394, Barrel Diameter (C) 0.067, Tab Width (D) 0.177, Tab Length (F) 0.256, Tab Thickness (T) 0.012, Tab Width (W) 0.126
• Certifications: UL, cUL, RoHS Compliant

Features

• Vinyl color-coded insulation for easy identification
• Manufactured from high strength brass alloy with electro-tin plating for corrosion resistance
• Expanded insulation eliminates strand hang-up and provides strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures strong pull-out force resistance and reliable electrical contact
