Vinyl Insulated Female Disconnects - 16-14 Wire, .020x.205 Tab | Electrical Connectors

The Vinyl Insulated Female Disconnect Connectors by Morris Products are designed for secure and reliable electrical connections in wire and cable assemblies. Suitable for use by electrical distributors and switchgear suppliers, these connectors feature vinyl insulation for easy identification and enhanced durability. They are ideal for lighting solutions and general electrical applications requiring 16-14 AWG wire compatibility.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Insulation Type: Vinyl
• Color: Blue
• Wire Range: 16-14 AWG
• Tab Size: 0.020 x 0.205 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amperage Rating: 14 AWG - 30 Amps, 16 AWG - 18 Amps

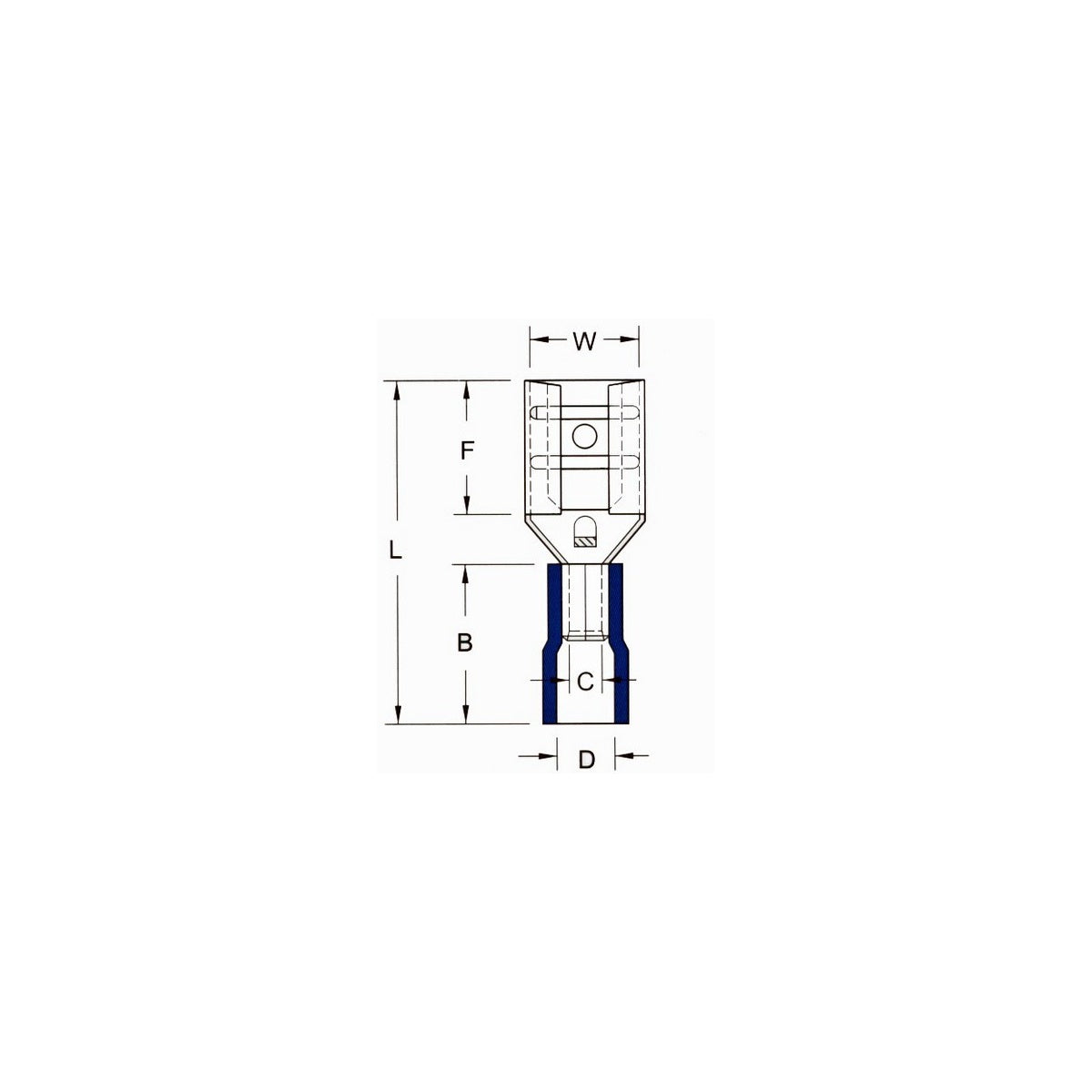

• Dimensions (inches): Length (L) 0.728, Barrel Length (B) 0.394, Barrel Diameter (D) 0.177, Tab Width (W) 0.224, Tab Height (F) 0.26, Tab Thickness (T) 0.014, Barrel Inner Diameter (C) 0.067
• Certifications: UL, cUL, RoHS Compliant

Features

• Vinyl color-coded insulation for easy wire gauge identification
• Manufactured from high strength brass alloy for durability
• Electro-tin plated surface for corrosion resistance
• Expanded insulation design eliminates strand ‚Äúhang up‚Äù and provides strain relief
• Excellent resistance to UV, temperature, and chemicals
• Wire range clearly stamped on connector surface for quick verification
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures strong pull-out force resistance and reliable electrical contact
