Vinyl Insulated Female Disconnects - 16-14 Wire, .020x.110 Tab Electrical Connector

This vinyl insulated female disconnect connector is designed for reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for electrical distributors and switchgear suppliers requiring durable, corrosion-resistant connectors for 16-14 AWG wire sizes. The blue vinyl insulation provides easy identification and strain relief, making it a practical component in lighting solutions and general electrical wiring.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Color: Blue
• Wire Range: 16-14 AWG
• Tab Size: 0.020 x 0.110 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 14 AWG - 30 Amps, 16 AWG - 18 Amps

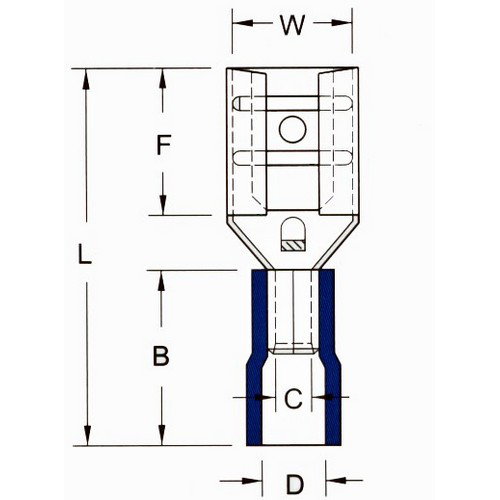

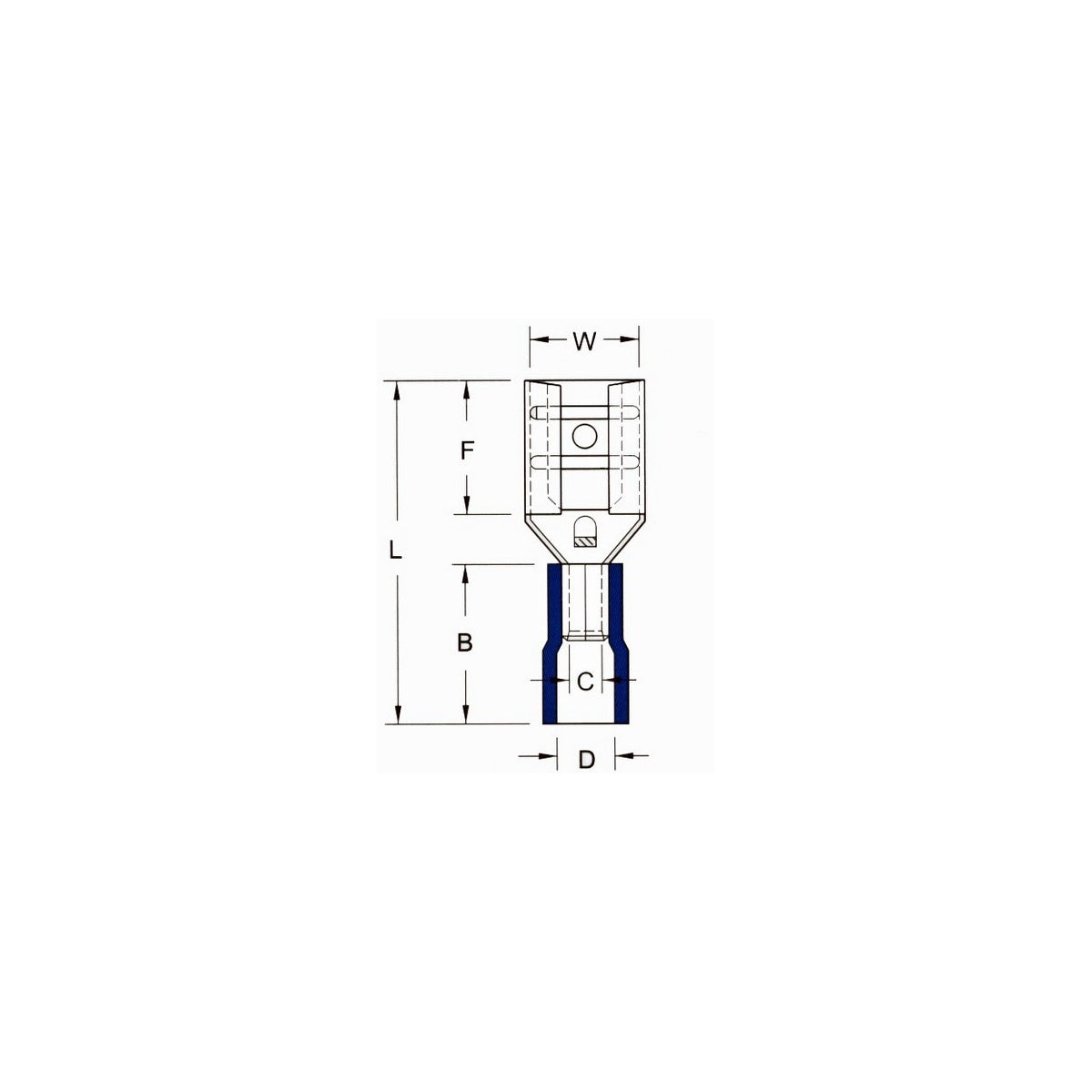

• Dimensions (inches): T - 0.012, L - 0.732, B - 0.394, C - 0.091, D - 0.177, F - 0.256, W - 0.126
• UL, cUL, RoHS Certified

Features

• Vinyl color-coded insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plated surface for corrosion resistance
• Expanded insulation eliminates strand hang-up and provides strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on the surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent pull-out force resistance and electrical contact

Downloads & Links

• Spec Sheet
