Vinyl Insulated Female Disconnects - 12-10 Wire, .032x.187 Tab Electrical Connectors

Vinyl Insulated Female Disconnects are designed for reliable electrical connections in wire and cable applications. These connectors are suitable for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant terminals for 10-12 AWG wire sizes. The yellow vinyl insulation provides easy identification and excellent resistance to UV, temperature, and chemicals, making them a practical choice for lighting solutions and general electrical wiring.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Color: Yellow
• Wire Range: 10-12 AWG
• Tab Size: .032 x .187 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-O
• Current Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)

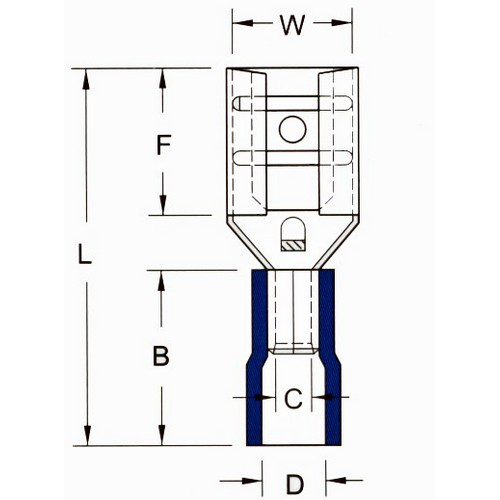

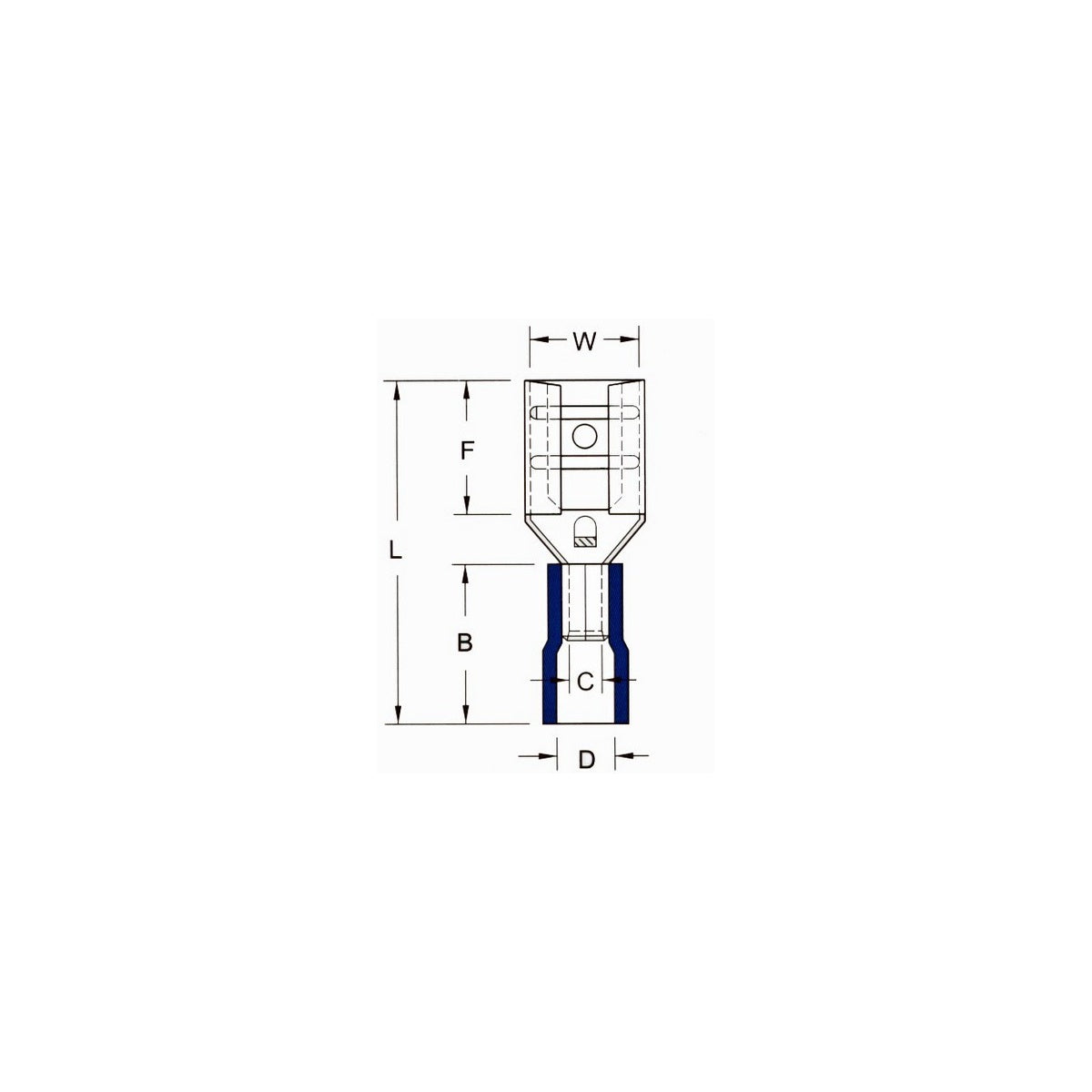

• Dimensions (inches): T 0.016, L 0.866, B 0.512, C 0.134, D 0.217, F 0.256, W 0.197
• Certifications: UL, cUL, RoHS

Features

• Vinyl color-coded insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plated surface provides corrosion resistance
• Expanded insulation design prevents strand hang-up and offers strain relief
• Wire range clearly stamped for quick interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent pull-out force resistance and electrical contact
