Vinyl Insulated Female Disconnects - 12-10 Wire, .032x.110 Tab Electrical Connector

This vinyl insulated female disconnect connector is designed for wire sizes 10-12 AWG, providing reliable electrical connections in wire and cable assemblies. Suitable for use by electrical distributors and switchgear suppliers, it offers corrosion resistance and strain relief, making it a practical component in lighting solutions and general electrical distribution applications.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Insulation Type: Vinyl
• Color: Yellow
• Wire Range: 10-12 AWG
• Tab Size: .032 x .110 inches
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)

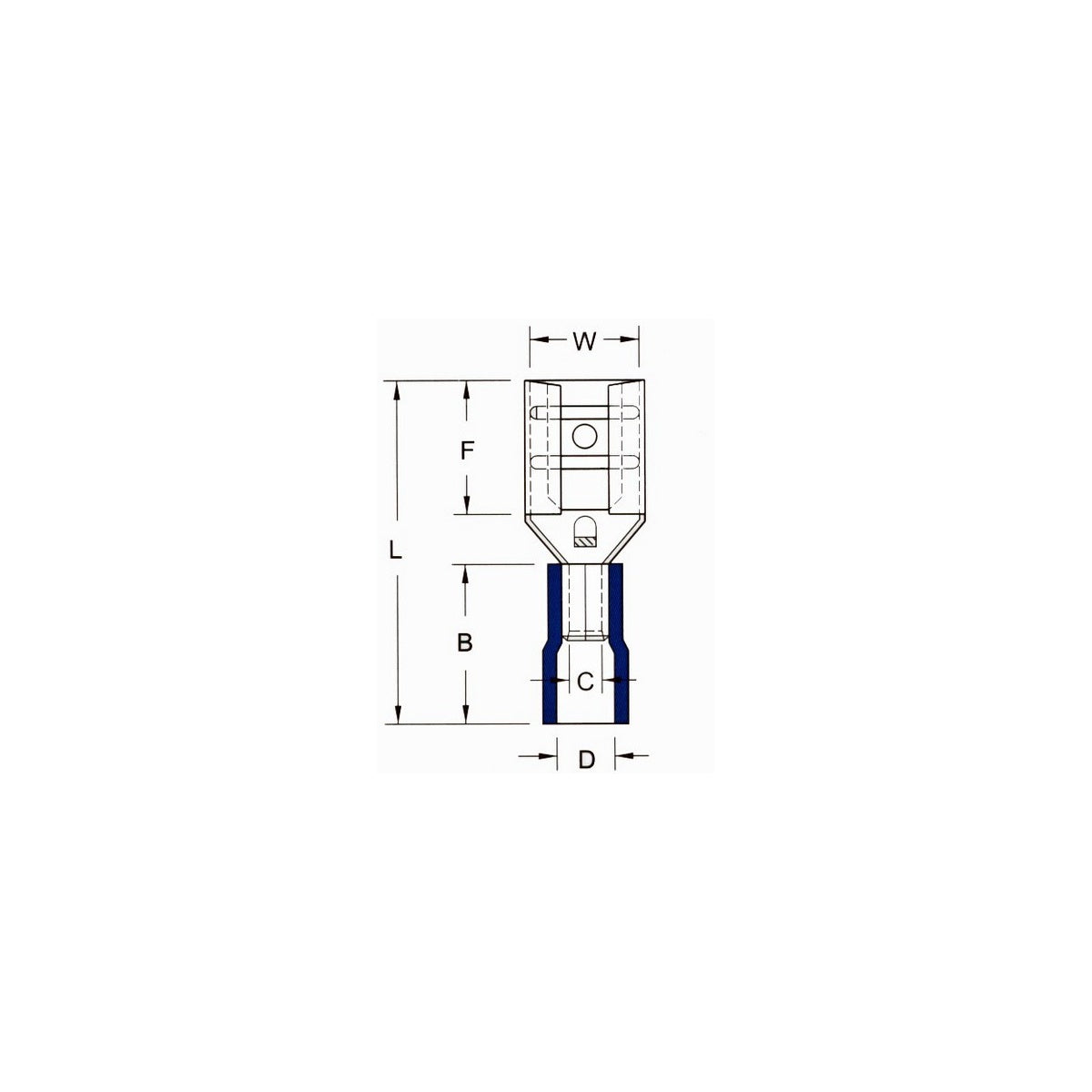

• Dimensions (inches): Length (L) 0.866, Barrel (B) 0.512, Tab Width (W) 0.126, Tab Height (F) 0.256, Barrel Diameter (D) 0.217, Barrel Inner Diameter (C) 0.134, Thickness (T) 0.016

Features

• Vinyl color-coded insulation for easy identification
• Manufactured from high strength copper alloy brass
• Electro-tin plated for corrosion resistance
• Expanded insulation eliminates strand ‚Äúhang up‚Äù and provides strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent pull-out force resistance and reliable electrical contact
• UL, cUL, and RoHS certified
