Vinyl Insulated Female Disconnects - 12-10 Wire, .020x.187 Tab Electrical Connectors

These vinyl insulated female disconnect connectors are designed for secure electrical connections in wire and cable assemblies. Suitable for 10-12 AWG wire sizes, they provide reliable termination solutions for electrical distributors and switchgear suppliers requiring durable and corrosion-resistant connectors. The connectors are color-coded yellow for easy identification and feature electro-tin plated copper alloy terminals to ensure excellent electrical contact and resistance to environmental factors.

Specifications

• Wire Range: 10-12 AWG
• Tab Size: 0.020 x 0.187 inches
• Material: Brass
• Finish: Electro-Tin Plated
• Insulation Type: Vinyl
• Color: Yellow
• Temperature Rating: 167¬∞F (75¬∞C)
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)

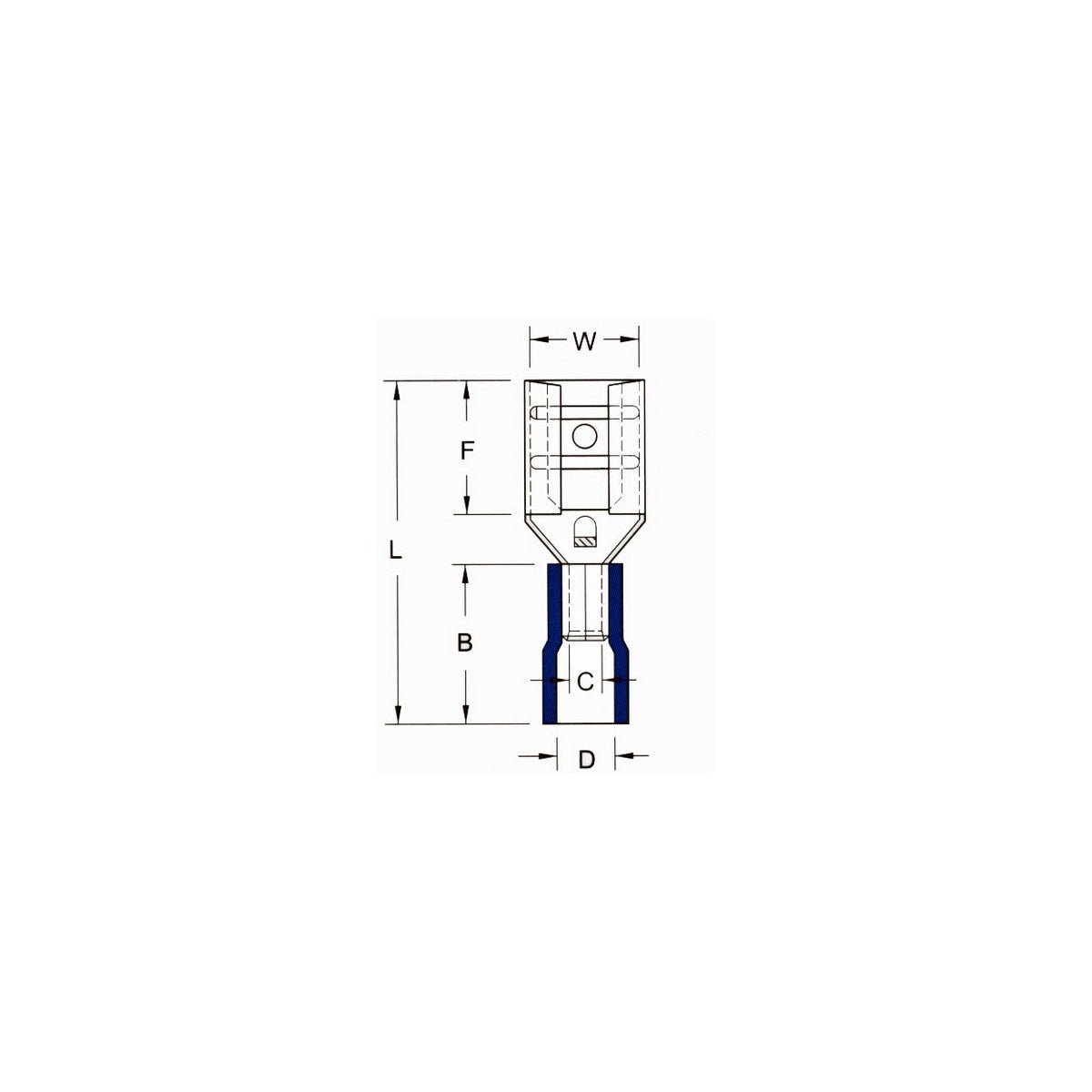

• Dimensions (inches): Length (L) 0.866, Barrel Length (B) 0.512, Barrel Diameter (D) 0.217, Tab Width (W) 0.197, Tab Height (F) 0.256, Tab Thickness (T) 0.016, Barrel Inner Diameter (C) 0.134
• UPC: 601986103305
• Product Weight: 0.0030 lbs
• Certifications: UL, cUL, RoHS Compliant

Features

• Vinyl color-coded insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation design eliminates strand ‚Äúhang up‚Äù and provides strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on the surface for clear interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel design ensures excellent pull-out force resistance and reliable electrical contact
