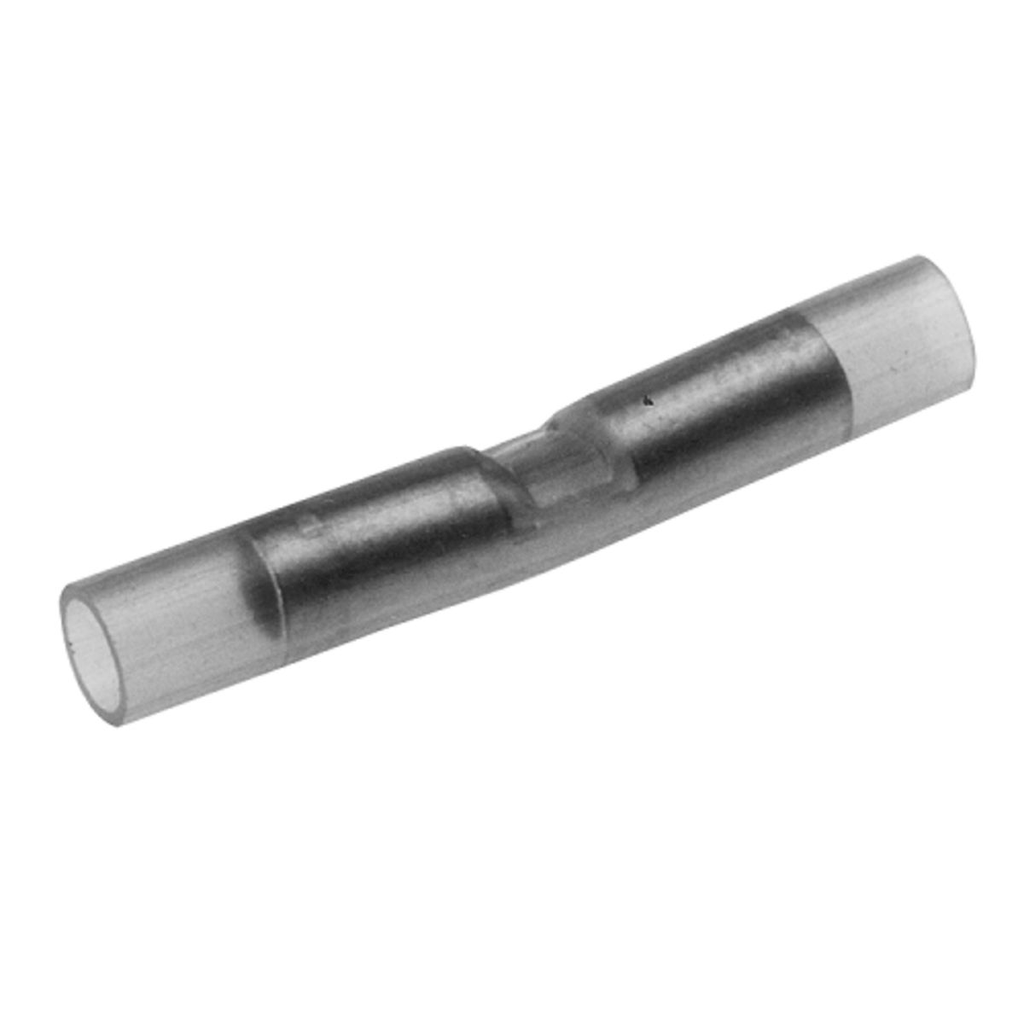

Vinyl Insulated Copper Splice for Electrical Wire and Cable Connections

This Vinyl Insulated Copper Splice is designed for accommodating a broad range of 600-volt cables, providing a reliable connection solution for electrical distributors and switchgear suppliers. It is suitable for use in wire and cable applications requiring a seamless butt splice with vinyl insulation for added protection and durability.

Specifications

• Name: Vinyl Insulated Copper Splice
• Material: Copper
• Insulation Type: Vinyl
• Connection Type: Seamless Butt Splice
• Splice Length: 1 inch
• Wire Size Range: 22-16 AWG
• Product Weight: 3.6 oz
• Width: 0.15 in
• Color Coding: Red
• Made in USA: Yes
• Country of Origin: United States
• Manufacturer: Burndy
• Manufacturer Part Number: SP16

Features

• Tin plated copper for corrosion resistance
• Vinyl insulated for electrical safety and durability
• Seamless butt splice design ensures secure and consistent connections
• Color-coded red for easy identification in wiring systems
• Compatible with a broad range of 600-volt cables
• Manufactured in the United States to meet quality standards

Downloads & Links

• PDF 3D Model Asset Reference
• IGS 3D Model Asset Reference
• STEP 3D Model Asset Reference
• Customer Notices Asset Reference
• Sales Drawing Asset Reference
• Spec Sheet
• Catalog Full Asset Reference
