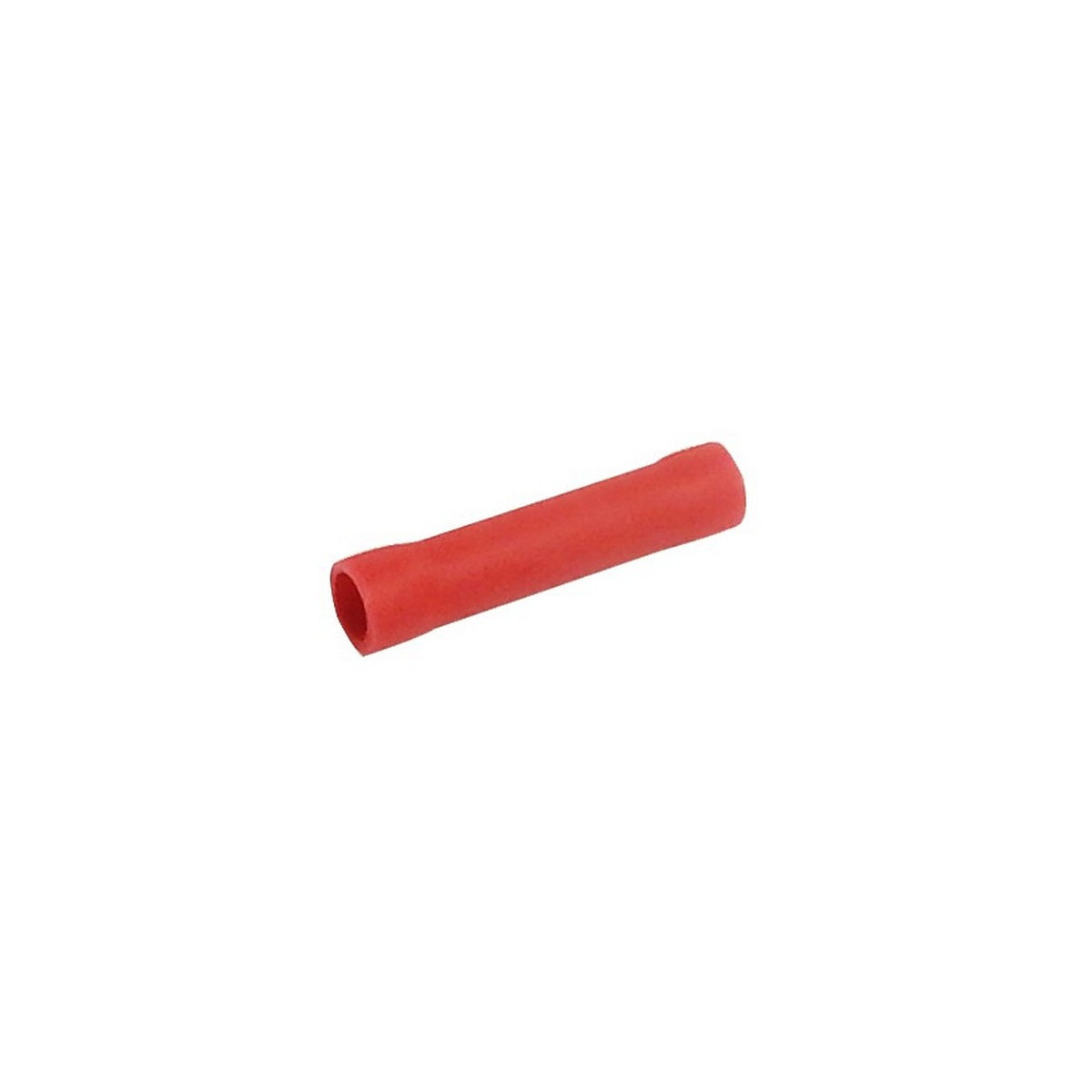

Vinyl Insulated Butt Splice Connectors 8 AWG – Wire and Cable Connector

The Vinyl Insulated Butt Splice Connectors 8 AWG provide a reliable electrical connection solution for wire splicing applications. Designed for electrical distributors and lighting solutions providers, these connectors are suitable for joining 8 AWG copper wires with enhanced mechanical and electrical performance. The red vinyl insulation offers color-coded identification, while the copper construction with electro-tin plating ensures corrosion resistance and durability in wire and cable assemblies.

Specifications

• Material: Tubular Copper
• Insulation Type: Vinyl
• Color: Red
• Wire Range: 8 AWG
• Temperature Rating: 75°C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 70 Amps
• Length: 1.398 inches (35.5 mm)
• Diameter (D): 0.335 inches (8.5 mm)
• Diameter (D1): 0.181 inches (4.5 mm)
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes

Features

• Color-coded vinyl insulation for easy identification
• Manufactured from high-strength tubular copper alloy
• Electro-tin plated finish for corrosion resistance
• Expanded insulation design eliminates strand hang-up, improving crimping reliability
• Wire range stamped on the surface for quick verification
• Funneled barrel and flared insulation sleeve provide excellent contact and mechanical stress relief at the insulation-barrel junction
