Vinyl Insulated Butt Splice Connectors 6 AWG – Wire and Cable Connector

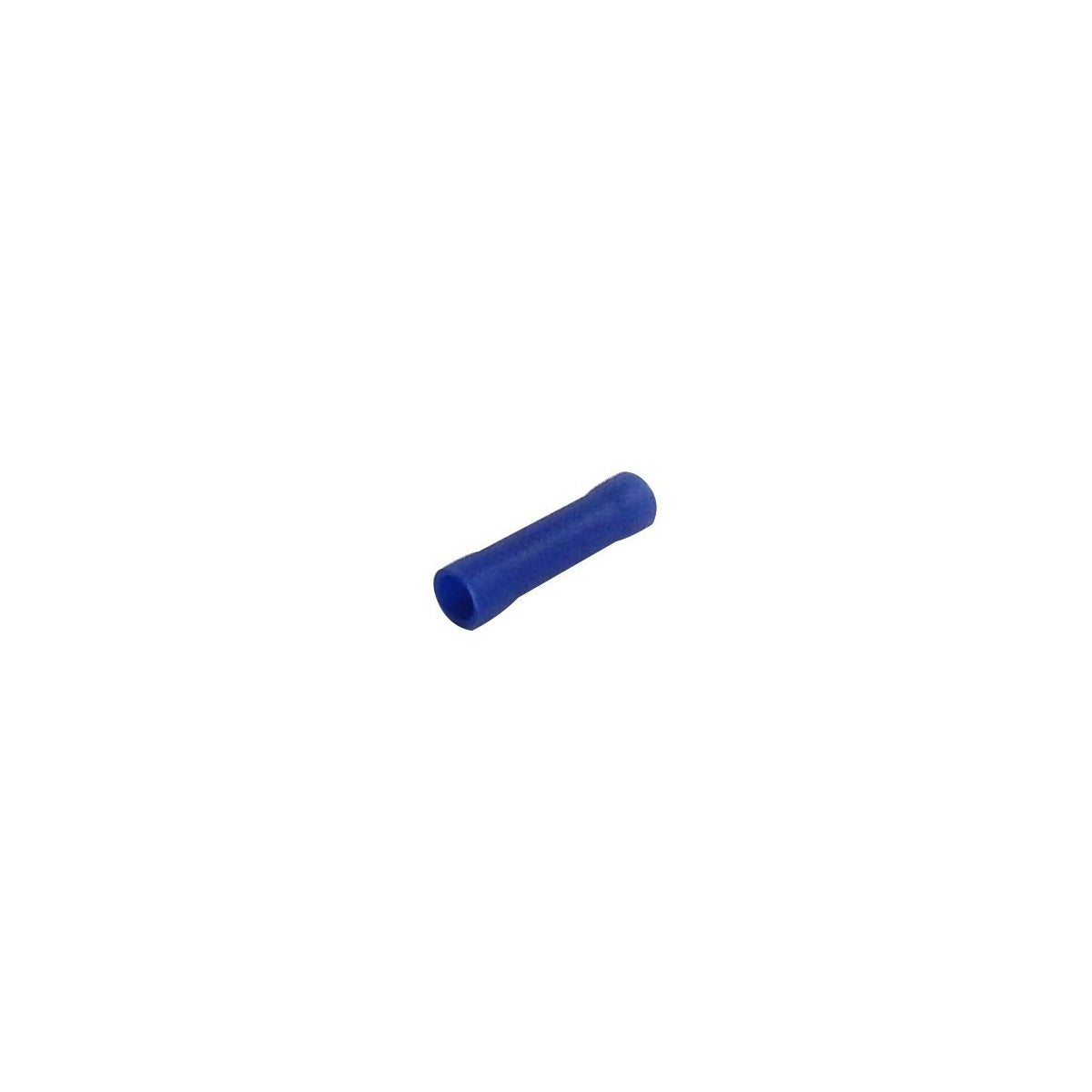

This Vinyl Insulated Butt Splice Connector is designed for reliable electrical connections in wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant connectors. The connector features a blue vinyl insulation for easy identification and is manufactured from high-strength tubular copper alloy with an electro-tin plated finish to resist corrosion. It supports 6 AWG wire sizes and is rated for 600 volts and 75°C operating temperature, making it appropriate for various lighting solutions and electrical distribution needs.

Specifications

• Material: Copper
• Insulation Type: Vinyl
• Color: Blue
• Wire Range: 6 AWG
• Voltage Rating: 600 V
• Temperature Rating: 75°C
• Flammability Rating: UL94V-O
• Amperage Rating: 95 Amps
• Length: 1.772 inches (45 mm)
• Diameter: 0.413 inches (10.5 mm)
• Inner Diameter: 0.232 inches (5.9 mm)
• Finish: Electro-Tin Plated
• Product Weight: 0.0030 lbs
• UPC: 601986121309

Features

• Color coded insulation for easy identification
• Manufactured from high strength tubular copper alloy
• Electro-tin plated for corrosion resistance
• Easy entry expanded insulation eliminates strand hang-up, improving crimping rates and termination reliability
• Wire range stamped on the surface for easy interpretation
• Funneled barrel and flared insulation sleeve provide excellent contact and mechanical stress relief at insulation and barrel junction
