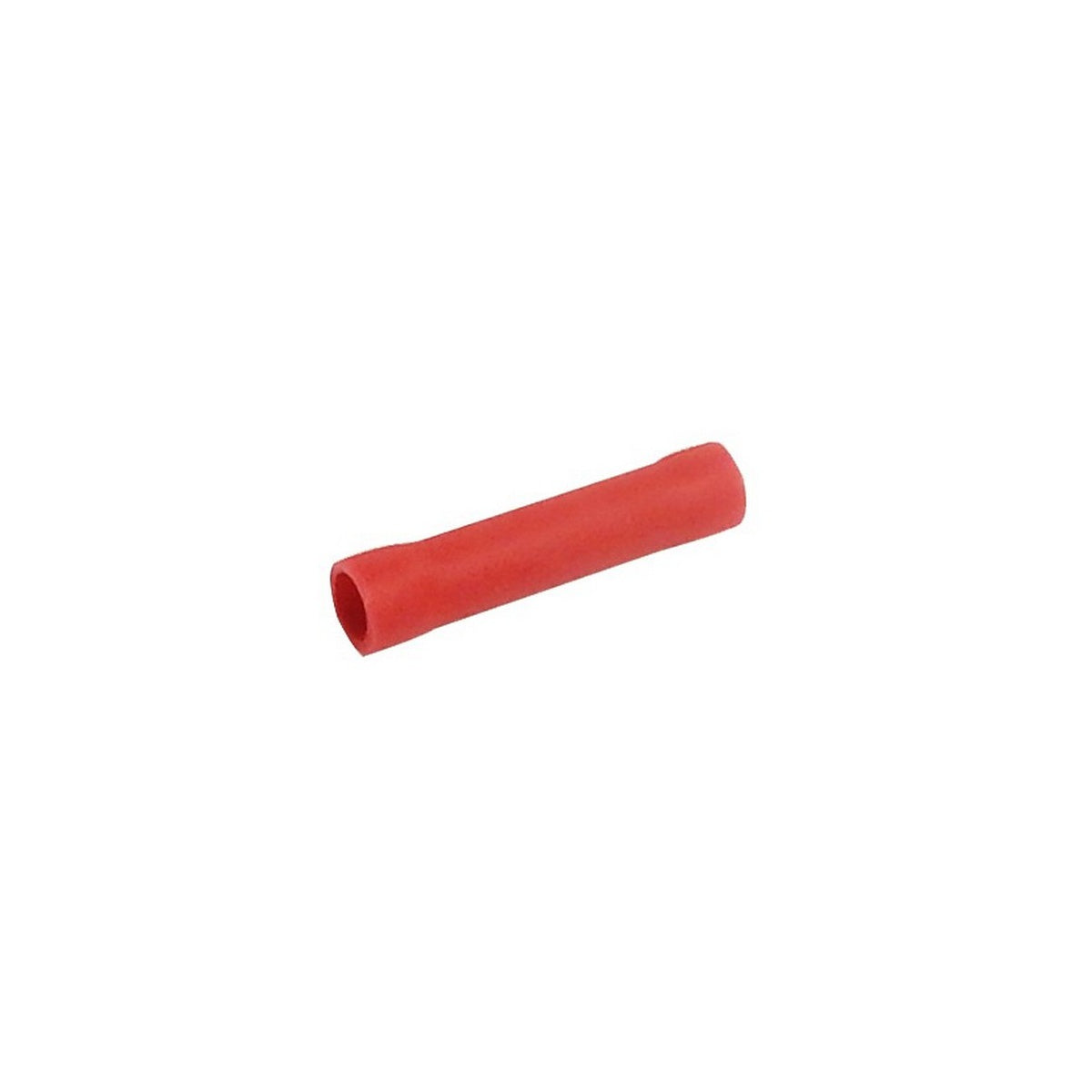

Vinyl Insulated Butt Splice Connectors 2 AWG – Wire and Cable Connector

The Vinyl Insulated Butt Splice Connector 2 AWG by Morris Products is designed for secure electrical wire splicing in various applications, suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections. This connector provides a durable and corrosion-resistant termination option for 2 AWG wires, ensuring mechanical and electrical integrity in switchgear and wiring systems.

Specifications

• Material: Tubular Copper
• Finish: Electro-Tin Plated
• Insulation Type: Vinyl
• Color: Red
• Wire Range: 2 AWG
• Temperature Rating: 75°C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 170 Amps
• Length: 2.165 inches (55 mm)
• Diameter: 0.61 inches (15.5 mm)
• Inner Diameter: 0.374 inches (9.5 mm)
• Product Weight: 0.0710 lbs
• UPC: 601986121347
• Manufacturer Part #: 12134
• Certifications: UL, cUL, RoHS Compliant

Features

• Color-coded insulation for easy identification
• Manufactured from high-strength tubular copper alloy
• Electro-tin plated surface for enhanced corrosion resistance
• Easy entry expanded insulation reduces strand hang-up and improves crimping reliability
• Wire range clearly stamped on the surface for quick interpretation
• Funneled barrel and flared insulation sleeve provide excellent contact and mechanical stress relief at the insulation and barrel junction

Downloads & Links

• Spec Sheet
