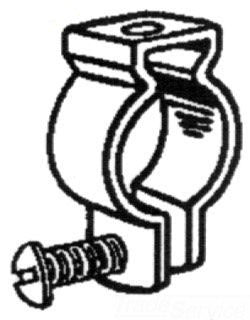

VICTOR SPECIALTIES 18402-S 3/4 EMT HANGER – Steel Conduit Support

The VICTOR SPECIALTIES 18402-S 3/4 EMT HANGER is a steel conduit hanger designed for secure mounting and support of 3/4 inch Electrical Metallic Tubing (EMT). Manufactured by Victor Specialties, this hanger is suitable for electrical distributors and contractors requiring reliable conduit support solutions within lighting, wire and cable, and switchgear installations.

Specifications

• Material: Steel (.062 thickness standard, .048 steel for some parts)
• Conduit Diameter Compatibility: 3/4 inch EMT (Thin Wall Conduit)
• Mounting Hole Diameter: 9/32 inch
• Clamping Hole Diameter: 9/32 inch
• Weight: 9.0 lbs (per carton)
• Pieces per Box: 100
• Pieces per Carton: 100
• Manufacturer Part Number: 18402-S
• UPC: 010399184021

Features

• Constructed of durable steel for long-lasting performance
• Designed with 9/32 inch mounting and clamping holes for secure installation
• Includes one square hole for 1/4 inch carriage bolt attachment
• Suitable for use with 3/4 inch EMT conduit in electrical wiring and lighting systems
• Available with nuts and bolts assembled for ease of installation
• All parts also available in stainless steel for corrosion resistance (as noted in catalog)

Downloads & Links

• Spec Sheet
